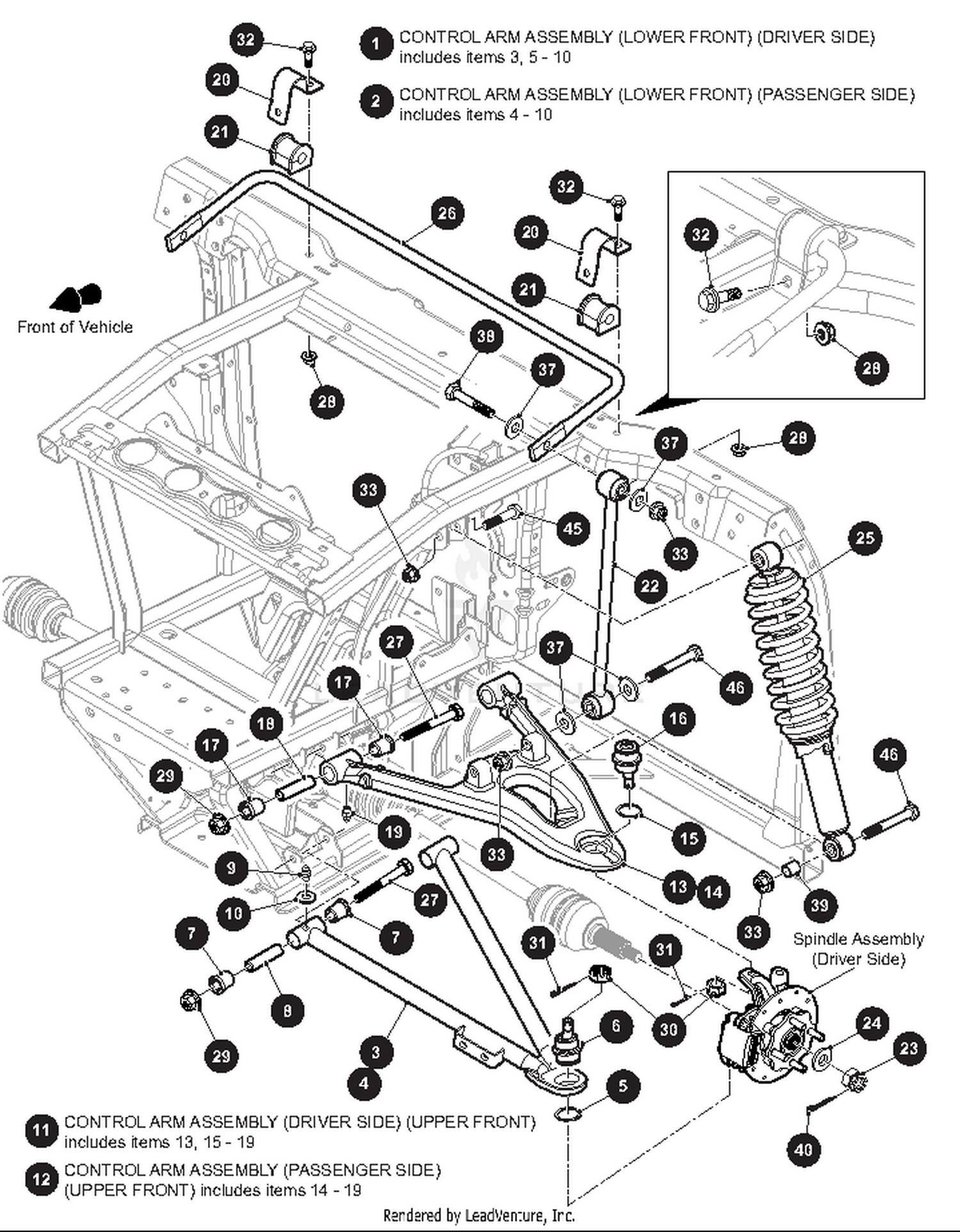

| Ref | Part Number | Description |
|---|
| 1 |
639607G01 |
OBS-A-ARM,FRT,LWR,LH-ASSY Not Available Price: |
| 2 |
639607G02 |
OBS - A-ARM,FRT,LWR,RH-ASSY Price: $107.95 |
| 3 |
633912G1390 |
A-ARM,FRNT,LWR,LH,BLACK-WLD This part replaces 633912G01. Price: $73.95 |
| 4 |
633912G02 |
OBS - A-ARM,FRNT,LWR,RH-WLD (Fabricated) Price: $119.95 |
| 5 |
634376 |
SNAP RING,EXTERNAL,32 MM Price: $1.24 |
| 6 |
635130 |
BALL JOINT,M12x1.25 Price: $29.91 |
| 7 |
647320 |
BUSHING,FLANGED,15.875MM ID Price: $3.99 |
| 8 |
647322G01 |
TUBE,10.54MM,ID,X60.95 LONG Price: $3.78 |
| 9 |
654868G01 |
ZERK,STRAIGHT,1/4-28 THDFMG Price: $0.69 |
| 10 |
655130 |
WASHER,FLAT,M6,PER DIN 125A Price: $0.63 |
| 11 |
639615G01 |
A-ARM,FRONT,UPPER-ASSY Price: $212.95 |
| 12 |
639615G02 |
A-ARM,FRONT,UPPER-ASSY Not Available Price: |
| 13 |
643488G01 |
A-ARM,FRONT,UPPER,LH Price: $137.95 |
| 14 |
643488G02 |
A-ARM,FRONT,UPPER,RH Price: $148.95 |
| 15 |
634376 |
SNAP RING,EXTERNAL,32 MM Price: $1.24 |
| 16 |
635130 |
BALL JOINT,M12x1.25 Price: $29.91 |
| 17 |
647320 |
BUSHING,FLANGED,15.875MM ID Price: $3.99 |
| 18 |
647322G01 |
TUBE,10.54MM,ID,X60.95 LONG Price: $3.78 |
| 19 |
654868G01 |
ZERK,STRAIGHT,1/4-28 THDFMG Price: $0.69 |
| 20 |
648453 |
OBS - BRACKET, SWAY BAR BUSHING, FRONT Price: $13.07 |
| 21 |
647988 |
BUSHING,SWAY BAR Price: $9.61 |
| 22 |
634391 |
OBS-LINK,FRNT STAB-BAR Price: $44.95 |
| 23 |
653662 |
NUT,CASTLE,M18X1.5MM,DIN935 Price: $13.76 |
| 24 |
653546 |
WASHER,HARDENED,M18,DIN 125 Price: $3.63 |
| 25 |
652617 |
SHOCK,50.8MM BODY,FRONT Price: $278.34 |
| 26 |
633728 |
STABILIZER BAR,FRONT Price: $173.95 |
| 27 |
648282 |
HHCS,M10X1.5X85MM Price: $1.73 |
| 28 |
600525 |
LOCK NUT, M10-1.5 Price: $1.99 |
| 29 |
648753 |
NUT,FLHD,PLSLK,M10 X 1.5,PC8 Price: $1.58 |
| 30 |
608005 |
CASTLE NUT M12-1.25 Price: $2.99 |
| 31 |
10387G2 |
COTTER PIN, .094X1.00 Price: $0.99 |
| 32 |
603799 |
FLANGED HEX HEAD BOLT, M10-1.5X25 Price: $1.99 |
| 33 |
648198 |
NUT, PLS, LK, M12-1.75 Price: $2.03 |
| 37 |
603182 |
WASH,FLAT,M12,13.5X32X3 Price: $6.99 |
| 38 |
01066G05 |
HHCS,M12 X 1.75 X 70MM Price: $2.18 |
| 39 |
646314 |
SPACER,SHOCK MTG Price: $4.47 |
| 40 |
00798G8 |
COTTER PIN, 5/32 X 1 3/4 Price: $1.99 |
| 45 |
01066G04 |
HHCS,M12X1.75X60MM Not Available Price: |
