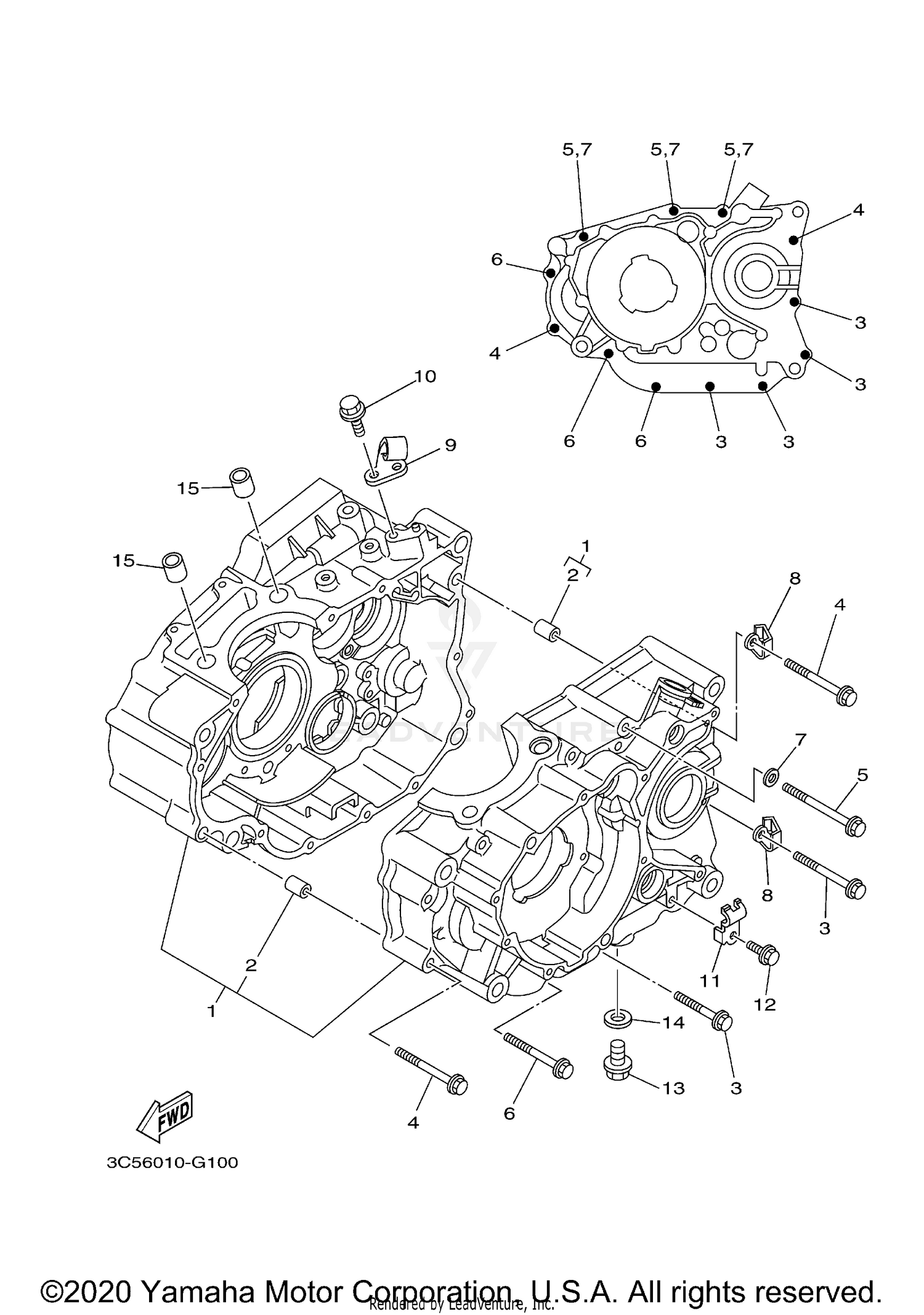

CRANKCASE
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3C5-15100-03-00 | CRANKCASE ASSY Price: $604.99 |
| 2 | 99530-10114-00 | PIN, DOWEL Price: $2.65 |
| 3 | 95024-06045-00 | BOLT, FLANGE (SMALL HEAD) Price: $10.49 |
| 4 | 95024-06060-00 | BOLT, FLANGE (SMALL HEAD) Price: $3.35 |
| 5 | 95024-06070-00 | BOLT, FLANGE (SMALL HEAD) Price: $3.30 |
| 6 | 95024-06055-00 | BOLT, FLANGE (SMALL HEAD) Price: $8.49 |
| 7 | 90430-06014-00 | GASKET Price: $8.60 |
| 8 | 90462-08225-00 | CLAMP Price: $9.49 |
| 9 | 5XT-15441-10-00 | HOLDER, CLUTCH CABLE Price: $8.49 |
| 10 | 95817-06016-00 | BOLT, FLANGE This part replaces 95812-06016-00. Price: $1.95 |
| 11 | 90462-10043-00 | CLAMP Price: $12.49 |
| 12 | 95022-06010-00 | BOLT, FLANGE Price: $6.49 |
| 13 | 90340-12006-00 | PLUG, STRAIGHT SCREW This part replaces 90340-12059-00. Price: $4.55 |
| 14 | 90430-12213-00 | GASKET Price: $6.49 |
