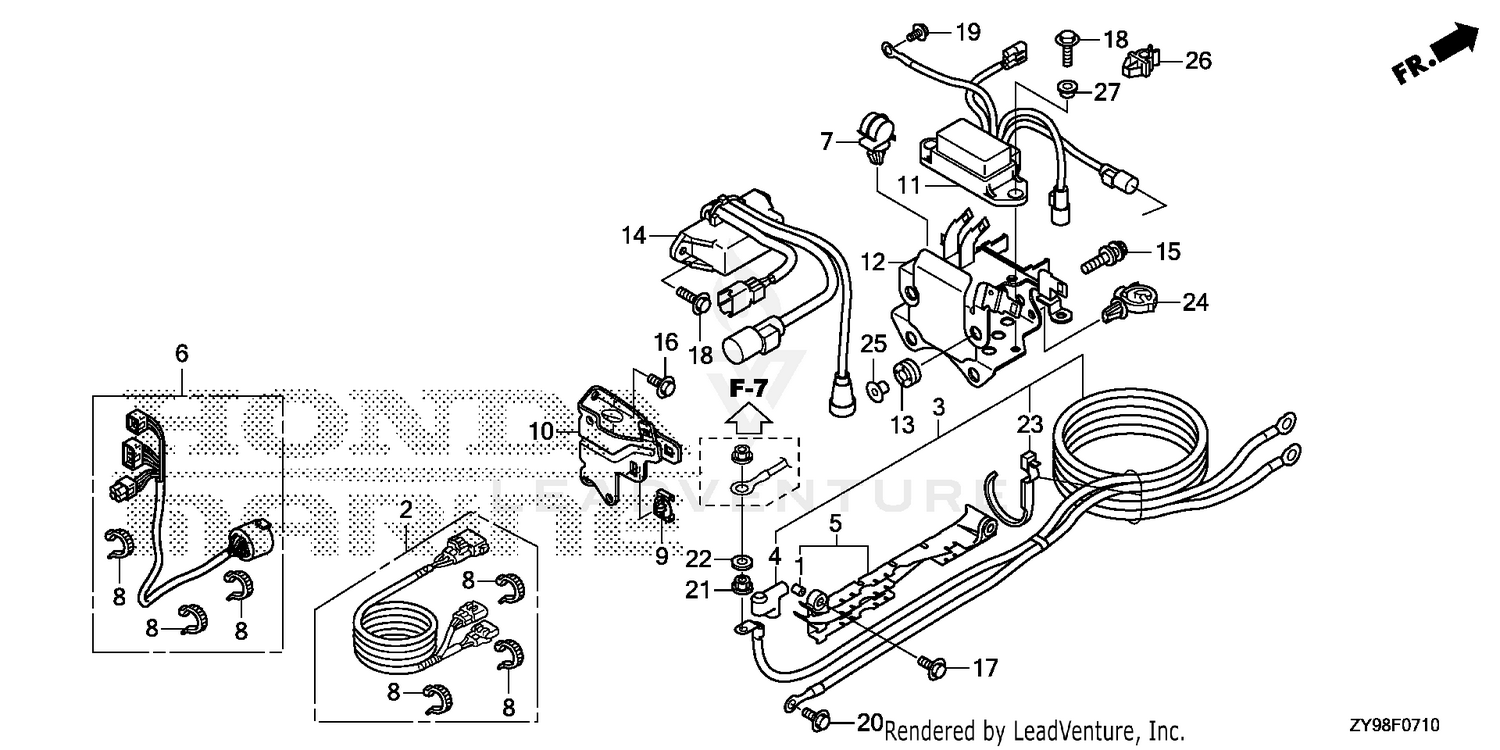

| Ref | Part Number | Description |
|---|
| 1 |
17202-ZV5-310 |
SEE PART DETAILS - PRI; COLLAR, DISTANCE (6.5X11X7.5) Price: $3.02 |
| 1 |
17202-ZY9-M01 |
COLLAR, DISTANCE (6.5X11X7.5) Price: $3.12 |
| 3 |
32410-ZY9-000 |
CABLE ASSY., STARTER Price: $525.08 |
| 4 |
32411-ZY3-003 |
COVER, STARTER TERMINAL Price: $18.20 |
| 5 |
32418-ZY9-000 |
HOLDER, STARTER CABLE Price: $44.88 |
| 5 |
32418-ZY9-030 |
HOLDER COMP Price: $47.18 |
| 7 |
32660-MJ6-710 |
CLAMP, WIRE Price: $4.70 |
| 9 |
38216-ZY3-003 |
CLIP, CONNECTOR HOLDER (B) Price: $3.00 |
| 10 |
38217-ZY9-000 |
BRACKET, FUSE BOX Price: $17.52 |
| 10 |
38217-ZY9-010 |
BRACKET, FUSE BOX Price: $21.22 |
| 11 |
38550-ZY9-003 |
RELAY ASSY., POWER TILT Price: $406.62 |
| 12 |
38552-ZY9-000 |
BRACKET, RELAY Price: $81.14 |
| 13 |
38553-ZY9-003 |
GROMMET, RELAY BRACKET Price: $5.80 |
| 14 |
38580-ZY9-023 |
RELAY ASSY., MAIN Price: $282.54 |
| 16 |
90011-ZZ5-M01 |
BOLT, FLANGE (6X14) (CT200) Price: $1.62 |
| 17 |
90018-ZZ5-M01 |
BOLT, FLANGE (6X20) Price: $1.88 |
| 19 |
90105-ZZ5-M00 |
BOLT, FLANGE (6X12) Price: $1.50 |
| 20 |
90107-ZY3-000 |
BOLT, FLANGE (8X18) Price: $0.82 |
| 21 |
90203-ZW1-000 |
NUT-WASHER (8MM) Price: $3.16 |
| 22 |
90405-ZY3-000 |
WASHER, PLAIN (8MM) Price: $0.90 |
| 23 |
90651-KV6-003 |
BAND, WIRE (165MM) (BLACK) Price: $4.38 |
| 24 |
90683-SA0-003 |
CLIP, WIRE HARNESS (25MM) (Honda Code 1226265). Price: $12.48 |
| 26 |
91531-SZ5-003 |
CLIP, TUBE (3.5) Price: $5.80 |
