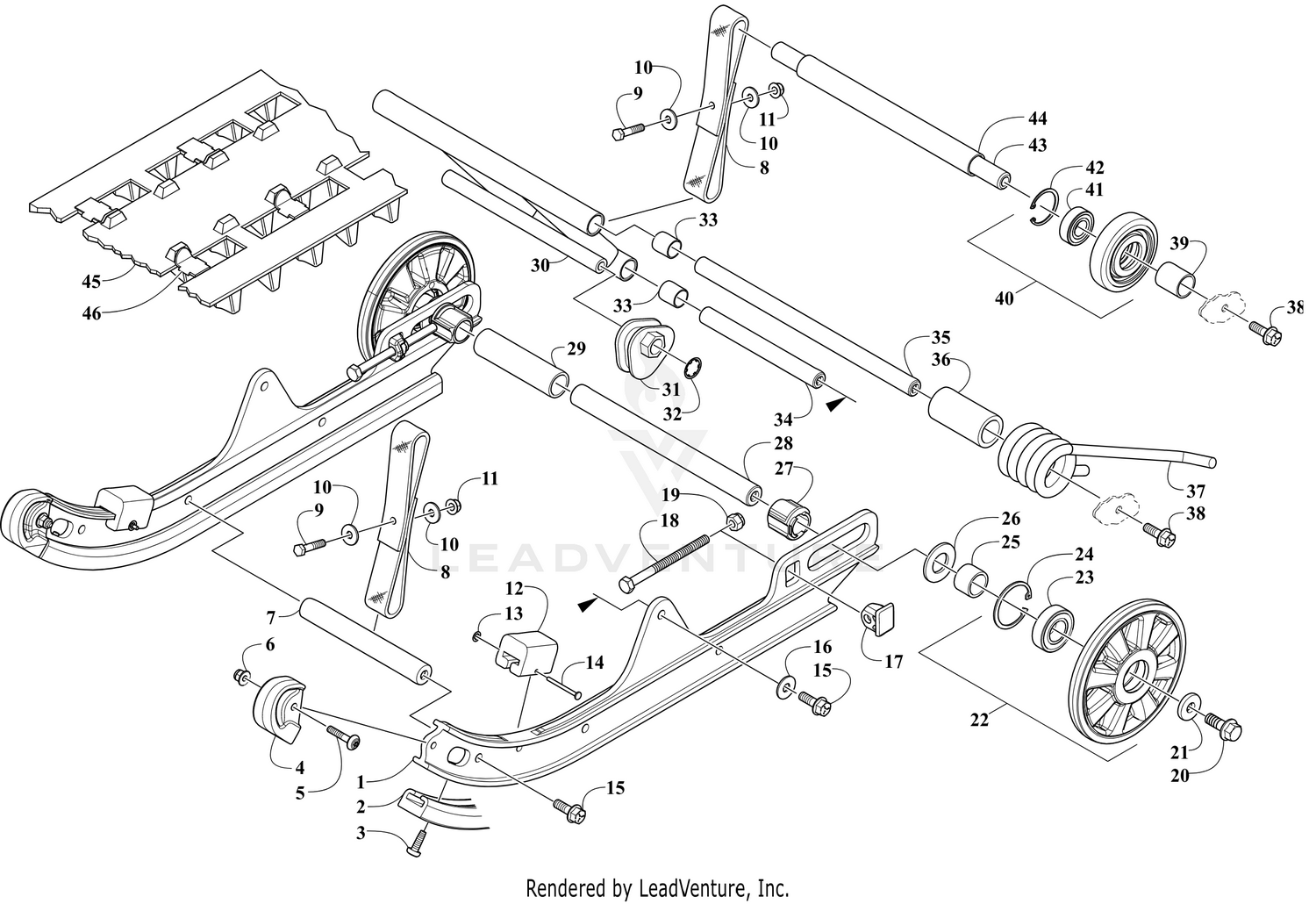

REAR SUSPENSION ARM ASSEMBLY [110701]

Parts (45)

Ref	Part Number	Description
0	4704-276	Complete Skid Frame Assembly Price: Call Us
1	4704-275	Rail, Formed - Black Price: $120.95
2	4604-552	Wearstrip - Black Price: $10.44
3	2623-315	Screw, Machine Price: $0.81
4	4604-093	End Cap, Slide Rail Price: $7.08
5	8476-630	Screw, Machine Price: $1.18
6	8427-602	Nut, Hex Price: $0.23
7	4604-276	Axle, Cross Brace Price: $24.95
8	1604-708	Strap, Limiter Price: $28.95
9	8002-043	Screw, Cap Price: $0.70
10	8050-222	Washer Price: $0.70
11	8047-366	Nut, Lock Price: $0.46
12	0104-631	Pad, Shock Price: $7.08
13	0423-090	NUT,PRESS ON (PUSHNUT)-1/8 STUD Price: $0.46
14	0123-767	Rivet, Solid Price: $1.07
15	1623-566	Screw, Cap Price: $1.77
16	8050-252	WASHER,FLAT- 5/16 X .875 X .063 Z&Y Price: $0.70
17	3604-647	Adjuster, Track Price: $3.80
18	1623-682	Screw, Cap Price: $2.99
19	8422-802	Nut, Lock Price: $0.46
20	1623-427	Screw, Cap Price: $2.13
21	0623-664	Washer Price: $1.30
23	3604-033	Bearing Price: $13.95
24	0623-946	Ring, Retaining Price: $2.26
25	4604-484	Spacer Price: $5.23
26	0623-921	Washer Price: $1.77
27	3604-934	Spacer Price: $8.27
28	3604-542	Axle, Rear Price: $41.95
29	4604-483	Spacer Price: $5.94
30	3704-655	Arm, Front Price: $105.95
31	1604-204	Block, Spring Adjuster - Right - Black Price: $20.19
31	1604-205	Block, Spring Adjuster - Left - Black Price: $20.19
32	0623-138	Ring, Retaining Price: $0.70
33	0603-083	Bearing Price: $4.79
34	4604-482	Axle, Arm - Lower Price: $15.42
35	3604-605	Axle, Idler Price: $36.95
36	3602-236	Spacer Price: $3.67
37	3704-172	Spring, Suspension - Right Price: $71.95
37	3704-173	Spring, Suspension - Left Price: $71.95
38	8020-131	Screw, Cap Price: $1.77
39	1604-565	Spacer Price: $4.99
41	4604-414	Bearing Price: $24.95
42	2623-269	Ring, Retaining Price: $0.70
43	3604-605	Axle, Idler Price: $36.95
44	1604-564	Spacer Price: $19.00
