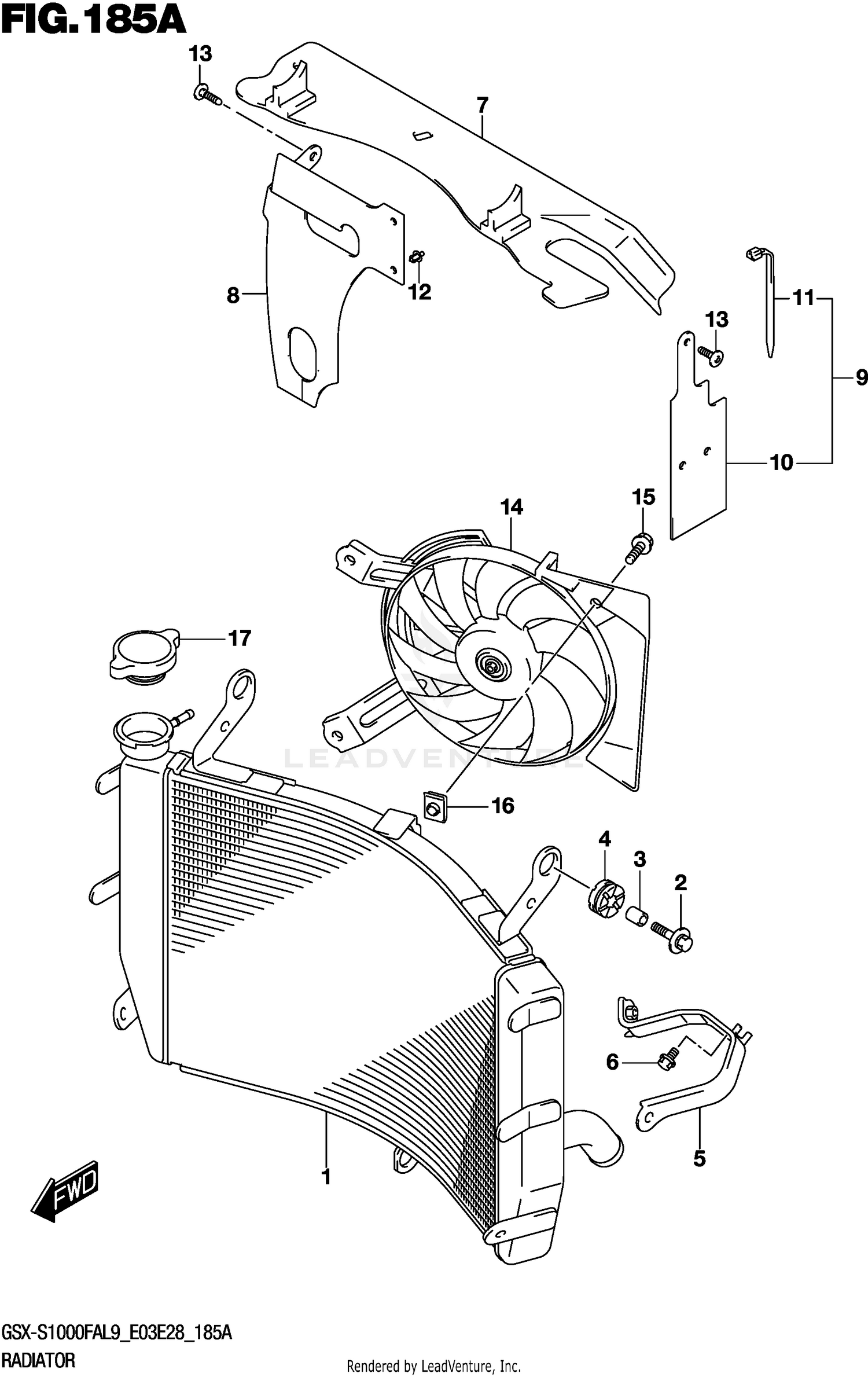

RADIATOR
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 17710-04K00 | RADIATOR ASSY,WATER Price: $954.35 |
| 2 | 09118-06097 | BOLT (6X25) Price: $3.02 |
| 3 | 09180-06290 | SPACER (6.5X10X12) Price: $2.45 |
| 4 | 09320-10051 | CUSHION Price: $3.80 |
| 5 | 17760-04K00 | BRACKET,RADIATOR LOWER Price: $21.01 |
| 6 | 01550-0612A | BOLT Price: $2.37 |
| 7 | 17771-04K00 | SHIELD,RADIATOR HEAT Price: $51.17 |
| 9 | 17770-04K00 | SHIELD ASSY,RADIATOR HEAT LH Price: $18.37 |
| 11 | 09407-19401 | CLAMP (L:190) Price: $3.22 |
| 12 | 09409-06314-5PK | CLIP This part replaces 09409-06314. Price: $3.23 |
| 13 | 09409-06315 | CLIP Price: $1.66 |
| 14 | 17800-48K00 | FAN ASSY, RADIATOR This part replaces 17800-04K00. Price: $482.34 |
| 15 | 01550-0616A | BOLT Price: $2.37 |
| 16 | 17802-14F00 | NUT,RADIATOR FAN Price: $4.29 |
