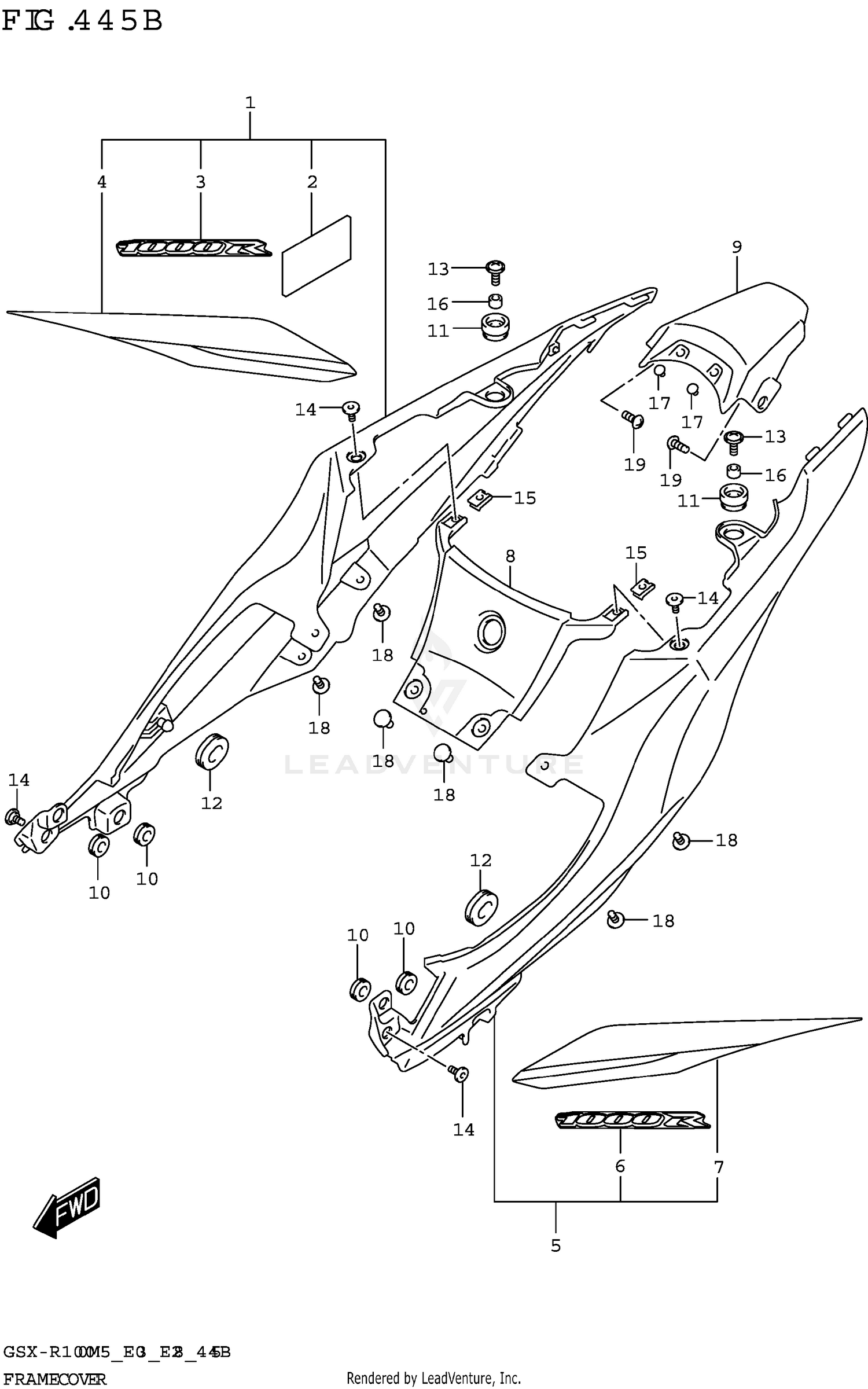

FRAME COVER (GSX-R1000RA)
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 33652-17K10 | CUSHION (45X100X3) Price: $4.20 |
| 8 | 47311-17K00 | COVER,FRAME CENTER FRONT Price: $33.13 |
| 9 | 47411-17K00-YVB | COVER,FRAME CTR RR (BLACK) Price: $75.97 |
| 10 | 44173-14J00 | CUSHION,FUEL TANK COVER SIDE Price: $5.29 |
| 12 | 94478-14J00 | CUSHION Price: $7.31 |
| 13 | 09139-06139 | SCREW (6X16) Price: $3.93 |
| 14 | 09139-05092 | SCREW (5X13) Price: $2.70 |
| 15 | 09148-05052 | NUT (M5) Price: $4.10 |
| 16 | 09180-06283 | SPACER (6.5X10X7) Price: $2.30 |
| 17 | 09250-06017 | PLUG (OD:10) Price: $3.20 |
| 18 | 09409-06328 | CLIP Price: $3.93 |
