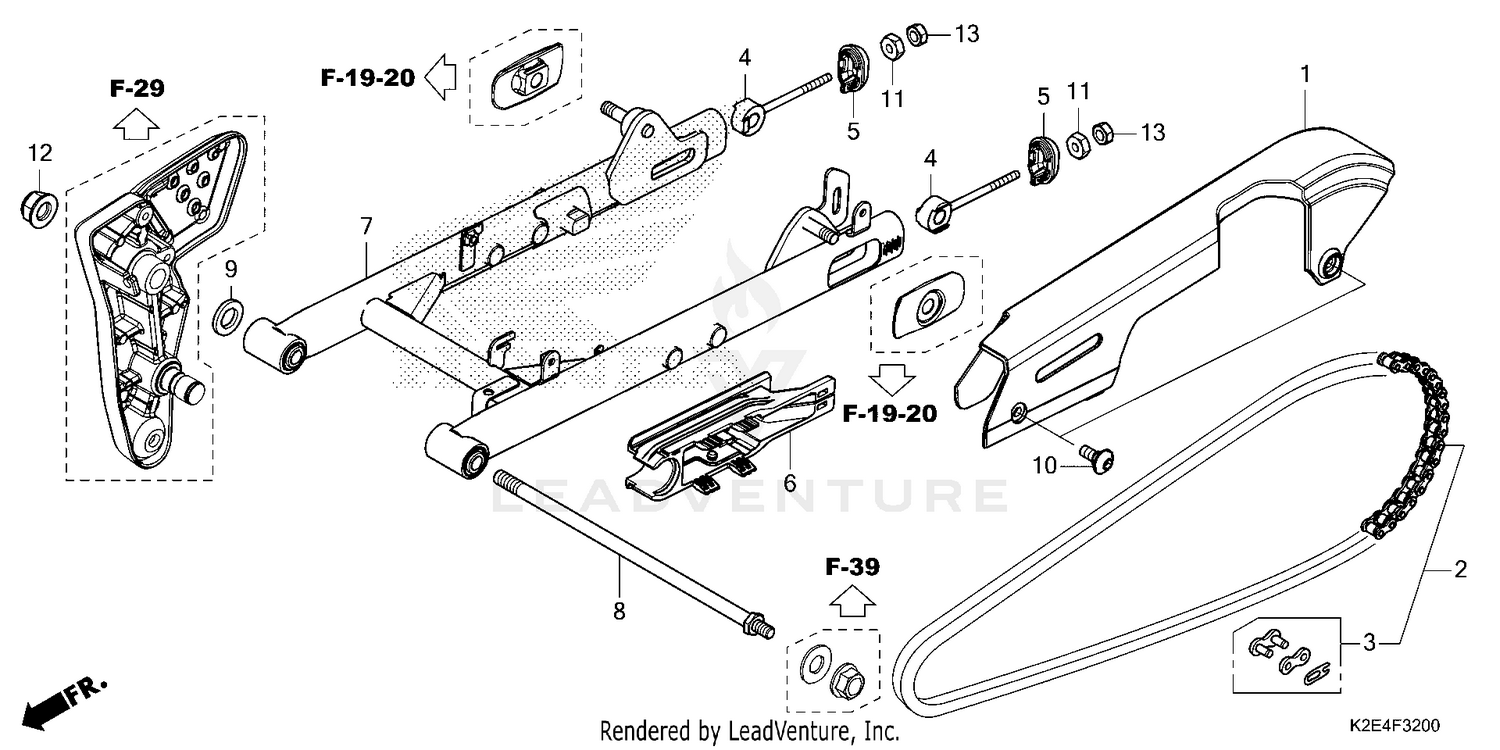

| Ref | Part Number | Description |
|---|
| 1 |
40510-K2E-T00 |
CASE, DRIVE CHAIN Price: $40.00 |
| 2 |
40530-K2E-T01 |
CHAIN, DRIVE (DID428HDS3-108RB) (DAIDO) Price: $34.56 |
| 3 |
40531-KTA-911 |
MASTER LINK (DAIDO) Price: $7.78 |
| 4 |
40543-K0G-900 |
ADJUSTER, CHAIN Price: $11.44 |
| 5 |
40546-K0G-900 |
CAP, SWINGARM END Price: $11.93 |
| 6 |
52170-K0G-900 |
SLIDER, CHAIN Price: $21.09 |
| 7 |
52200-K2E-T00ZB |
SWINGARM SUB-ASSY., RR. *R354* (GLOWING RED) Price: $196.94 |
| 8 |
90121-K2E-T00 |
BOLT, SWINGARM PIVOT Price: $8.42 |
| 9 |
90122-KWB-600 |
WASHER, PIVOT BOLT Price: $0.80 |
| 10 |
90133-KPP-T00 |
SCREW, PAN (6X14) Price: $1.45 |
| 11 |
90302-KZV-J00 |
NUT, SPECIAL (6MM) Price: $1.47 |
| 12 |
90306-KWN-701 |
NUT, U (12MM) Price: $5.09 |
| 13 |
94001-06200-0S |
NUT, HEX. (6MM) This part replaces 94001-06000-0S. Price: $1.37 |
