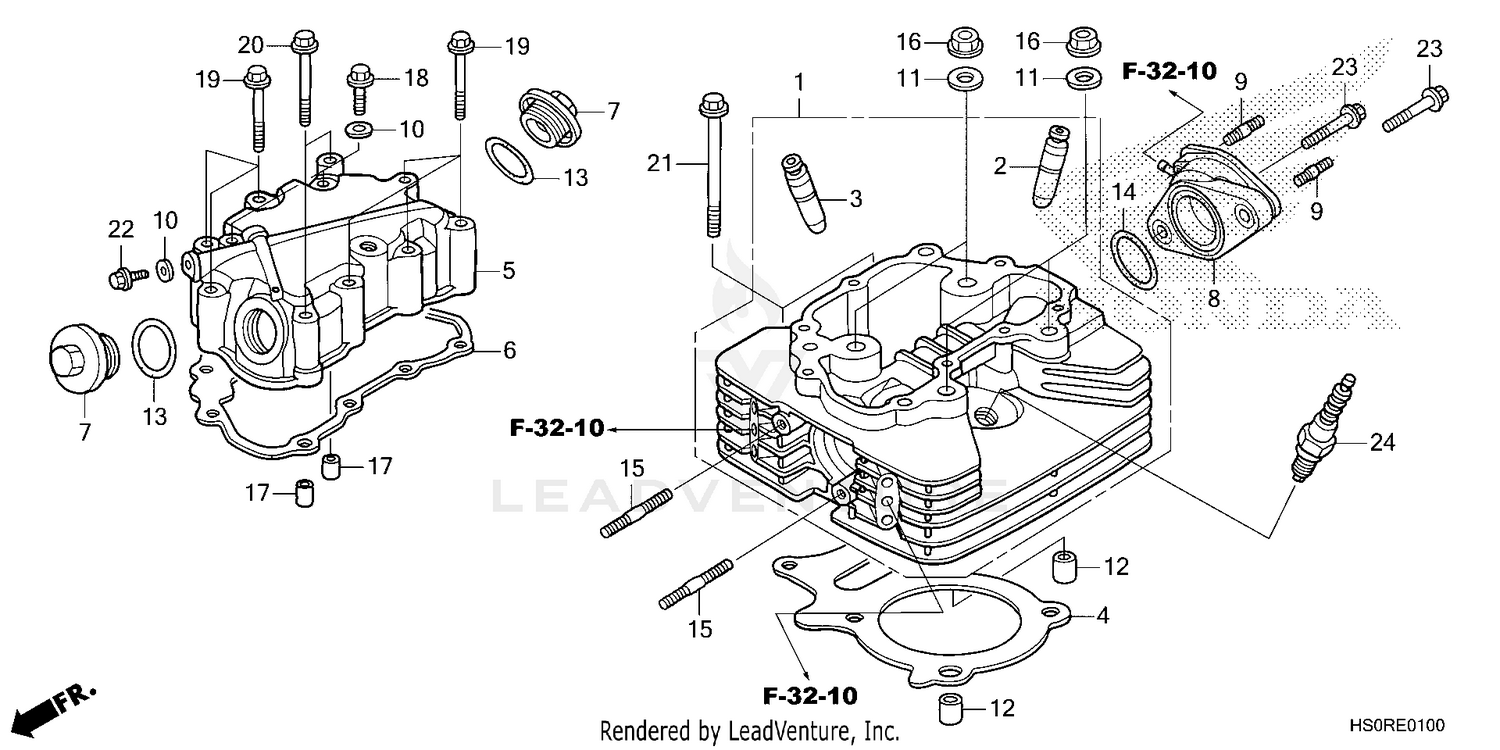

| Ref | Part Number | Description |
|---|
| 1 |
12200-HS0-A00 |
CYLINDER HEAD Price: $757.39 |
| 2 |
12204-HM8-306 |
GUIDE, VALVE (OVER SIZE) Price: $19.04 |
| 3 |
12205-HM8-306 |
GUIDE, EX. VALVE (OVER SIZE) Price: $19.04 |
| 4 |
12251-HN6-000 |
GASKET, CYLINDER HEAD Price: $24.56 |
| 5 |
12310-HN6-010 |
COVER, CYLINDER HEAD Price: $184.82 |
| 6 |
12315-HN6-010 |
GASKET, HEAD COVER Price: $21.60 |
| 7 |
12361-300-000 |
CAP, VALVE ADJ. This part replaces 12361-035-000. Price: $12.40 |
| 8 |
16210-HS0-A00 |
INSULATOR, CARBURETOR Price: $56.16 |
| 9 |
90011-HM8-000 |
BOLT, STUD (6X18) Price: $4.29 |
| 10 |
90441-706-000 |
WASHER, SEALING (6MM) Price: $1.46 |
| 11 |
90465-MC4-000 |
WASHER (8MM) Price: $2.87 |
| 12 |
94301-10140 |
PIN A, DOWEL (10X14) This part replaces 90703-HC4-000. Price: $2.58 |
| 13 |
91302-001-020 |
O-RING (30.8MM) (Honda Code 0001065) Price: $4.70 |
| 14 |
91305-HA0-680 |
O-RING (33.7X2.4) Price: $10.49 |
| 15 |
92900-08025-0B |
BOLT, STUD (8X25) Price: $2.30 |
| 16 |
94050-08000 |
NUT, FLANGE (8MM) NUT, FLANGE (10MM) Price: $0.98 |
| 17 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 18 |
95701-06025-00 |
BOLT, FLANGE (6X25) Price: $1.88 |
| 19 |
95701-06055-00 |
BOLT, FLANGE (6X55) Price: $2.27 |
| 20 |
95701-06065-00 |
BOLT, FLANGE (6X65) (Honda Code 2552545) Price: $1.73 |
| 21 |
95701-06100-00 |
BOLT, FLANGE (6X100) Price: $3.17 |
| 22 |
96001-06012-00 |
BOLT, FLANGE (6X12) Price: $1.88 |
| 23 |
96001-06025-00 |
BOLT, FLANGE (6X25) Price: $2.20 |
| 24 |
98069-58916 |
SPARK PLUG (DPR8EA-9) (NGK) Price: $2.91 |
| 24 |
98069-58926 |
SPARK PLUG (X24EPR-U9) (DENSO) Price: $2.80 |
