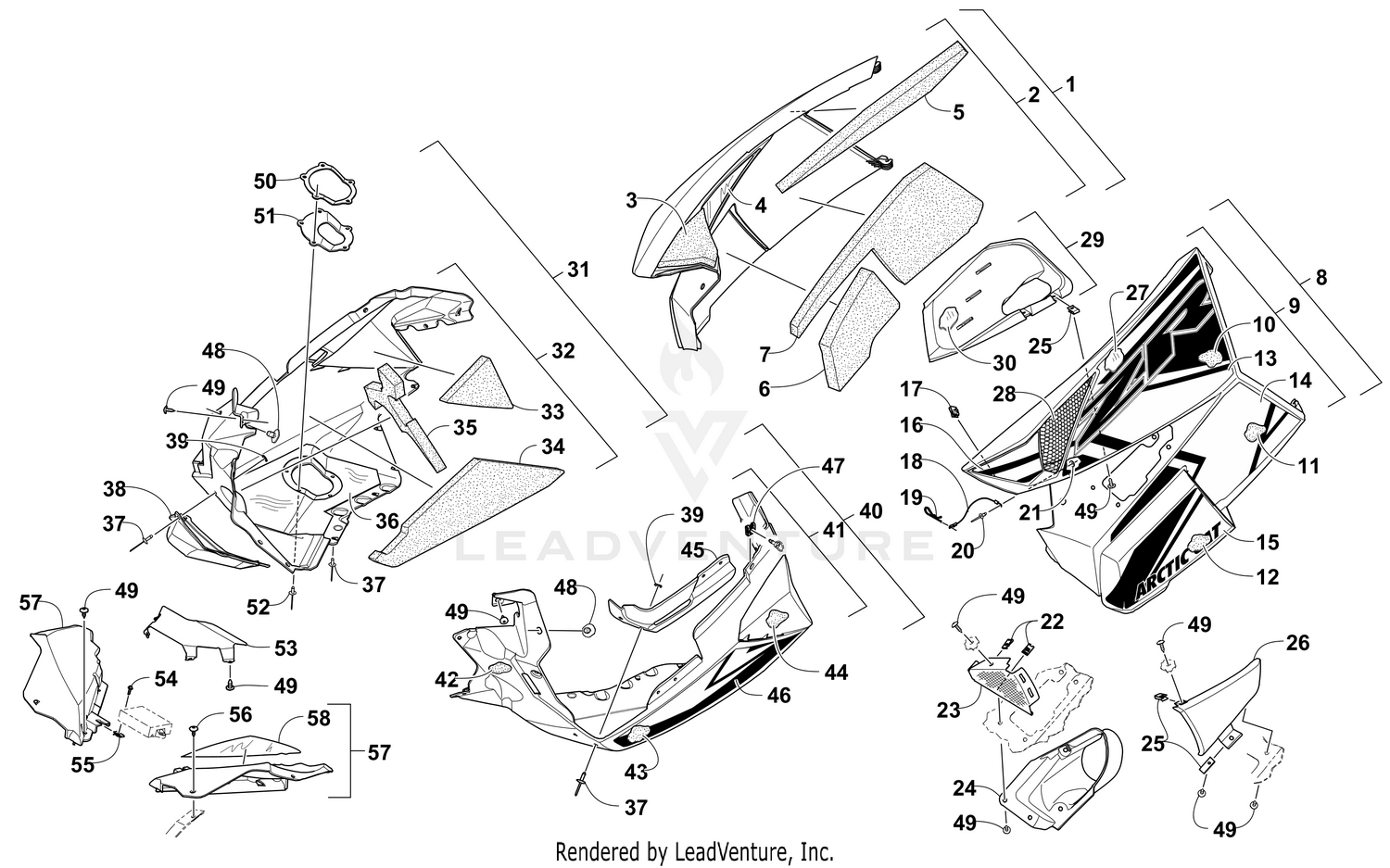

SKID PLATE AND SIDE PANEL ASSEMBLY [103600]

Parts (51)

Ref	Part Number	Description
3	0617-626	Foam, Side Panel - Upper Front - Right Price: $5.09
4	6606-414	Foil, Protective Price: $17.95
5	0617-628	Foam, Side Panel - Upper Rear - Right Price: $45.95
6	0617-632	Foam, Side Panel - Lower Front - Right Price: $24.20
7	0617-634	Foam, Side Panel - Lower Rear - Right Price: $47.95
10	0617-629	Foam, Side Panel - Upper Rear - Left Price: $19.35
11	0617-635	Foam, Side Panel - Lower Rear - Left Price: $19.29
12	0617-681	Foam, Side Panel - Lower Front - Left Price: $7.23
13	2621-608	Decal, Side Panel - Upper - Right - Orange Price: $55.95
13	2621-609	Decal, Side Panel - Upper - Left - Orange Price: $55.95
14	2621-606	Decal, Side Panel - Lower Rear - Right - Orange Price: $58.95
14	2621-607	Decal, Side Panel - Lower Rear - Left - Orange Price: $41.95
15	2621-614	Decal, Side Panel - Lower Front - Right - Orange Price: $21.77
15	2621-615	Decal, Side Panel - Lower Front - Left - Orange Price: $82.95
16	2621-612	Decal, Side Panel - Upper - Front - Right - Orange Price: $6.06
16	2621-613	Decal, Side Panel - Upper - Front - Left - Orange Price: $6.06
17	1623-637	Clip, U-Nut Price: $2.61
18	0607-447	Cable Price: $11.02
19	0605-283	Clip, Hairpin Price: $2.29
20	8060-486	Rivet Price: $0.29
21	8050-127	Washer Price: $1.57
22	1623-052	Clip, U-Nut Price: $1.08
23	6606-925	Screen, Intake Price: $36.95
24	2602-794	Duct, Intake - Inner Price: $71.95
25	1623-030	Clip, U-Nut Price: $1.08
26	2602-793	Duct, Intake - Outer - Black Price: $20.56
30	6606-694	Foil, Protective Price: $1.19
33	0617-640	Foam, Skid Plate - Upper Rear - Right Price: $4.23
34	0617-638	Foam, Skid Plate - Center Front - Right Price: $17.95
35	0617-636	Foam, Skid Plate - Upper Front - Right Price: $45.95
36	2612-850	Foil, Protective Price: $12.95
37	8061-708	Rivet Price: $1.08
38	2612-754	Deflector, Heat Price: $31.95
39	0123-802	Washer Price: $0.23
42	0617-637	Foam, Skid Plate - Upper Front - Left Price: $7.95
43	0617-639	Foam, Skid Plate - Center Front - Left Price: $19.35
44	0617-641	Foam, Skid Plate - Upper Rear - Left Price: $4.72
45	6606-613	Panel, Reinforcement Price: $14.49
46	2621-620	Decal, Skid Plate - Lower Front - Right - Orange Price: $24.20
46	2621-621	Decal, Skid Plate - Lower Front - Left - Orange Price: $24.20
47	2623-005	Clip, Retaining Price: $2.91
48	6606-592	Pin, Retaining Price: $3.88
49	1623-129	Screw, Self-Tapping Price: $0.29
50	2612-796	Plate, Exhaust Outlet Price: $28.95
51	2612-795	Seal, Exhaust Outlet Price: $19.35
52	8061-710	Rivet Price: $1.20
53	6606-295	Shield, Heat - EMC Price: $20.95
54	8476-620	Screw, Machine This part replaces 8408-620. Price: $0.48
55	0423-031	Clip, U-Nut Price: $1.08
56	0623-784	Screw, Self-Tapping Price: $0.09
57	6606-342	Fascia, Front - Right - Black Price: $39.95
