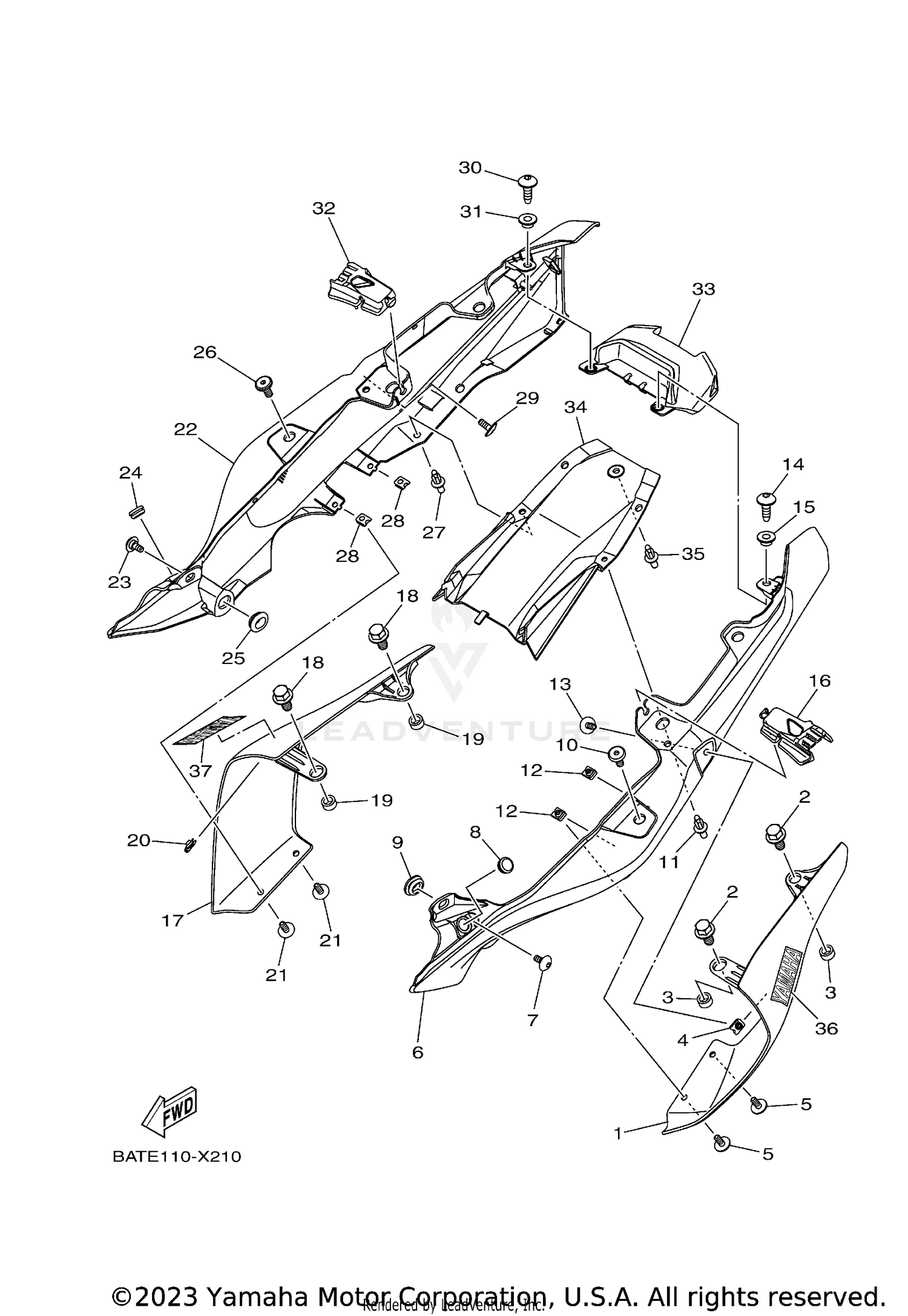

| Ref | Part Number | Description |
|---|
| 2 |
90105-08021-00 |
BOLT, FLANGE Price: $9.49 |
| 3 |
90387-08126-00 |
COLLAR Price: $9.99 |
| 4 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 5 |
90111-05003-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 6 |
B4C-2171E-00-00 |
COVER, SIDE 5 Price: $74.99 |
| 7 |
90111-05011-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 8 |
90480-14100-00 |
GROMMET Price: $9.49 |
| 9 |
90480-01559-00 |
GROMMET Price: $6.49 |
| 10 |
90109-06259-00 |
BOLT Price: $3.55 |
| 11 |
90269-06008-00 |
RIVET Price: $9.49 |
| 12 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 13 |
90111-05003-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 14 |
90167-05076-00 |
SCREW, TAPPING Price: $2.85 |
| 15 |
90387-05021-00 |
COLLAR Price: $9.49 |
| 16 |
B4C-2171L-00-00 |
MOLE, SIDE COVER 1 Price: $9.49 |
| 18 |
90105-08021-00 |
BOLT, FLANGE Price: $9.49 |
| 19 |
90387-08126-00 |
COLLAR Price: $9.99 |
| 20 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 21 |
90111-05003-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 22 |
B4C-2171X-00-00 |
COVER, SIDE 6 Price: $74.99 |
| 23 |
90111-05011-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 24 |
90480-14100-00 |
GROMMET Price: $9.49 |
| 25 |
90480-01559-00 |
GROMMET Price: $6.49 |
| 26 |
90109-06259-00 |
BOLT Price: $3.55 |
| 27 |
90269-06008-00 |
RIVET Price: $9.49 |
| 28 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 29 |
90111-05003-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 30 |
90167-05076-00 |
SCREW, TAPPING Price: $2.85 |
| 31 |
90387-05021-00 |
COLLAR Price: $9.49 |
| 32 |
B4C-2171M-00-00 |
MOLE, SIDE COVER 2 Price: $9.49 |
| 33 |
B4C-2172X-00-00 |
COVER, TAILLIGHT Price: $22.99 |
| 34 |
BAT-21651-00-00 |
COVER, REAR FENDER Price: $48.99 |
| 35 |
90269-06008-00 |
RIVET Price: $9.49 |
