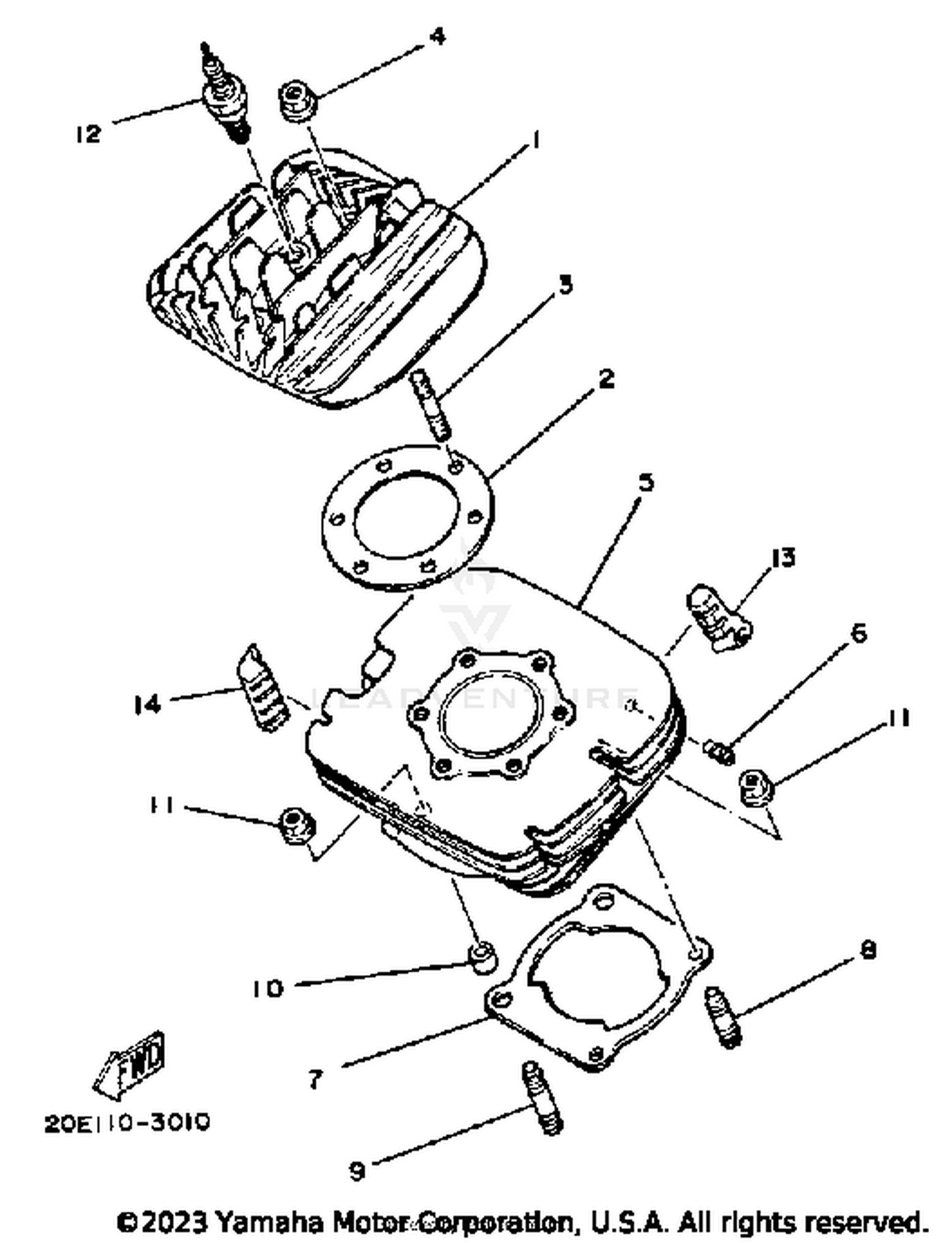

CYLINDER
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 20E-11111-00-00 | HEAD,CYLINDER 1 Price: $115.99 |
| 2 | 5V7-11181-00-00 | GASKET,CYL HEAD 1 Price: $35.99 |
| 3 | 90116-08393-00 | BOLT,STUD Price: $4.45 |
| 4 | 95704-08500-00 | NUT, FLANGE This part replaces 95701-08500-00. Price: $9.49 |
| 5 | 20E-11311-00-00 | CYLINDER 1 Price: $397.99 |
| 6 | 137-13115-01-00 | CONNECTOR, SUCTION PIPE This part replaces 137-13115-00-00. Price: $4.99 |
| 7 | 18G-11351-02-00 | GASKET,CYLINDER This part replaces 18G-11351-01-00. Price: $8.49 |
| 8 | 90116-10278-00 | BOLT, STUD Price: $4.80 |
| 9 | 90116-10279-00 | BOLT, STUD Price: $4.80 |
| 10 | 99530-14016-00 | PIN, DOWEL A Price: $3.80 |
| 11 | 90179-10279-00 | NUT Price: $9.49 |
| 12 | BPR-7ES00-40-00 | BPR7ES NGK - 4/PACK This part replaces NGK-BP7ES-00-00. Price: $3.85 |
| 13 | 5V7-11161-00-00 | ABSORBER 1 Price: $6.04 |
