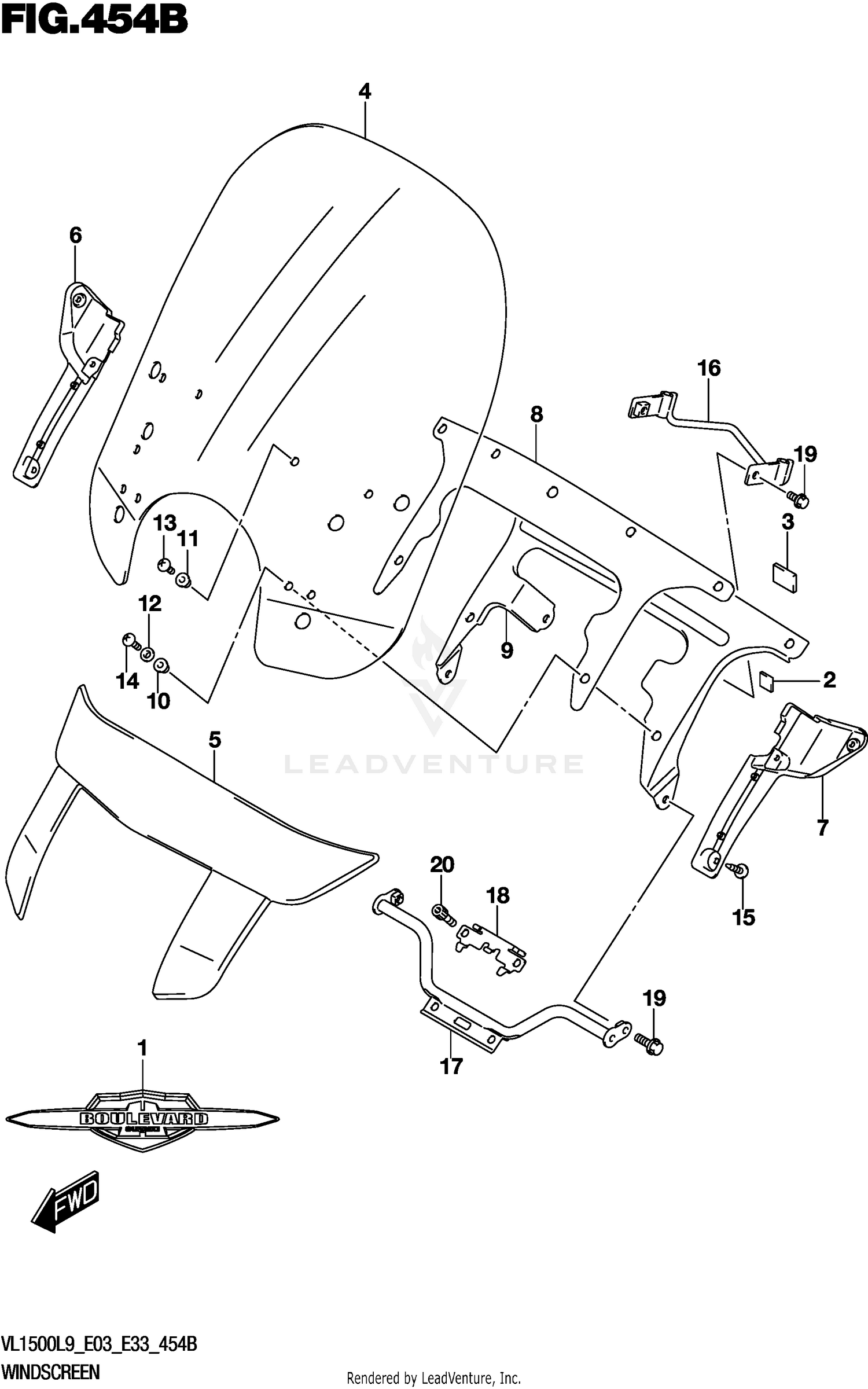

WINDSCREEN (VL1500TL9 E33)
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 68181-06J00 | EMBLEM Price: $36.33 |
| 4 | 94611-06J00 | WINDSCREEN Price: $865.07 |
| 5 | 94612-06J00 | COVER Price: $186.24 |
| 6 | 94613-06J00 | PANEL Price: $18.57 |
| 7 | 94614-06J00 | PANEL Price: $18.57 |
| 8 | 94616-06J10 | CUSHION Price: $195.48 |
| 9 | 94621-06J10 | BRACE Price: $226.54 |
| 10 | 09159-05019 | NUT (M5) Price: $8.69 |
| 11 | 09159-05048 | NUT Price: $8.92 |
| 12 | 09161-05017 | WASHER (5.2X14X1.5) Price: $3.35 |
| 13 | 02142-1516B | SCREW Price: $2.99 |
| 14 | 02142-1520B | SCREW Price: $2.73 |
| 15 | 03541-0516B | SCREW Price: $2.15 |
| 16 | 94630-06J10 | BRACE Price: $115.84 |
| 17 | 94640-06J10 | BRACE Price: $115.84 |
| 18 | 94651-06J00 | PLATE Price: $6.80 |
| 19 | 01550-0816A | BOLT Price: $2.79 |
