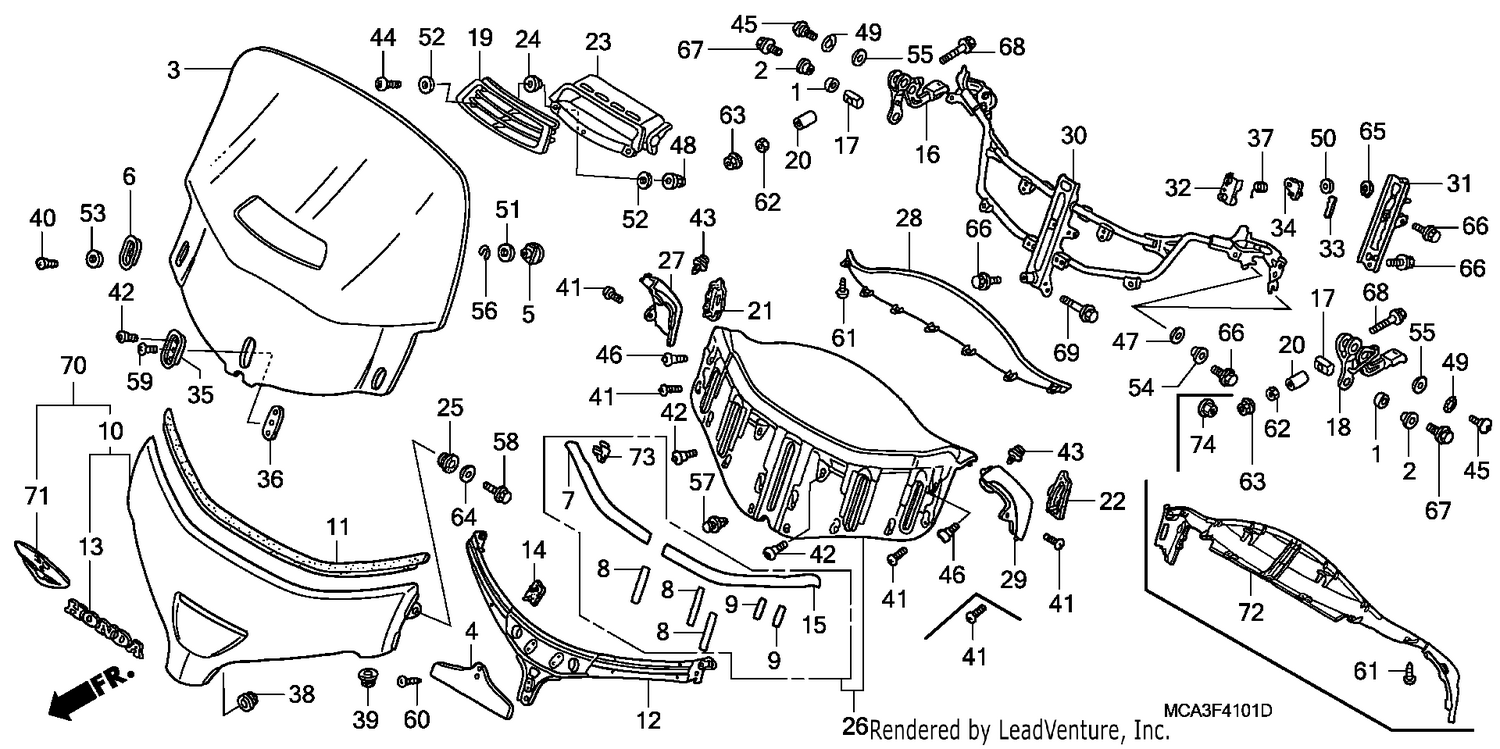

WINDSCREEN (GL1800A4/A5) (GL18006/7/8)

WINDSCREEN (GL1800A4/A5) (GL18006/7/8)

Parts (68)

RefPart NumberDescription
1 50605GZ4670 COLLAR, STEP RUBBER SETTING Price: Call Us
2 61105KM7910 COLLAR, FR. FENDER Price: Call Us
3 64100MCAA21 WINDSCREEN Price: Call Us
4 64113MCA000 COVER, GARNISH Price: Call Us
5 64114MCA000 NUT, WINDSCREEN SETTING Price: Call Us
6 64116MN5000 PLATE, WIND SCREEN SETTING Price: Call Us
7 64117MCA300 TAPE A, R. SLIDE Price: Call Us
8 64118MCA300 TAPE B, SLIDE Price: Call Us
9 64119MCA300 TAPE C, SLIDE Price: Call Us
10 64120MCAA60ZC GARNISH SET, SCREEN (WL) *R303M* Price: Call Us
10 64120MCAA60ZF GARNISH SET, SCREEN (WL) *NHA27M* Price: Call Us
11 64121MCA000 SEAL, WINDSCREEN Price: Call Us
12 64122MCA000 HOLDER, WINDSCREEN Price: Call Us
13 64125MCAA40 EMBLEM, FR. (HONDA) Price: Call Us
14 64127MCA010 RUBBER, SCREEN HOLDER Price: Call Us
15 64128MCA300 TAPE A, L. SLIDE Price: Call Us
16 64133MCAA60 LINK COMP., R. ADJUST Price: Call Us
17 64137MCA000 BRACKET, TENSIONER Price: Call Us
18 64143MCAA60 LINK COMP., L. ADJUSTING Price: Call Us
19 64150MCAA20 GRILLE, CENTER FRESH AIR Price: Call Us
20 64152MCA000 COLLAR, ADJUSTING LEVER Price: Call Us
21 64153MCAA60 RUBBER, R. ADJUSTING LEVER Price: Call Us
22 64163MCAA60 RUBBER, L. ADJUSTING LEVER Price: Call Us
23 64170MCAA21 VISOR ASSY., FRESH AIR Price: Call Us
24 64205MCAA20 GROMMET Price: Call Us
25 64246MJ4670 RUBBER, FAIRING MOUNTING Price: Call Us
26 64255MCAA60ZA VISOR A, METER PANEL *NH105* Price: Call Us
30 64511MCAA60 STAY B, UPPER COWL Price: Call Us
31 64541MCAA60 HOLDER, ADJUSTER Price: Call Us
32 64542MCA000 BODY COMP., ADJUSTER Price: Call Us
33 64543MCA000 CAM B, ADJUSTER Price: Call Us
34 64544MCA000 CAM A, ADJUSTER Price: Call Us
35 64547MCA000 HOLDER A, SCREEN Price: Call Us
36 64548MCA000 HOLDER B, SCREEN Price: Call Us
37 64549MCA000 SPRING, HOLDER Price: Call Us
38 83551GE2000 GROMMET, AIR CLEANER CASE Price: Call Us
39 83601MN5000 GROMMET, SIDE COVER Price: Call Us
40 90103HC4770 SCREW, MUDGUARD Price: Call Us
41 90104964000 SCREW, PAN, 5X12 Price: Call Us
42 90106KY2701 SCREW, PAN, 6X11 Price: Call Us
44 90118MBB000 BOLT, SPECIAL, 5X16 Price: Call Us
45 90118MCA000 SCREW, PAN, 6X11 Price: Call Us
46 90138MCA000 SCREW, PAN, 6X14 Price: Call Us
47 90148SA0000 WASHER, BUMPER BOLT Price: Call Us
48 90167SA0980 NUT, FLANGE CAP, 5MM Price: Call Us
49 90435422000 WASHER, WAVE, 10MM Price: Call Us
50 90443ZG3000 WASHER, 10.1MM Price: Call Us
51 90476703000 WASHER Price: Call Us
52 90504964000 WASHER, THRUST, 5MM Price: Call Us
53 90507921000 WASHER, NYLON, 8MM Price: Call Us
54 90512300000 WASHER, 6X20 Price: Call Us
55 90589VD6901 WASHER, THRUST, 8.6X13X0.6 Price: Call Us
56 90601473003 E-RING, 8MM Price: Call Us
57 90657SB0003 CLIP, SPLASH SHIELD Price: Call Us
58 92301060080A BOLT, RECESSED, 6X8 Price: Call Us
59 93500060080A SCREW, PAN, 6X8 Price: Call Us
60 9390324020 SCREW, TAPPING, 4X6 Price: Call Us
61 9390324380 SCREW, TAPPING, 4X12 Price: Call Us
62 94002060000S NUT, HEX., 6MM Price: Call Us
63 9405006000 NUT, FLANGE, 6MM Price: Call Us
64 9410306000 WASHER, PLAIN, 6MM Price: Call Us
65 9451010000 CIRCLIP, EXTERNAL, 10MM Price: Call Us
66 960010601200 BOLT, FLANGE, 6X12 Price: Call Us
67 960010601600 BOLT, FLANGE, 6X16 Price: Call Us
68 960010604000 BOLT, FLANGE, 6X40 Price: Call Us
69 960010604500 BOLT, FLANGE, 6X45 Price: Call Us
72 64265MCAA60ZA VISOR B, METER PANEL *NH1* Price: Call Us
73 90666S84A01 CLIP, SNAP FITTING Price: Call Us
