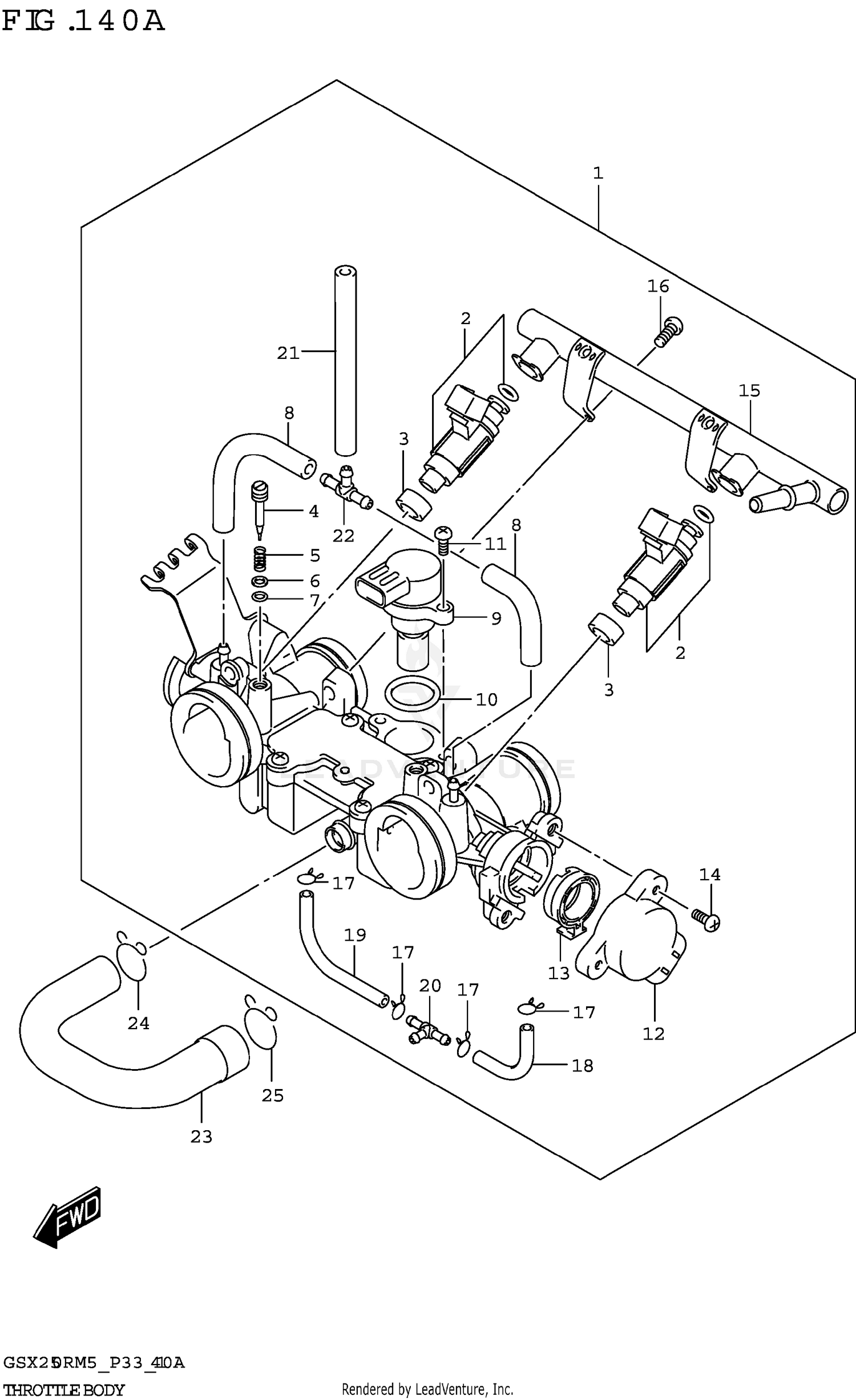

THROTTLE BODY
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 13400-48H42 | BODY ASSY,THROTTLE Price: $1,436.19 |
| 5 | 13268-48700 | SPRING,THROTTLE SCREW Price: $5.36 |
| 6 | 13606-47A00 | WASHER Price: $3.55 |
| 7 | 13295-29901 | O-RING Price: $5.36 |
| 11 | 02112-0412A | SCREW This part replaces 13602-05A40. Price: $1.50 |
| 17 | 13671-29G00 | CLIP Price: $3.24 |
| 20 | 13685-29G00 | NIPPLE Price: $9.92 |
| 21 | 13683-10F61 | HOSE (L:425) Price: $18.47 |
| 23 | 13697-48H00 | HOSE, ISC VALVE Price: $7.61 |
