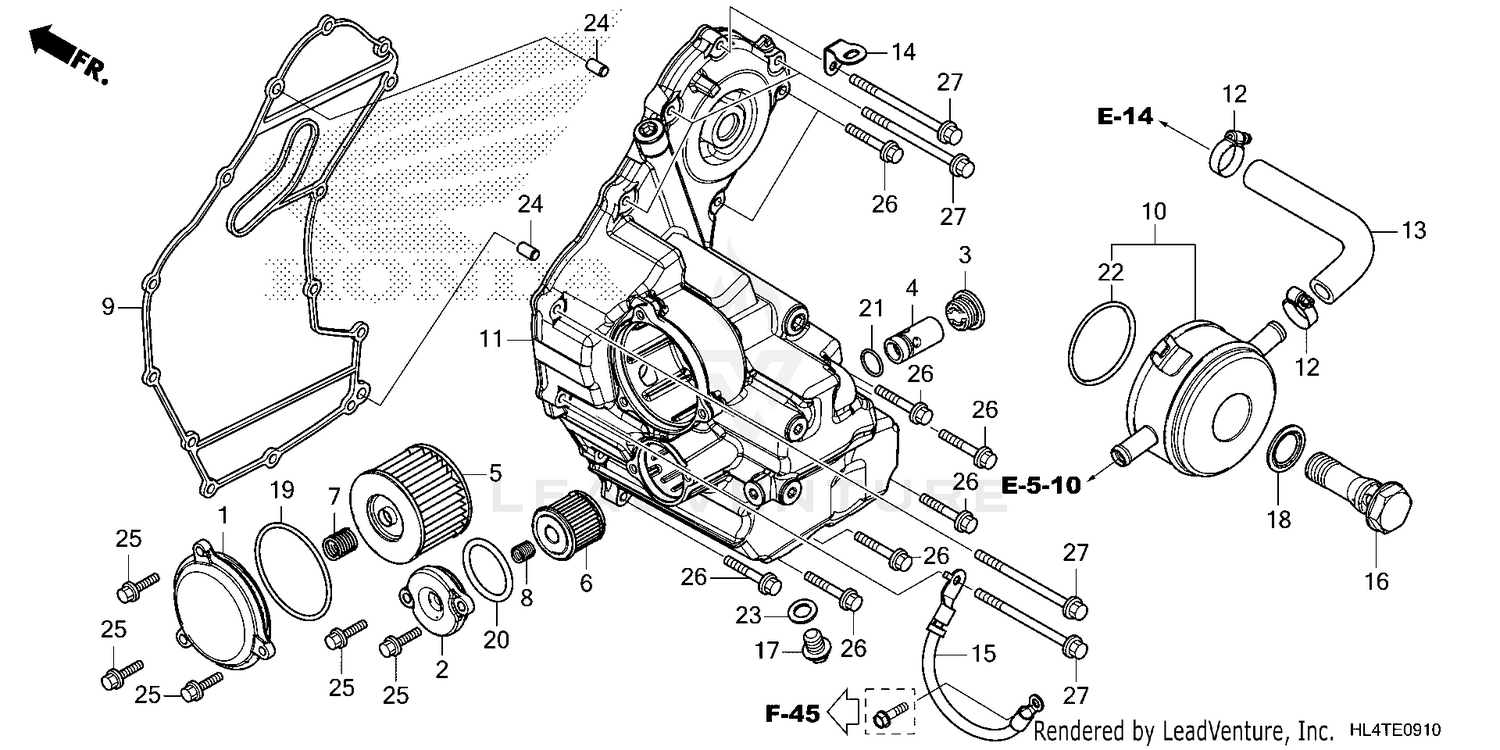

| Ref | Part Number | Description |
|---|
| 1 |
11333-HL4-000 |
COVER, OIL FILTER Price: $44.55 |
| 2 |
11337-HL4-000 |
COVER, OIL FILTER Price: $33.49 |
| 3 |
15233-MGS-D30 |
BOLT, SEALING (22MM) Price: $7.00 |
| 4 |
15240-HL4-000 |
VALVE ASSY., RELIEF Price: $45.25 |
| 5 |
15412-HP7-A01 |
ELEMENT, OIL FILTER Price: $15.13 |
| 6 |
15412-MGS-D21 |
ELEMENT, OIL FILTER Price: $10.26 |
| 7 |
15414-KF0-000 |
SPRING, OIL FILTER ELEMENT SETTING Price: $5.33 |
| 8 |
15414-MEB-670 |
SPRING, OIL FILTER Price: $3.00 |
| 9 |
15615-HL4-003 |
GASKET, OIL TANK Price: $36.00 |
| 10 |
15700-HL4-003 |
COOLER, OIL Price: $296.24 |
| 11 |
15710-HL4-B60 |
COVER, OIL TANK Price: Call Us |
| 12 |
19504-KY1-003 |
CLAMP, WATER HOSE (25MM) Price: $12.47 |
| 13 |
19521-HL4-000 |
HOSE, OIL COOLER IN. Price: $11.58 |
| 14 |
32115-HL4-B60 |
STAY A, HARNESS CLIP Price: Call Us |
| 15 |
32604-HL4-B60 |
CABLE, FRAME GROUND Price: Call Us |
| 16 |
90019-HL4-000 |
BOLT, OIL COOLER Price: $23.33 |
| 17 |
90131-896-650 |
BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000. Price: $2.76 |
| 18 |
90402-MFJ-D01 |
WASHER, SEALING (34.5MM) Price: $9.07 |
| 19 |
91301-107-000 |
O-RING (75X2.5) Price: $6.13 |
| 20 |
91302-K0G-911 |
O-RING (39.8X2.2) Price: $1.15 |
| 21 |
91313-MG7-004 |
O-RING (14.8X2.2) This part replaces 91313-MB0-003. Price: $4.62 |
| 22 |
91354-MCT-003 |
O-RING, OIL COOLER Price: $9.96 |
| 23 |
94109-12000 |
WASHER, DRAIN PLUG (12MM) Price: $1.28 |
| 24 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 25 |
95701-06018-00 |
BOLT, FLANGE (6X18) BOLT, HEX. (6X18) Price: $1.70 |
| 26 |
95701-06028-00 |
BOLT, FLANGE (6X28) Price: $1.90 |
