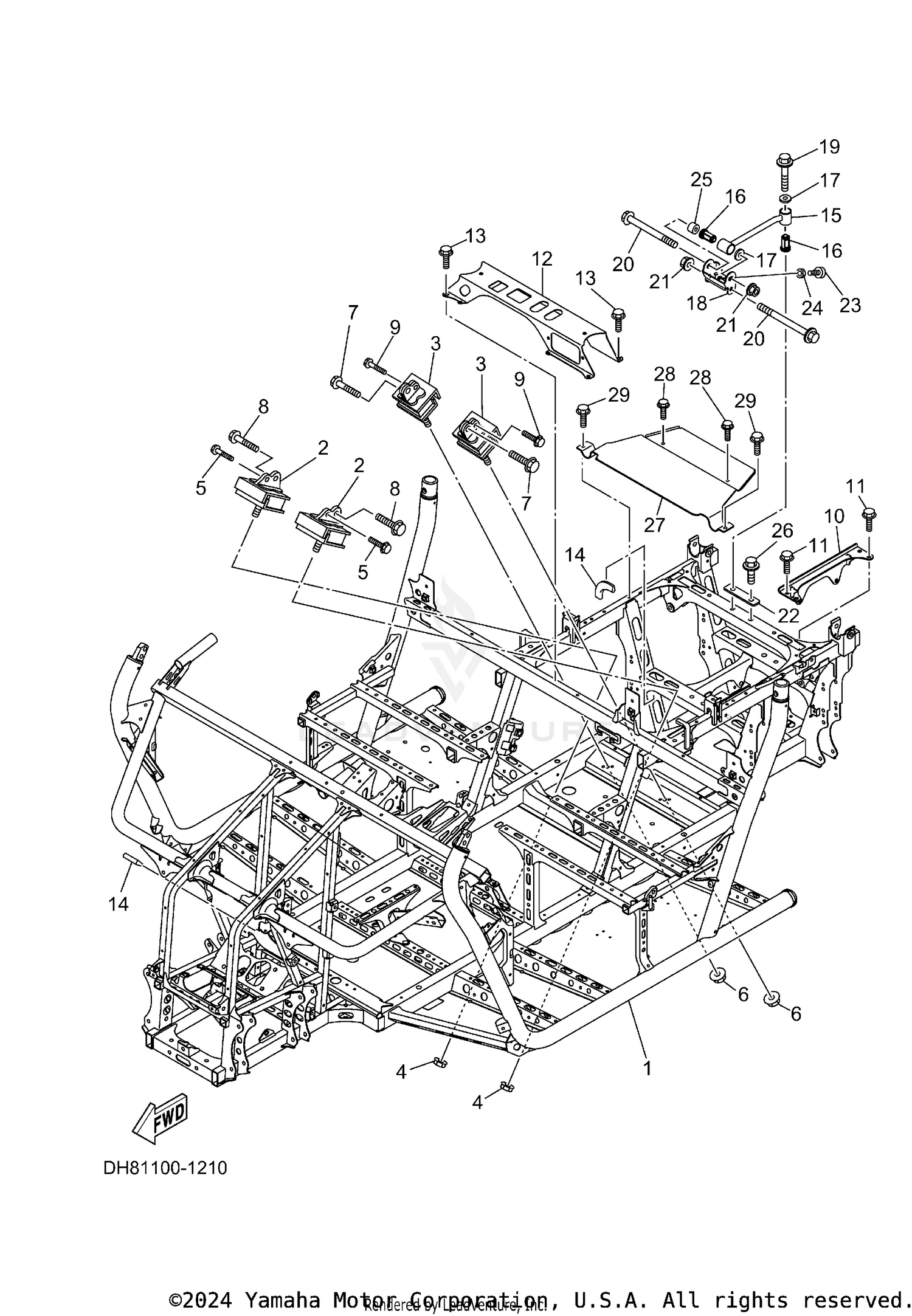

| Ref | Part Number | Description |
|---|
| 1 |
DH8-F1110-00-00 |
FRAME COMP. Price: $2,577.99 |
| 2 |
2PG-21485-00-00 |
DAMPER, RUBBER 1 Price: $33.99 |
| 3 |
5B4-21485-01-00 |
DAMPER, RUBBER 1 Price: $124.99 |
| 4 |
90185-10011-00 |
NUT, SELF-LOCKING Price: $4.95 |
| 5 |
95024-06016-00 |
BOLT, FLANGE This part replaces 90105-06639-00. Price: $9.49 |
| 6 |
90185-10011-00 |
NUT, SELF-LOCKING Price: $4.95 |
| 7 |
95812-10035-00 |
BOLT, FLANGE Price: $6.49 |
| 8 |
90105-10314-00 |
BOLT, FLANGE Price: $9.49 |
| 9 |
95024-06016-00 |
BOLT, FLANGE This part replaces 90105-06639-00. Price: $9.49 |
| 10 |
2PG-F831T-00-00 |
STAY, SUPPORT 1 Price: $17.49 |
| 11 |
95817-08016-00 |
BOLT,FLANGE (JN5) This part replaces 95812-08016-00. Price: $5.49 |
| 12 |
1XD-F834V-00-00 |
PROTECTOR 1 Price: $33.99 |
| 13 |
90105-08867-00 |
BOLT, FLANGE Price: $1.95 |
| 14 |
4XY-28347-00-00 |
MOLE 3 Price: $8.49 |
| 15 |
B42-F1315-02-00 |
STAY, ENGINE 1 Price: $31.99 |
| 16 |
5UH-E5336-00-00 |
DAMPER, ENGINE MOUNT 3 Price: $21.99 |
| 17 |
5ND-F1486-00-00 |
DAMPER 2 Price: $11.99 |
| 18 |
B42-F1121-01-00 |
BRACKET, DAMPER Price: $20.99 |
| 19 |
95817-10070-00 |
BOLT, FLANGE This part replaces 95812-10070-00. Price: $6.49 |
| 20 |
95812-10100-00 |
BOLT, FLANGE Price: $6.49 |
| 21 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 22 |
B42-F1158-00-00 |
BRACKET Price: $5.49 |
| 23 |
98580-06020-00 |
SCREW, PAN HEAD This part replaces 98502-06020-00. Price: $9.49 |
| 24 |
95380-06700-00 |
NUT This part replaces 95302-06700-00. Price: $9.49 |
| 25 |
B42-F1116-00-00 |
COLLAR Price: $8.49 |
| 26 |
95817-10020-00 |
BOLT, FLANGE This part replaces 95812-10020-00. Price: $9.49 |
| 27 |
1XD-F2898-21-00 |
INSULATOR, HEAT Price: $42.99 |
| 28 |
90105-08867-00 |
BOLT, FLANGE Price: $1.95 |
