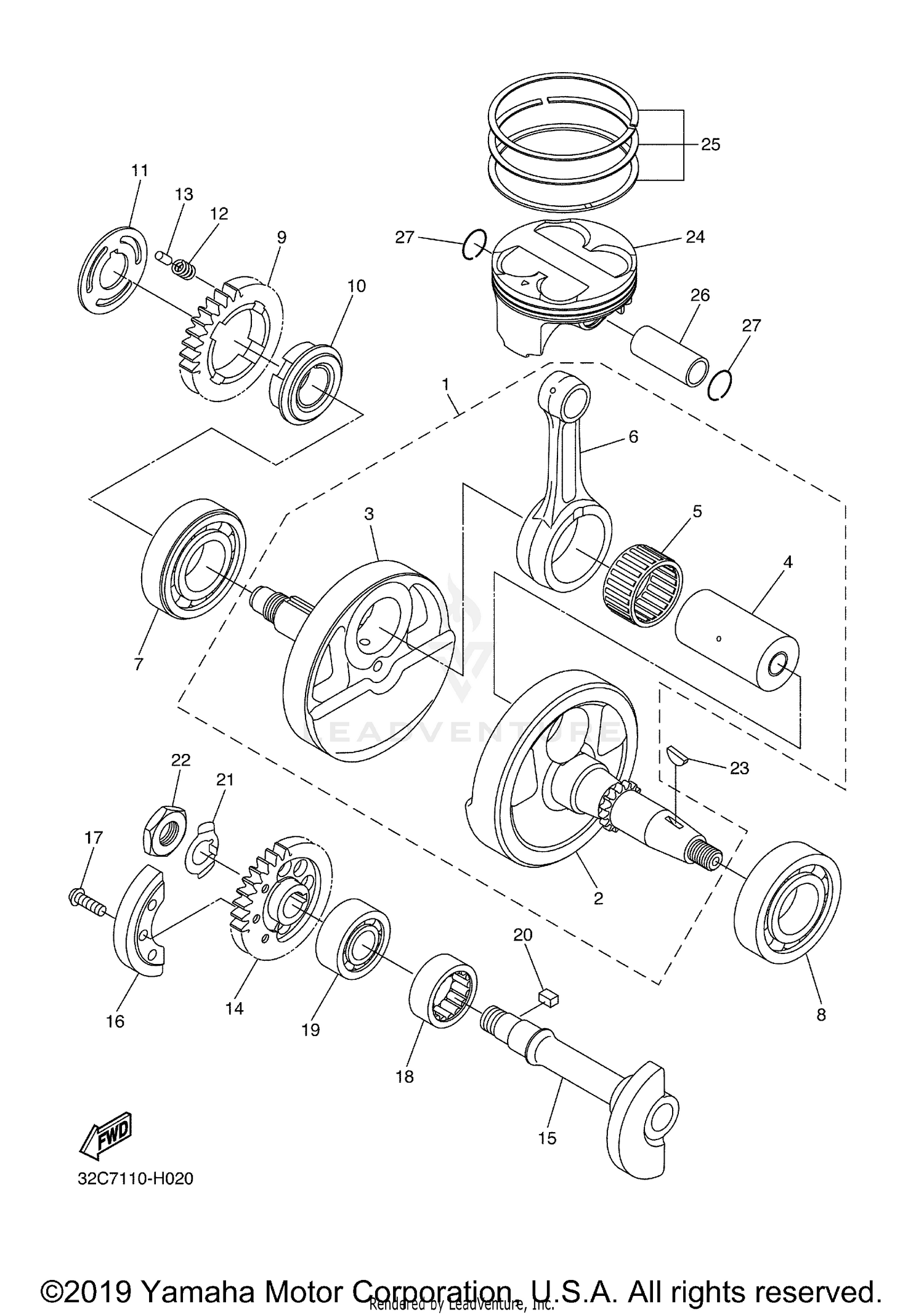

| Ref | Part Number | Description |
|---|
| 1 |
3D7-11400-01-00 |
CRANKSHAFT ASSY Price: $551.99 |
| 2 |
3D7-11412-00-00 |
CRANK 1 Price: $180.99 |
| 3 |
3D7-11422-00-00 |
CRANK 2 Price: $180.99 |
| 4 |
3D7-11681-01-00 |
PIN, CRANK 1 Price: $88.99 |
| 5 |
93310-63257-00 |
BEARING Price: $107.99 |
| 6 |
3D7-11651-00-00 |
ROD, CONNECTING Price: $115.99 |
| 7 |
93306-20648-00 |
BEARING Price: $99.99 |
| 8 |
93306-20657-00 |
BEARING Price: $96.99 |
| 9 |
3D7-11536-00-00 |
GEAR, DRIVE Price: $101.99 |
| 10 |
3D7-11496-00-00 |
BOSS, BUFFER Price: $77.99 |
| 11 |
3D7-11533-00-00 |
PLATE, ABSORBER Price: $9.99 |
| 12 |
90501-22721-00 |
SPRING, COMPRESSION Price: $10.49 |
| 13 |
93605-10090-00 |
PIN, DOWEL Price: $9.49 |
| 14 |
3D7-11531-00-00 |
GEAR, BALANCE WEIGHT Price: $128.99 |
| 15 |
3D7-11455-00-00 |
SHAFT 1 Price: $180.99 |
| 16 |
3D7-11454-00-00 |
WEIGHT 1 Price: $46.99 |
| 17 |
90149-06068-00 |
SCREW This part replaces 90149-06069-00. Price: $4.70 |
| 18 |
93311-62574-00 |
BEARING Price: $68.99 |
| 19 |
93305-20301-00 |
BEARING Price: $139.99 |
| 20 |
90282-05065-00 |
KEY, STRAIGHT This part replaces 90282-05013-00. Price: $10.49 |
| 21 |
90215-14003-00 |
WASHER, LOCK Price: $8.49 |
| 22 |
90170-14171-00 |
NUT Price: $10.49 |
| 23 |
90280-03006-00 |
KEY, WOODRUFF Price: $9.49 |
| 24 |
3D7-11631-00-00 |
PISTON (STD) Price: $209.99 |
| 25 |
5NL-11603-11-00 |
PISTON RING SET (STD) This part replaces 5NL-11603-10-00. Price: $56.99 |
| 26 |
4C8-11633-00-00 |
PIN, PISTON Price: $46.99 |
