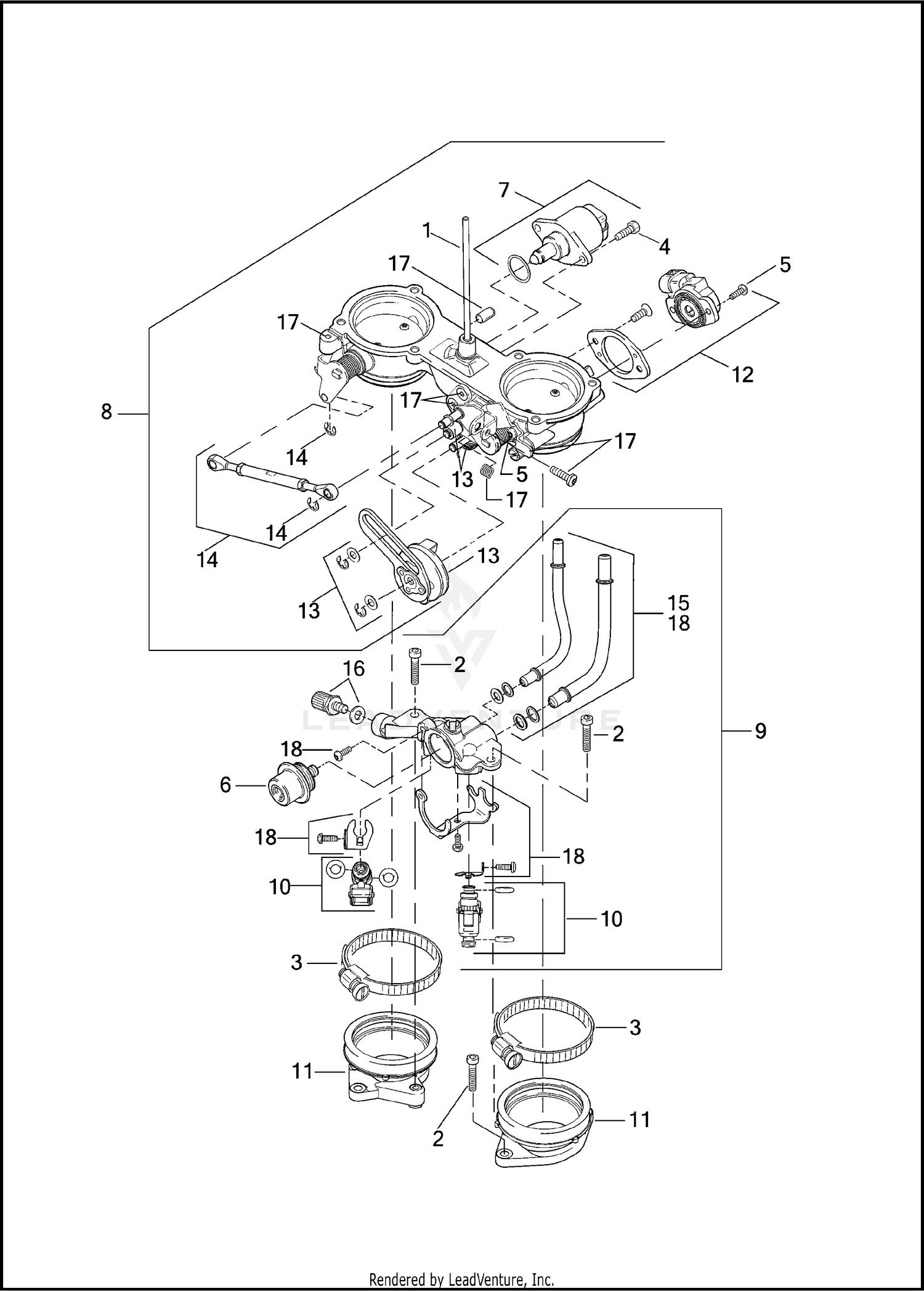

| Ref | Part Number | Description |
|---|
| 1 |
964 |
STUD Not Available Price: |
| 2 |
1114M |
SCREW M6 X 1 X 20 SOCKET HD. Price: $1.38 |
| 3 |
10232K |
HOSE CLAMP Price: $1.17 |
| 4 |
27216-95 |
SCREW Price: $5.78 |
| 5 |
27225-01 |
SCREW Not Available Price: |
| 6 |
27408-01 |
FUEL PRESSURE REGULATOR Price: $46.12 |
| 7 |
27628-01A |
IDLE AIR CONTROL MOTOR KIT W/ 27216-95, O-RING, & MOTOR Price: $61.75 |
| 8 |
27657-01 |
THROTTLE BODY ASSEMBLY W/ 7, 12, 13, 14 & 17 Not Available Price: |
| 9 |
27662-01B |
FUEL RAIL ASSEMBLY W/ 6, 10 & 16 Price: $294.62 |
| 10 |
27665-01A |
INJECTOR W/ O-RINGS Price: $74.07 |
| 11 |
27669-01K |
RUBBER BOOT Not Available Price: |
| 12 |
27975-01 |
THROTTLE POSITION SENSOR KIT W/ 27225-01, SCREWS FOR SENSOR, PLATE T.P.S. & THROTTLE POSITION SENSOR Not Available Price: |
| 13 |
27977-01 |
CAM LEVER KIT W/ BUSHING, CLIP, SPRING CAM, SHIM ROLLER, CAM ROLLER ASSEMBLY & CAM LEVER Not Available Price: |
| 14 |
27982-01 |
LINKAGE ROD KIT W/ BUSHING, CLIP, LINKAGE ROD ASSEMBLY, NUT & ROD END Price: $105.24 |
| 15 |
27990-01 |
FUEL TUBE KIT Not Available Price: |
| 16 |
27993-01 |
CHECK VALVE BODY ASSEMBLY W/ WASHERS Not Available Price: |
| 17 |
27995-01 |
HARDWARE KIT THROTTLE BODY, W/ 27216-95, 27225-01, SHIM, CABLE BRACKET, WASHER SHAFT PURGE TUBE CAP, CLIP, SPRING, SCREWS & O-RING Not Available Price: |
