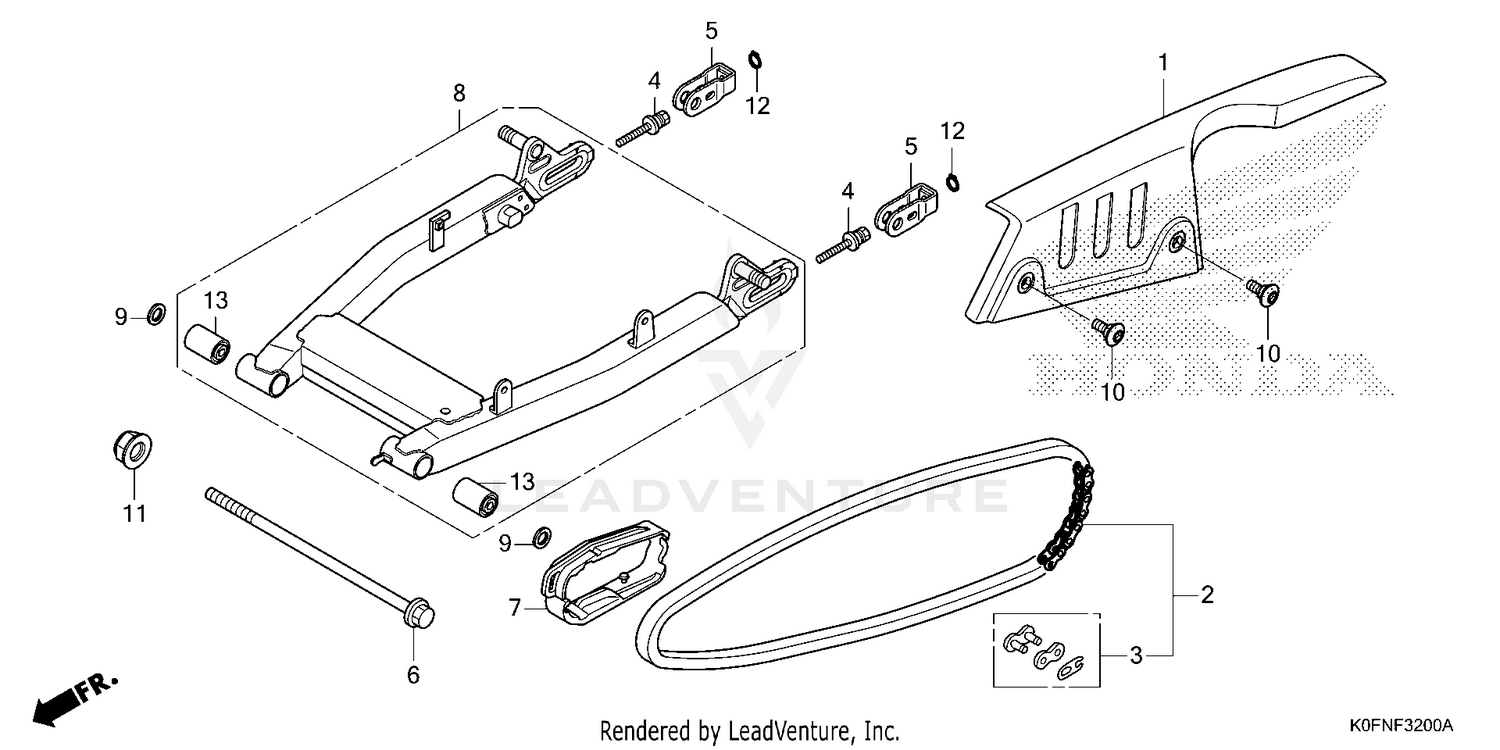

| Ref | Part Number | Description |
|---|
| 1 |
40510-K0F-T00 |
CASE, DRIVE CHAIN Price: $18.84 |
| 2 |
40530-K0F-D11 |
CHAIN, DRIVE (DID420D2-98RB) Price: $26.93 |
| 3 |
40531-KWV-003 |
MASTER LINK (DAIDO) Price: $4.49 |
| 4 |
40542-K0F-T00 |
BOLT, CHAIN ADJUSTING Price: $2.71 |
| 5 |
40543-K0F-T00 |
ADJUSTER, CHAIN Price: $10.91 |
| 6 |
52101-K0F-T00 |
BOLT, SWINGARM PIVOT Price: $9.58 |
| 7 |
52170-K0F-T00 |
SLIDER, CHAIN Price: $10.67 |
| 8 |
52200-K0F-T00ZA |
SWINGARM SUB-ASSY., RR. *YR354* (BANANA YELLOW) Price: $367.76 |
| 8 |
52200-K0F-T00ZB |
SWINGARM SUB-ASSY., RR. *R376P* (PEARL NEBULA RED) Price: $351.85 |
| 8 |
52200-K0F-T00ZC |
SWINGARM SUB*NHB98P* Price: $358.38 |
| 9 |
90122-KWB-600 |
WASHER, PIVOT BOLT Price: $0.80 |
| 10 |
90133-KPP-T00 |
SCREW, PAN (6X14) Price: $1.45 |
| 11 |
90306-KWN-701 |
NUT, U (12MM) Price: $5.09 |
| 12 |
94511-10000 |
CIRCLIP (OUTER) (10MM) Price: $1.05 |
