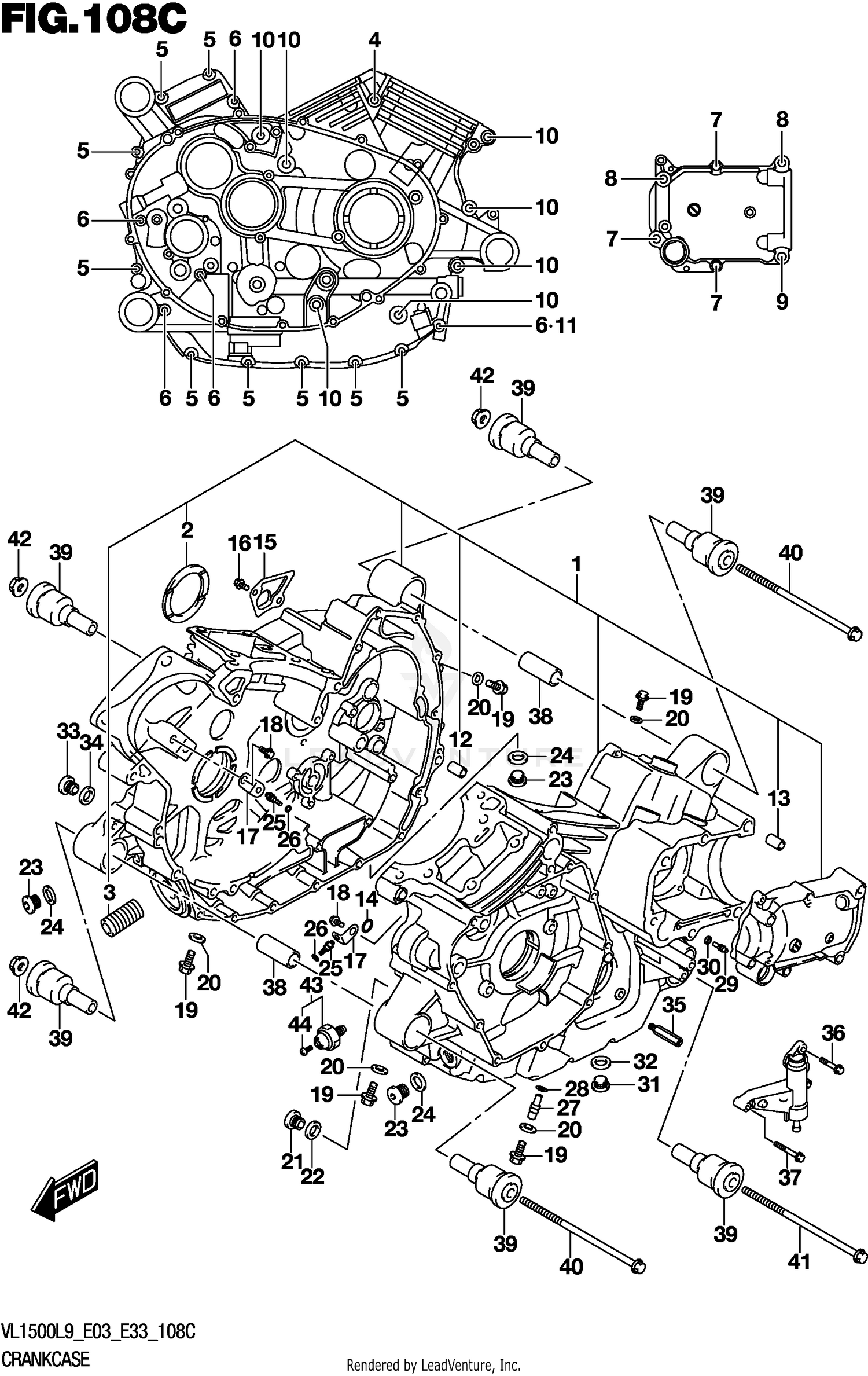

CRANKCASE (VL1500TL9 E03)
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11301-40881 | CRANKCASE SET Price: $3,728.87 |
| 3 | 16591-06B01 | UNION,OIL STAND Price: $8.70 |
| 7 | 01550-0845A | BOLT Price: $3.89 |
| 11 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 14 | 09280-12009 | O-RING (D:1.9,ID:12.6) Price: $3.87 |
| 15 | 11313-40H00 | PLATE Price: $11.17 |
| 16 | 01547-0612A | BOLT Price: $2.45 |
| 17 | 16439-38B00 | PLATE Price: $1.87 |
| 18 | 01547-0612A | BOLT Price: $2.45 |
| 19 | 01550-0812A | BOLT Price: $2.79 |
| 20 | 09168-08016 | GASKET (8.2X14X1) Price: $1.99 |
| 21 | 09248-10010 | PLUG (10X10) Price: $5.16 |
| 22 | 09168-10002 | GASKET (10X14X3.6) Price: $2.22 |
| 23 | 09248-16012 | PLUG (16X8) Price: $5.66 |
| 24 | 09168-16002 | GASKET (16X22X2) Price: $2.30 |
| 25 | 09493-80009 | JET Price: $21.76 |
| 26 | 09280-04004 | O-RING (D:1.2,ID:4) Price: $1.99 |
| 27 | 09493-24009 | JET (12) Price: $13.28 |
| 28 | 09280-04004 | O-RING (D:1.2,ID:4) Price: $1.99 |
| 29 | 09493-36004 | JET (18) Price: $17.72 |
| 30 | 09280-04004 | O-RING (D:1.2,ID:4) Price: $1.99 |
| 32 | 09168-14002 | GASKET (13.8X18.8X4.8) Price: $2.75 |
| 33 | 09248-14011 | PLUG (14X12) Price: $3.68 |
| 34 | 09168-14002 | GASKET (13.8X18.8X4.8) Price: $2.75 |
| 35 | 11372-22H00 | BOLT Price: $16.20 |
| 36 | 01547-0620A | BOLT Price: $2.45 |
| 37 | 01547-0630A | BOLT Price: $2.79 |
| 38 | 11611-48G00 | SPACER,ENG MTG Price: $17.51 |
| 39 | 11652-40H20 | BUSH Price: $32.72 |
| 40 | 09103-10041-A05 | BOLT (10X215) Price: $12.66 |
| 41 | 09103-10118 | BOLT (L:195) Price: $13.46 |
| 42 | 08319-3110A | NUT Price: $3.28 |
| 43 | 37820-33D11 | SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D10. Price: $26.40 |
