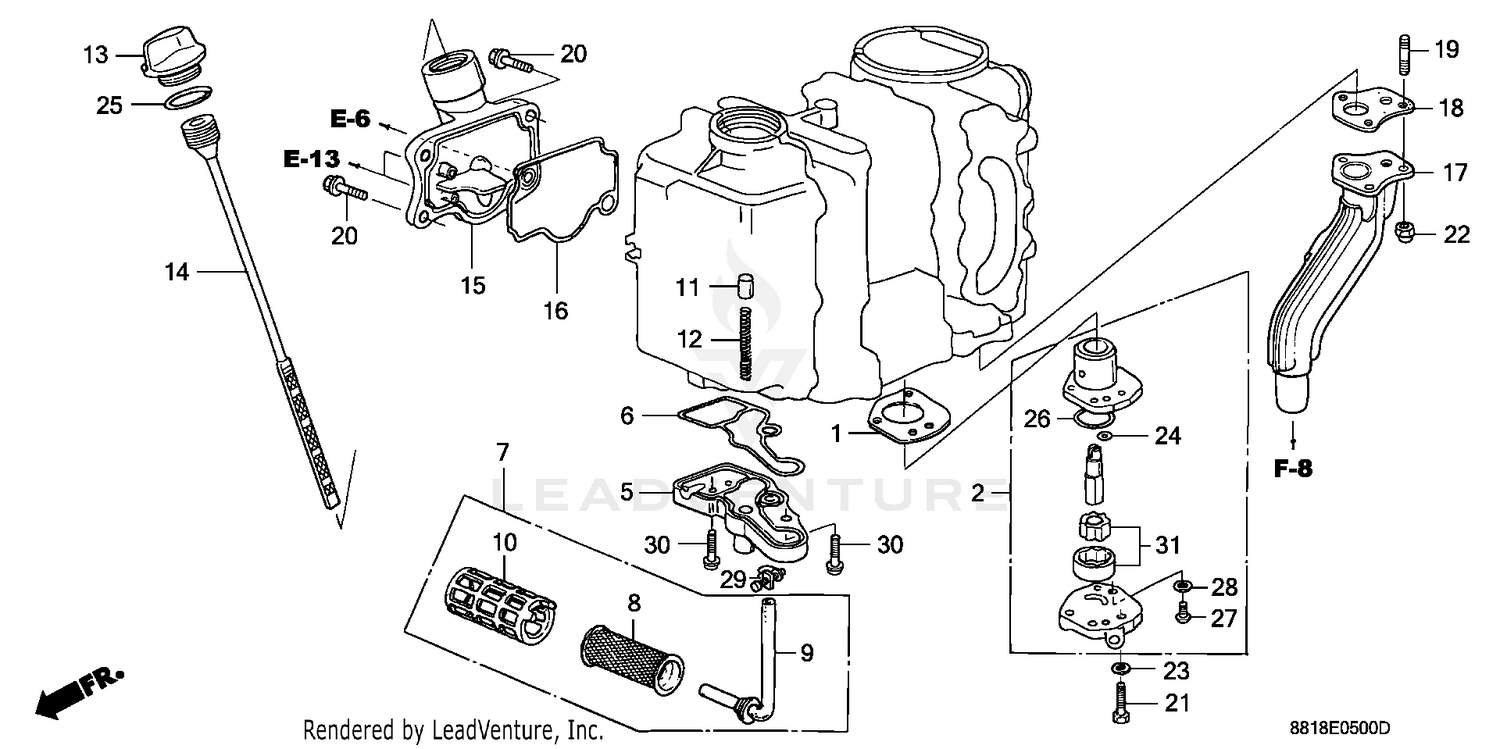

| Ref | Part Number | Description |
|---|
| 1 |
15112-881-000 |
GASKET, PUMP BODY Price: $2.02 |
| 2 |
15200-881-003 |
PUMP ASSY., OIL Price: $94.44 |
| 3 |
15331-881-000 |
ROTOR, OIL PUMP (INNER) Price: $10.54 |
| 4 |
15332-881-000 |
ROTOR, OIL PUMP (OUTER) Price: $14.26 |
| 5 |
15410-881-000 |
FLANGE, OIL FILTER Price: $22.42 |
| 6 |
15412-881-000 |
GASKET, OIL FILTER Price: $9.52 |
| 7 |
15420-881-010 |
FILTER ASSY., OIL Price: $23.82 |
| 8 |
15421-881-000 |
FILTER, OIL Price: $12.92 |
| 9 |
15422-881-010 |
TUBE, OIL Price: $7.88 |
| 10 |
15423-ZV4-000 |
SEE PART DETAILS - PRI; HOLDER, OIL FILTER Price: $14.42 |
| 11 |
15473-881-000 |
VALVE, CHECK Price: $12.48 |
| 12 |
15474-881-000 |
SPRING, VALVE (Honda Code 0497495). Price: $5.94 |
| 13 |
15611-921-000 |
SEE PART DETAILS - PRI; CAP, OIL (Honda Code 0282806). Price: $13.88 |
| 14 |
15612-921-000 |
DIPSTICK, OIL Price: $14.28 |
| 15 |
15620-881-000 |
SEE PART DETAILS - PRI; BODY, OIL FILLER Price: $36.12 |
| 16 |
15622-881-000 |
GASKET, OIL FILLER BODY Price: $10.90 |
| 17 |
18201-881-741 |
SEE PART DETAILS - PRI; PIPE, EX. Price: $93.86 |
| 18 |
18211-881-850 |
SEE PART DETAILS - PRI; GASKET, EX. PIPE Use from Engine SN 1204900. Price: $5.92 |
| 19 |
90009-881-741 |
SEE PART DETAILS - PRI; BOLT, STUD (6X22) Price: $1.66 |
| 20 |
90121-881-000 |
BOLT, FLANGE (6X22) Price: $1.72 |
| 21 |
90123-881-000 |
BOLT, FLANGE (6X28) Price: $1.74 |
| 22 |
90202-ZV0-000 |
NUT, CAP (6MM) Price: $3.66 |
| 23 |
90478-700-000 |
WASHER A (6MM) Price: $0.96 |
| 24 |
91306-PJ4-000 |
SEE PART DETAILS - PRI; O-RING (6.8X1.9) Price: $4.54 |
| 25 |
91301-805-000 |
SEE PART DETAILS - PRI; O-RING (26X2.7) (Honda Code 0065185). Price: $5.00 |
| 26 |
91315-935-003 |
O-RING (25X1.0) Price: $3.26 |
| 27 |
93500-05010-0A |
SEE PART DETAILS - PRI; SCREW, PAN (5X10) (Honda Code 0156976). Price: $1.14 |
| 28 |
94101-05000 |
SEE PART DETAILS - PRI; WASHER, PLAIN (5MM) (Honda Code 0059055). Price: $1.24 |
| 29 |
95002-41050-08 |
SEE PART DETAILS - PRI; CLIP, TUBE (10.5MM) Price: $3.18 |
| 30 |
90121-881-000 |
BOLT, FLANGE (6X22) Price: $1.72 |
