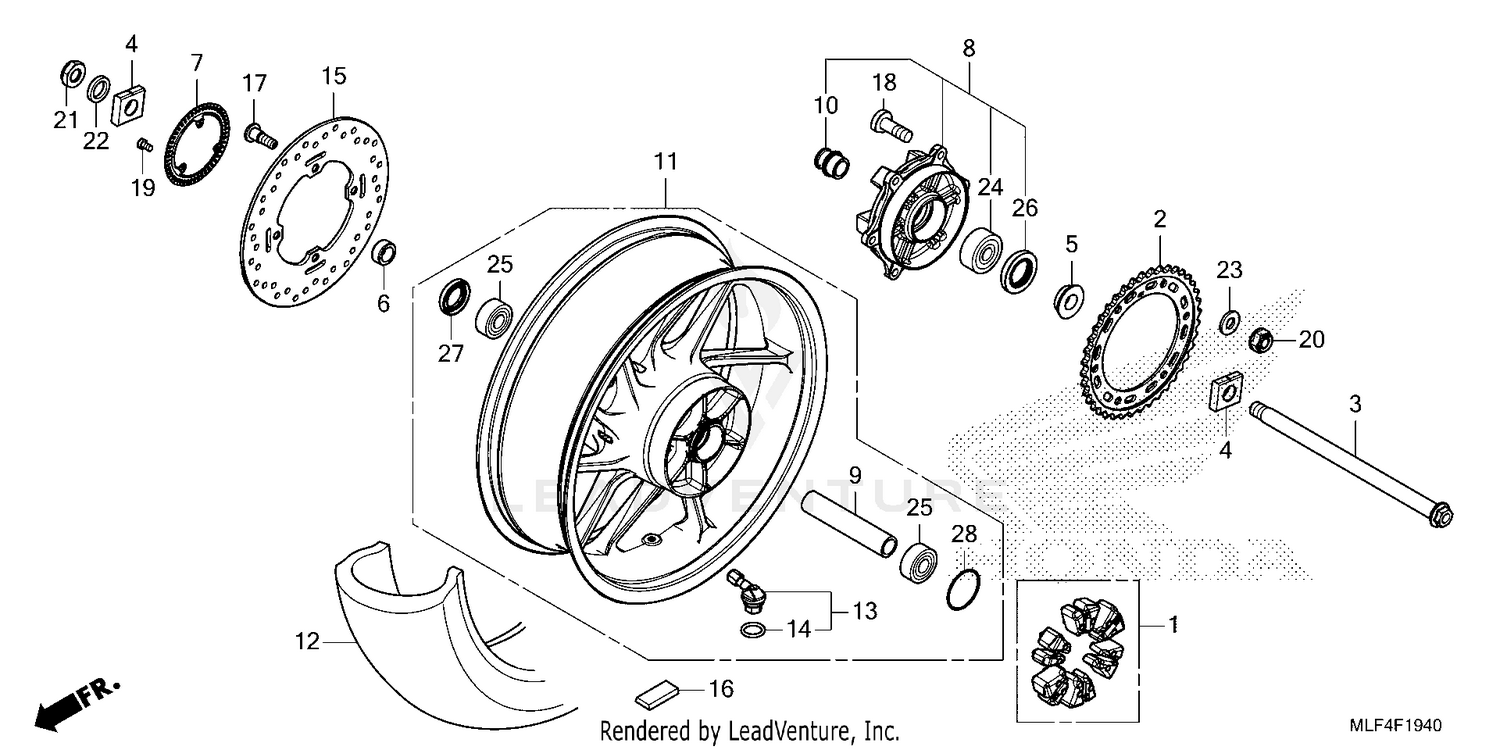

| Ref | Part Number | Description |
|---|
| 1 |
06410-MLF-E00 |
DAMPER SET, WHEEL (NOT AVAILABLE) Price: $52.84 |
| 2 |
41201-MKR-D10 |
SPROCKET (40T) Price: $89.55 |
| 3 |
42301-MLF-E00 |
AXLE, RR. WHEEL (NOT AVAILABLE) Price: $42.78 |
| 4 |
42305-MJP-G50 |
COLLAR, RR. AXLE Price: $32.93 |
| 5 |
42311-MLF-E00 |
COLLAR, L. RR. WHEEL SIDE (NOT AVAILABLE) Price: $16.93 |
| 6 |
42312-MGS-D10 |
COLLAR, RR. BRAKE SIDE Price: $18.93 |
| 7 |
42515-MKS-E20 |
RING, RR. PULSER Price: $50.62 |
| 8 |
42615-MLF-E00 |
FLANGE SUB-ASSY., RR. DRIVEN (NOT AVAILABLE) Price: $169.42 |
| 9 |
42620-MLF-E00 |
COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE) Price: $26.58 |
| 10 |
42625-MLF-E00 |
COLLAR B, RR. WHEEL DISTANCE (NOT AVAILABLE) Price: $20.38 |
| 11 |
42650-MLF-E01ZC |
WHEEL SUB-ASSY., RR. (TYPE1) (NA USE ALT:42650-MLF-E01ZB) Price: Call Us |
| 12 |
42711-MLF-E02 |
TIRE, RR. (180/55ZR17) (M/C 73W) (DUNLOP) (NOT AVAILABLE) Price: $257.12 |
| 12 |
42711-MLF-E03 |
TIRE, RR. (180/55ZR17) (M/C 73W) (METZELER) (NOT AVAILABLE) Price: $257.12 |
| 13 |
42755-MKA-D81 |
VALVE ASSY., CLAMP IN Price: $20.09 |
| 14 |
42758-MKA-D81 |
O-RING Price: $1.75 |
| 15 |
43251-MLA-A01 |
DISK, RR. BRAKE (NHK PRECISION) Price: $339.69 |
| 16 |
44721-MLN-EQ1 |
WEIGHT, BALANCE (10G) Price: Call Us |
| 16 |
44722-MLN-EQ1 |
WEIGHT, BALANCE (15G) Price: $4.71 |
| 16 |
44723-MLN-EQ1 |
WEIGHT, BALANCE (20G) Price: $4.63 |
| 17 |
90108-MLB-D00 |
BOLT (8X24) Price: $4.33 |
| 18 |
90121-MCF-D30 |
BOLT (10X30) Price: $3.35 |
| 19 |
90131-MGE-000 |
BOLT, TORX (5X8) Price: $3.55 |
| 20 |
90304-KAE-871 |
NUT, U (10MM) Price: $5.44 |
| 21 |
90306-MCS-G01 |
NUT, U (18MM) Price: $8.56 |
| 22 |
90401-KZ4-890 |
WASHER (18X32X2) Price: $5.62 |
| 23 |
90502-MCF-000 |
WASHER (10MM) Price: $3.20 |
| 24 |
91051-MFL-003 |
BEARING, ANGULAR BALL (28X56X15) Price: $41.31 |
| 25 |
91053-MKY-D51 |
BEARING, RADIAL BALL (6204UU) (NSK) Price: $18.38 |
| 26 |
91251-MFL-003 |
DUST SEAL (35X56X7.5) Price: $8.53 |
| 27 |
91253-MAE-003 |
DUST SEAL (30X47X7.5) Price: $19.33 |
