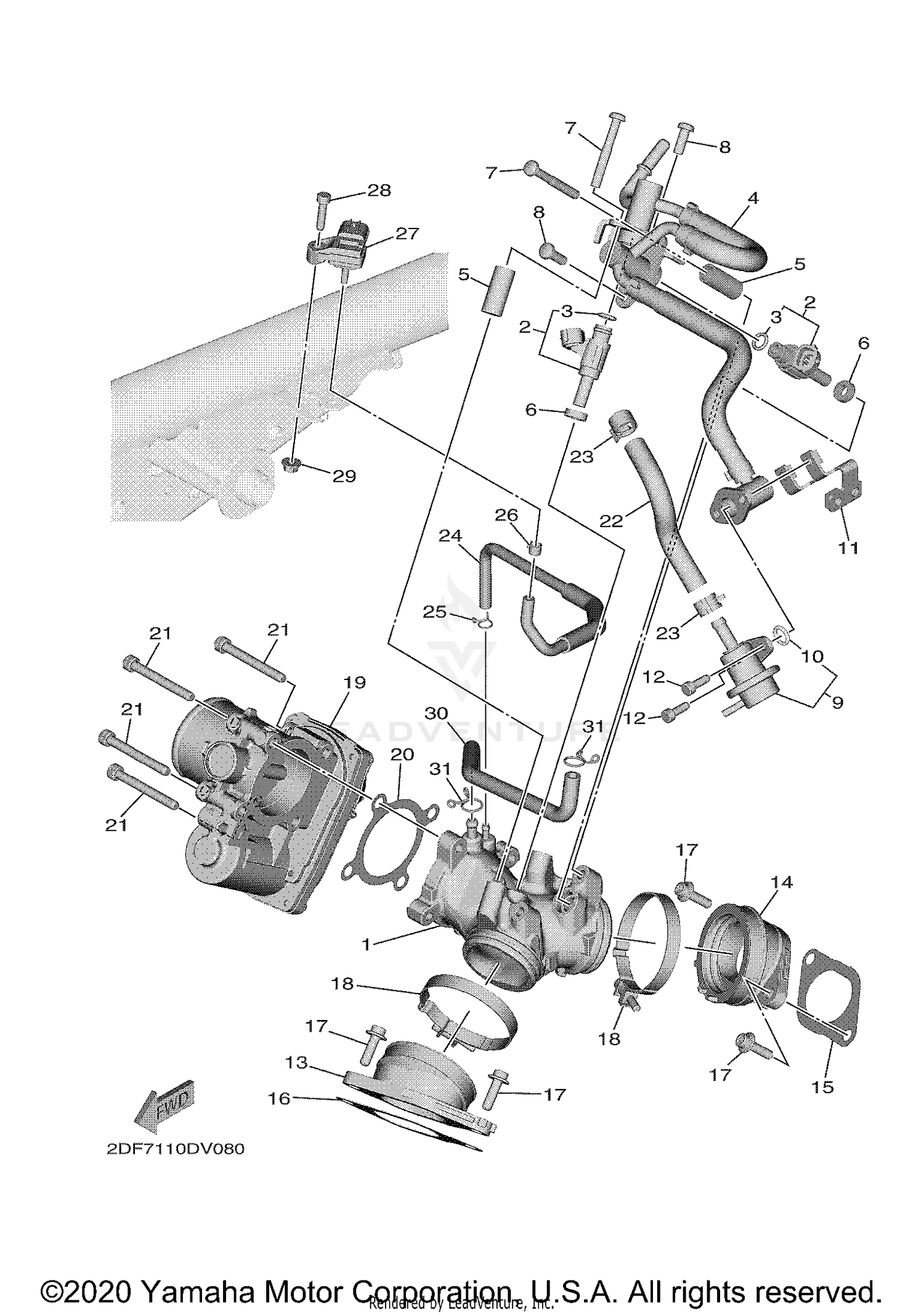

| Ref | Part Number | Description |
|---|
| 1 |
2DF-13640-00-00 |
MANIFOLD Price: $190.99 |
| 2 |
2DF-13761-00-00 |
INJECTOR Price: $98.99 |
| 3 |
68V-1416A-00-00 |
O-RING Price: $13.75 |
| 4 |
2DF-13930-00-00 |
PIPE INLET ASSEMBLY Price: $275.99 |
| 5 |
2DF-13716-00-00 |
COLLAR Price: $6.49 |
| 6 |
8FP-13556-10-00 |
GASKET, MANIFOLD Price: $7.49 |
| 7 |
98504-06045-00 |
SCREW, PAN HEAD This part replaces 98502-06045-00. Price: $1.10 |
| 8 |
98580-06016-00 |
SCREW, PAN HEAD This part replaces 98502-06016-00. Price: $3.35 |
| 9 |
5C7-13906-00-00 |
REGULATOR, PRESSURE Price: $207.99 |
| 10 |
5S7-13769-00-00 |
O-RING Price: $38.99 |
| 11 |
2DF-14291-00-00 |
BRACKET 1 Price: $13.49 |
| 12 |
91312-05014-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.20 |
| 13 |
2DF-13586-00-00 |
JOINT, CARBURETOR 1 Price: $60.99 |
| 14 |
2DF-13596-00-00 |
JOINT, CARBURETOR 2 Price: $60.99 |
| 15 |
2DF-14457-00-00 |
SEAL Price: $18.99 |
| 16 |
2DF-14467-00-00 |
SEAL Price: $15.49 |
| 17 |
90110-06348-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.35 |
| 18 |
90450-62004-00 |
HOSE CLAMP ASSY Price: $23.99 |
| 19 |
2DF-13750-01-00 |
THROTTLE BODY ASSY Price: $312.99 |
| 20 |
2DF-14452-00-00 |
SEAL Price: $11.99 |
| 21 |
91312-06050-00 |
BOLT, HEXAGON SOCKET HEAD Price: $5.49 |
| 22 |
2DF-24315-00-00 |
PIPE 5 Price: $17.99 |
| 23 |
90467-12003-00 |
CLIP Price: $9.49 |
| 24 |
2DF-13542-00-00 |
HOSE, VACUUM SENSING 1 Price: $10.49 |
| 25 |
90467-08021-00 |
CLIP Price: $9.49 |
| 26 |
90467-07093-00 |
CLIP Price: $3.60 |
| 27 |
1WS-82380-00-00 |
SENSOR, PRESSURE Price: $209.99 |
| 28 |
91317-05020-00 |
BOLT This part replaces 91312-05020-00. Price: $3.55 |
| 29 |
95702-05500-00 |
NUT, WITH WASHER Price: $0.95 |
| 30 |
2DF-14465-00-00 |
PIPE Price: $14.49 |
