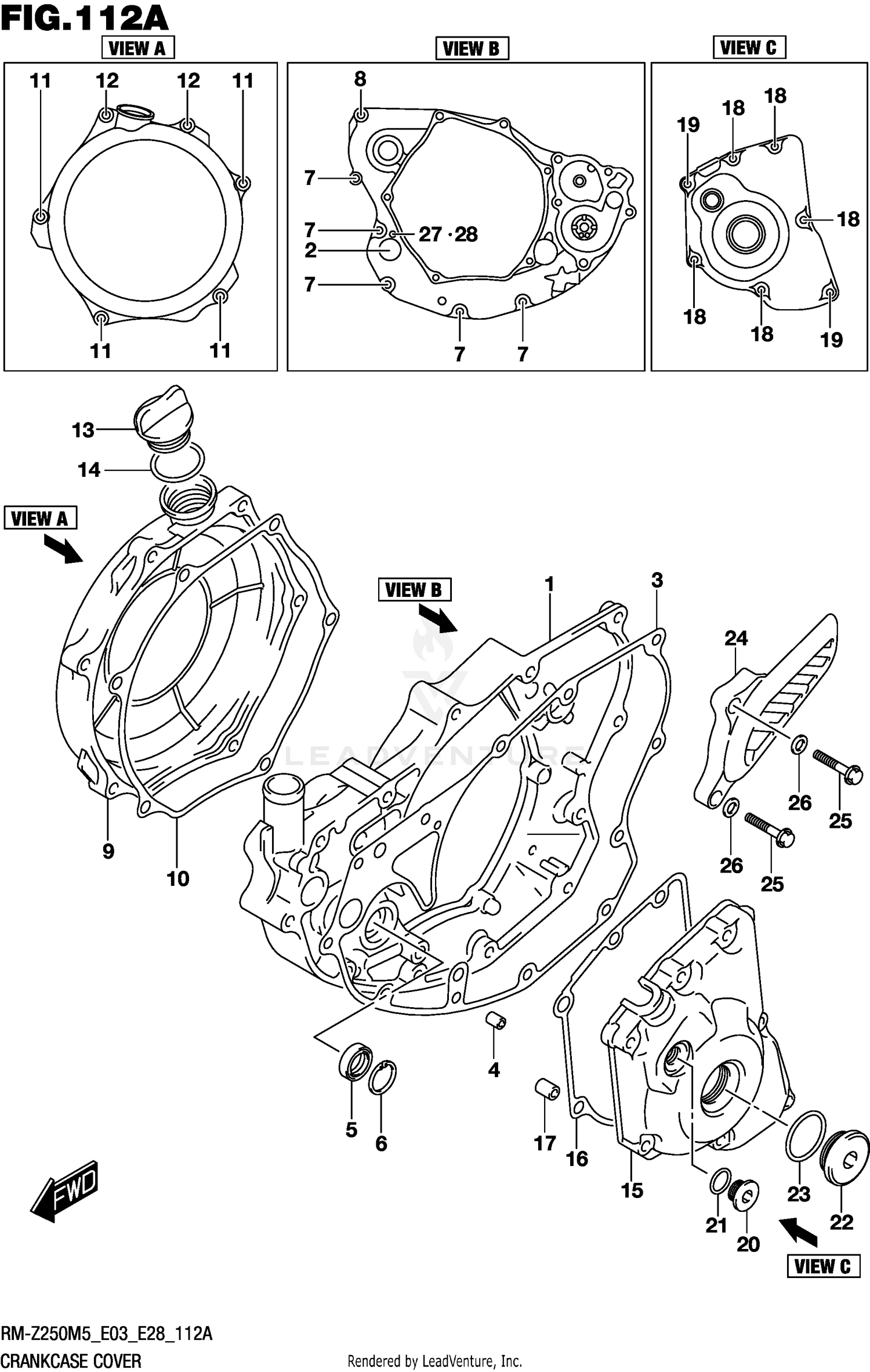

CRANKCASE COVER
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11340-49H10 | COVER,CLUTCH Price: $296.67 |
| 4 | 04211-09109 | PIN Price: $1.99 |
| 5 | 09282-12012 | SEAL,OIL (12X22X6) Price: $18.89 |
| 6 | 08331-41249 | CIRCLIP, FIXED DRIVEN Price: $2.72 |
| 7 | 01547-0625A | BOLT Price: $2.45 |
| 8 | 01547-0630A | BOLT Price: $2.79 |
| 9 | 11371-10H10 | COVER,CLUTCH OUTER Price: $249.34 |
| 11 | 01547-0625A | BOLT Price: $2.45 |
| 13 | 09259-20008-XC0 | PLUG Price: $9.13 |
| 14 | 09280-17003 | O-RING (D:3.1,ID:16.8) Price: $1.99 |
| 15 | 11351-49H01 | COVER,MAGNETO Price: $232.38 |
| 17 | 04211-09109 | PIN Price: $1.99 |
| 18 | 01547-0630A | BOLT Price: $2.79 |
| 19 | 01547-0635A | BOLT Price: $2.79 |
| 20 | 09248-12007 | PLUG (12X9) Price: $7.19 |
| 21 | 09280-10016 | O RING (D:1.9,ID:9.8) This part replaces 09280-10015. Price: $4.10 |
| 22 | 09259-26011 | PLUG (26X9) Price: $13.44 |
| 23 | 09280-22008 | O-RING (D:3.1,ID:22.7) Price: $2.37 |
| 24 | 11360-35G10 | COVER,ENG SPROCKET Price: $23.37 |
| 25 | 01547-0630A | BOLT Price: $2.79 |
| 26 | 08322-0106A | WASHER Price: $2.22 |
| 27 | 07130-0512A | BOLT Price: $2.64 |
