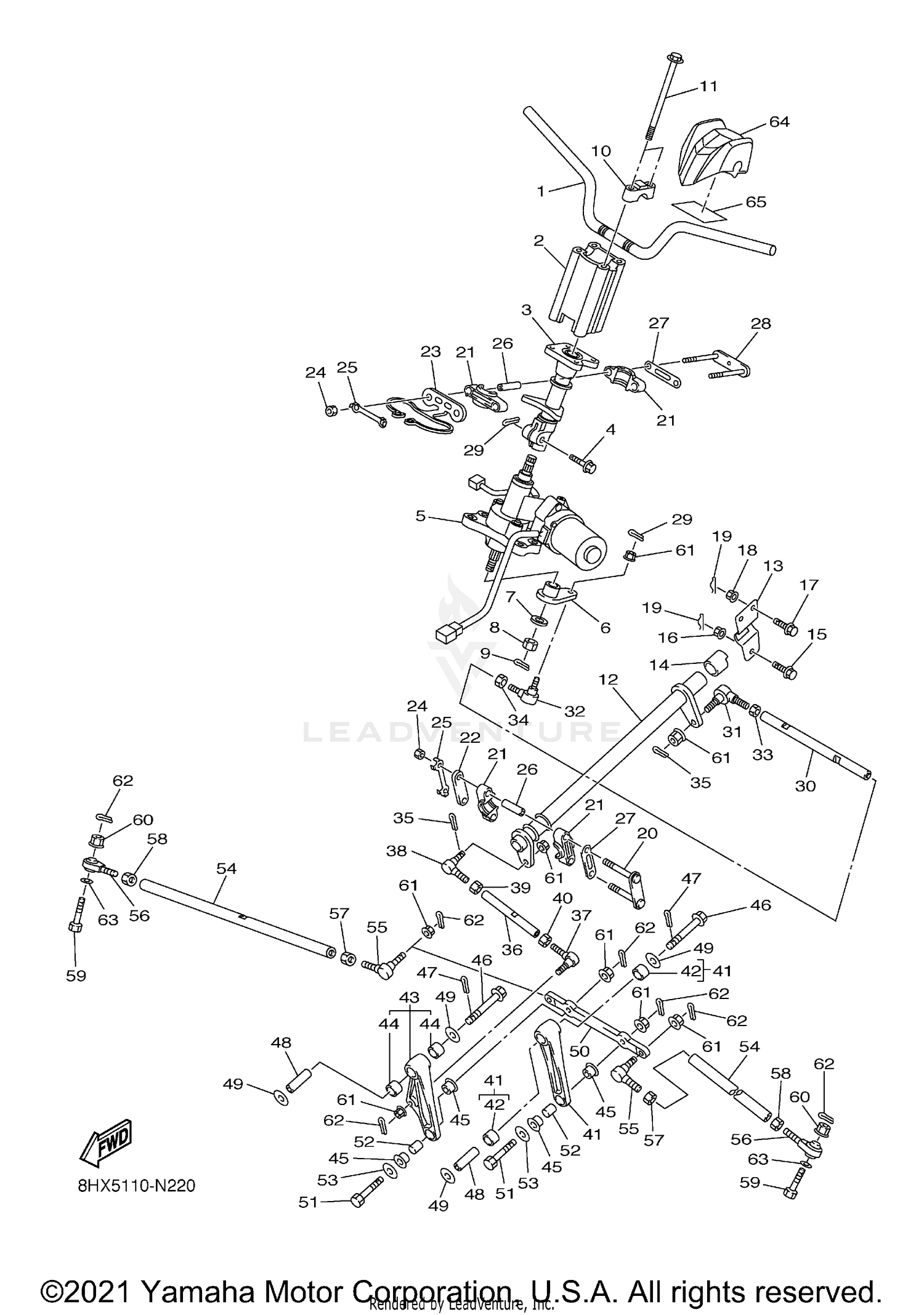

| Ref | Part Number | Description |
|---|
| 1 |
8HX-26111-00-00 |
HANDLEBAR Price: $72.99 |
| 2 |
8HX-2381B-00-00 |
JOINT Price: $143.99 |
| 3 |
8HG-23813-01-00 |
COLUMN, STEERING 2 Price: $252.99 |
| 4 |
90119-08144-00 |
BOLT, WITH WASHER This part replaces 90119-08143-00. Price: $5.49 |
| 5 |
3B4-238B0-36-00 |
POWER STRG. ACTUAT Price: $3,409.99 |
| 6 |
8HG-23816-00-00 |
ARM, PITMAN Price: $50.99 |
| 7 |
90201-16021-00 |
WASHER, PLATE Price: $9.49 |
| 8 |
95612-16100-00 |
NUT, U Price: $18.49 |
| 9 |
91490-20035-00 |
PIN, COTTER (91401-20030-00) This part replaces 91401-20030-00. Price: $5.49 |
| 10 |
1E6-23441-00-00 |
HOLDER, HANDLE UPR (1E6-23441-0 This part replaces 8K1-23814-00-00. Price: $30.99 |
| 11 |
90105-08072-00 |
BOLT, FLANGE Price: $4.00 |
| 12 |
8FA-23811-00-00 |
COLUMN, STEERING Price: $91.99 |
| 13 |
8FA-23818-02-00 |
COVER, STEERING Price: $10.49 |
| 14 |
8FA-23873-01-00 |
BEARING, STEERING UPPER Price: $7.49 |
| 15 |
90105-10728-00 |
BOLT, WASHER BASED Price: $9.49 |
| 16 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 17 |
90105-08552-00 |
BOLT, FLANGE Price: $4.45 |
| 18 |
95602-08200-00 |
NUT, SELF-LOCKING Price: $3.20 |
| 19 |
90468-12006-00 |
CLIP Price: $9.49 |
| 20 |
8FA-23872-00-00 |
HOLDER, BEARING Price: $16.49 |
| 21 |
8FA-23812-00-00 |
BEARING, STEERING Price: $7.49 |
| 22 |
8FA-23867-00-00 |
HOLDER 2 Price: $3.05 |
| 23 |
8HV-23872-00-00 |
HOLDER, BEARING Price: $24.99 |
| 24 |
95333-08600-00 |
NUT This part replaces 95312-08600-00. Price: $3.80 |
| 25 |
1UY-23894-01-00 |
WASHER, LOCK 1 Price: $8.49 |
| 26 |
8HF-2412G-00-00 |
COLLAR Price: $8.49 |
| 27 |
8FA-23843-00-00 |
WASHER, PLAIN Price: $3.85 |
| 28 |
8HG-23872-00-00 |
HOLDER, BEARING Price: $15.49 |
| 29 |
91490-20025-00 |
PIN, COTTER This part replaces 91401-20020-00. Price: $1.99 |
| 30 |
8FA-23828-00-00 |
ROD, STEERING Price: $18.99 |
| 31 |
8CR-23847-00-00 |
JOINT, UNIVERSAL 3 Price: $63.99 |
| 32 |
8CR-23845-10-00 |
JOINT, UNIVERSAL 2 Price: $68.99 |
| 33 |
95317-10700-00 |
NUT (95307-10700-00 ) This part replaces 95307-10700-00. Price: $9.49 |
| 35 |
91490-20025-00 |
PIN, COTTER This part replaces 91401-20020-00. Price: $1.99 |
| 36 |
8HG-23821-00-00 |
ROD, STEERING RELAY Price: $15.49 |
| 37 |
8CR-23847-00-00 |
JOINT, UNIVERSAL 3 Price: $63.99 |
| 38 |
8CR-23845-10-00 |
JOINT, UNIVERSAL 2 Price: $68.99 |
| 39 |
95317-10700-00 |
NUT (95307-10700-00 ) This part replaces 95307-10700-00. Price: $9.49 |
| 41 |
8FG-2389K-00-00 |
ARM PIVOT ASSY Price: $127.99 |
| 42 |
90383-17001-00 |
BUSH, FORMED Price: $13.49 |
| 43 |
8FA-2389M-00-00 |
ARM PIVOT ASSY. , 2 Price: $143.99 |
| 44 |
93317-41785-00 |
BEARING Price: $49.99 |
| 45 |
90381-14001-00 |
BUSH, SOLID Price: $5.49 |
| 46 |
90105-12017-00 |
BOLT, FLANGE Price: $16.49 |
| 47 |
8FA-2384N-00-00 |
CLIP, RING Price: $4.95 |
| 48 |
8FA-2412G-00-00 |
COLLAR Price: $14.49 |
| 49 |
90201-121U3-00 |
WASHER, PLATE Price: $6.49 |
| 50 |
8FU-23826-00-00 |
ARM, IDLER Price: $90.99 |
| 51 |
90102-10044-00 |
BOLT, WITH HOLE Price: $15.49 |
| 52 |
90387-10070-00 |
COLLAR This part replaces 90387-10008-00. Price: $35.99 |
| 53 |
90201-10742-00 |
WASHER, PLATE Price: $9.49 |
| 54 |
8HG-23831-00-00 |
ROD, TIE Price: $38.99 |
| 55 |
8CR-23845-10-00 |
JOINT, UNIVERSAL 2 Price: $68.99 |
| 56 |
8FA-23847-00-00 |
JOINT, UNIVERSAL 3 Price: $80.99 |
| 57 |
95317-10700-00 |
NUT (95307-10700-00 ) This part replaces 95307-10700-00. Price: $9.49 |
| 59 |
90102-10044-00 |
BOLT, WITH HOLE Price: $15.49 |
| 60 |
95707-10300-00 |
NUT, FLANGE This part replaces 95702-10300-00. Price: $9.49 |
| 61 |
95704-10500-00 |
NUT, WITH WASHER This part replaces 95702-10500-00. Price: $2.20 |
| 62 |
91490-20025-00 |
PIN, COTTER This part replaces 91401-20020-00. Price: $1.99 |
| 63 |
90201-08759-00 |
WASHER, PLATE Price: $3.50 |
| 64 |
8GL-26124-00-00 |
PROTECTOR, HANDLEBAR Price: $28.99 |
