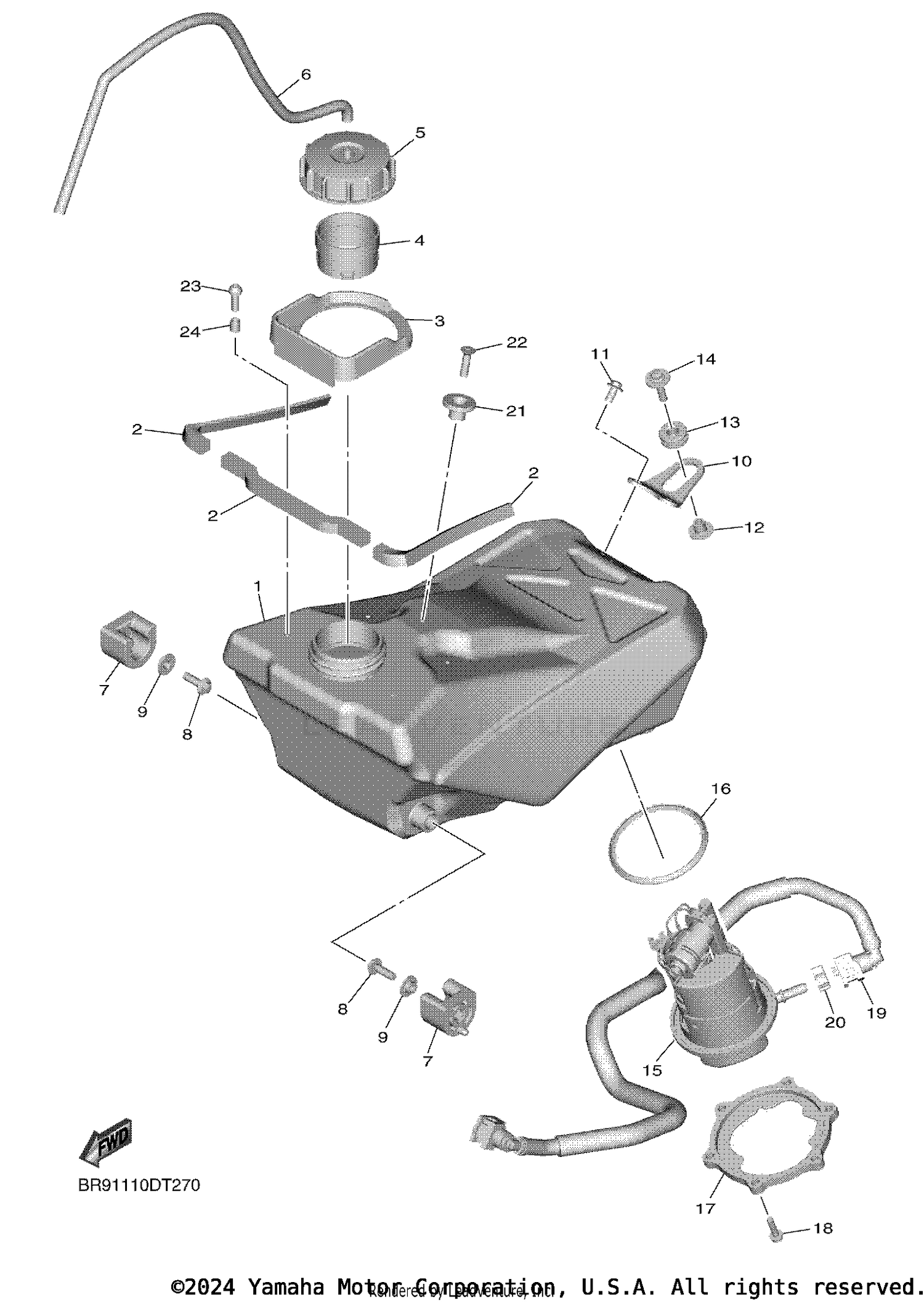

| Ref | Part Number | Description |
|---|
| 1 |
BR9-24110-00-00 |
FUEL TANK COMP. Price: $382.99 |
| 2 |
2D1-2414R-00-00 |
DAMPER, PLATE 6 Price: $8.49 |
| 3 |
BR9-24188-01-00 |
MOLD, FUEL TANK Price: $34.99 |
| 4 |
BR9-24114-00-00 |
TUBE, FILLER Price: $17.49 |
| 5 |
BR9-24610-00-00 |
CAP ASSY Price: $74.99 |
| 6 |
90445-098B3-00 |
HOSE (L580) This part replaces 90445-09008-00. Price: $13.49 |
| 7 |
BR9-24191-00-00 |
BRACKET, FUEL TANK 1 Price: $11.49 |
| 8 |
95E32-06020-00 |
BOLT, FLANGE DEEP RE Price: $0.95 |
| 9 |
90387-06170-00 |
COLLAR Price: $9.49 |
| 10 |
BR9-2419A-00-00 |
HOLDER Price: $8.49 |
| 11 |
95E32-06012-00 |
BOLT, FLANGE DEEP RECESS Price: $1.10 |
| 12 |
90387-066Y6-00 |
COLLAR Price: $10.49 |
| 13 |
90480-10289-00 |
GROMMET Price: $9.49 |
| 14 |
90119-06271-00 |
BOLT, WITH WASHER Price: $2.15 |
| 15 |
33D-13907-02-00 |
FUEL PUMP COMP. This part replaces 33D-13907-01-00. Price: $580.99 |
| 16 |
33D-24486-00-00 |
O-RING Price: $35.99 |
| 17 |
BR9-24491-00-00 |
BRACKET, FUEL PUMP Price: $66.99 |
| 18 |
90110-05058-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 19 |
BR9-13971-01-00 |
PIPE, FUEL 1 This part replaces BR9-13971-00-00. Price: $114.99 |
| 20 |
33D-24135-00-00 |
CLAMP 1 Price: $11.99 |
| 21 |
4EW-2412F-00-00 |
BRACKET, SEAT Price: $15.49 |
| 22 |
90151-06005-00 |
SCREW, COUNTERSUNK Price: $10.49 |
| 23 |
90111-06171-00 |
BOLT, HEX. SOCKET BUTTON Price: $2.35 |
