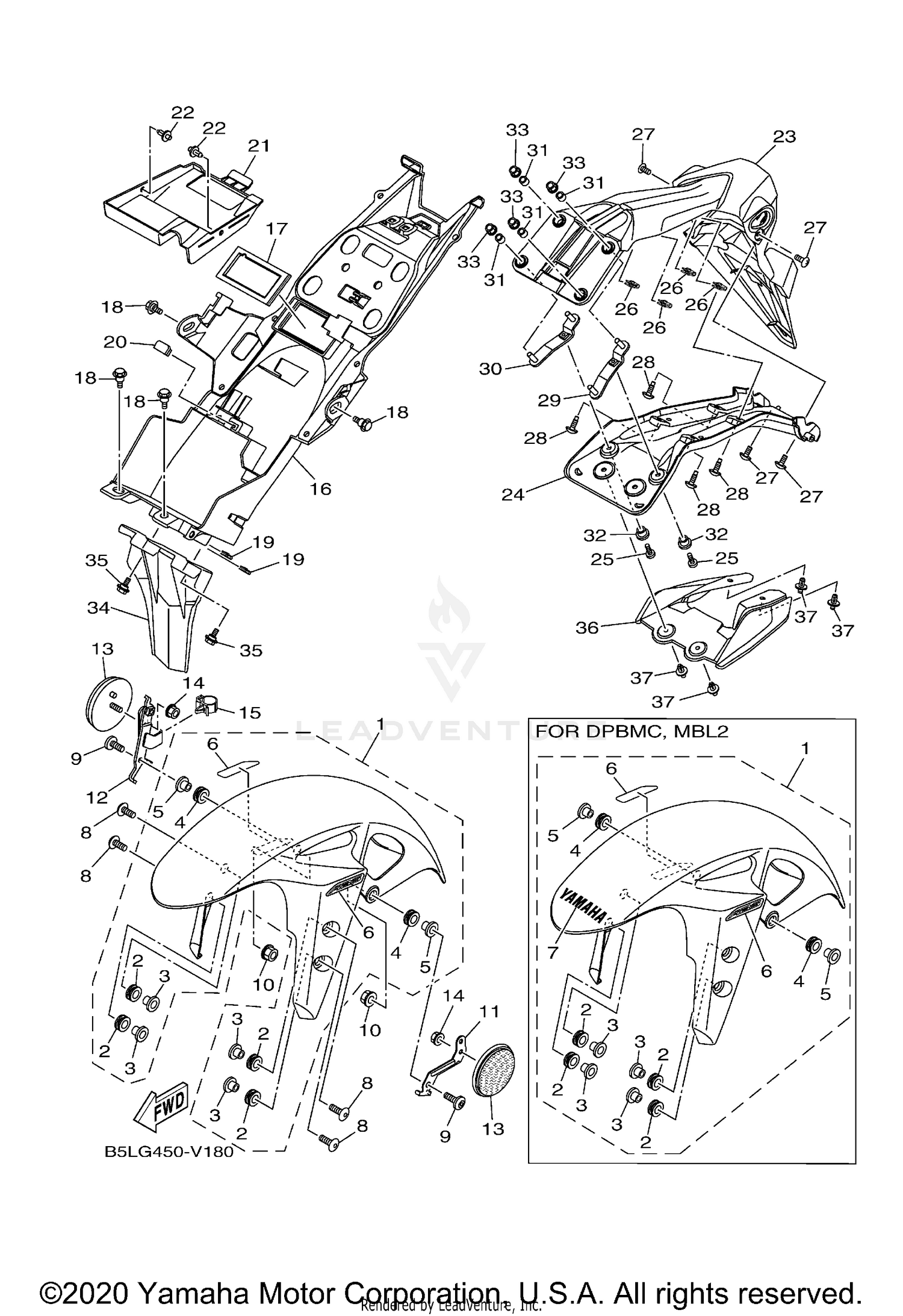

| Ref | Part Number | Description |
|---|
| 2 |
90480-12808-00 |
GROMMET Price: $2.45 |
| 3 |
90387-06899-00 |
COLLAR Price: $3.50 |
| 4 |
90480-12808-00 |
GROMMET Price: $2.45 |
| 5 |
90387-06899-00 |
COLLAR Price: $3.50 |
| 8 |
90111-06137-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 9 |
90111-06847-00 |
BOLT, HEX. SOCKET BUTTON Price: $1.50 |
| 10 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 11 |
B5L-F113J-00-00 |
BRACKET, REFLECTOR 1 Price: $7.49 |
| 12 |
B5L-F113K-01-00 |
BRACKET, REFLECTOR 2 Price: $19.49 |
| 13 |
2EK-85111-00-00 |
REFLECTOR, FRONT 1 Price: $31.99 |
| 14 |
95702-05500-00 |
NUT, WITH WASHER Price: $0.95 |
| 15 |
90464-16006-00 |
CLAMP Price: $10.49 |
| 16 |
1WD-F1611-02-00 |
FENDER, REAR Price: $48.99 |
| 17 |
1WD-F1669-00-00 |
SEAL Price: $3.75 |
| 18 |
90109-063F1-00 |
BOLT Price: $3.10 |
| 19 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 20 |
1WD-F16A2-00-00 |
SEAL, 2 Price: $1.25 |
| 21 |
1WD-F163E-01-00 |
COVER, REAR FENDER 2 This part replaces 1WD-F163E-00-00. Price: $11.49 |
| 22 |
90269-06816-00 |
RIVET Price: $1.70 |
| 23 |
B1X-F1629-00-00 |
GUARD, MUD This part replaces 1WD-F1629-01-00. Price: $33.99 |
| 24 |
1WD-F1617-01-00 |
BRACKET, FENDER This part replaces 1WD-F1617-00-00. Price: $19.49 |
| 25 |
90111-05021-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 26 |
90183-050A7-00 |
NUT, SPRING Price: $3.80 |
| 27 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 28 |
90111-05018-00 |
BOLT, HEX. SOCKET BUTTON Price: $8.49 |
| 29 |
1WD-F1688-00-00 |
BRACKET, REAR STAY Price: $8.49 |
| 30 |
1WD-F1689-00-00 |
BRACKET, REAR STAY 2 Price: $24.99 |
| 31 |
90387-07573-00 |
COLLAR This part replaces 90387-066J9-00. Price: $10.49 |
| 32 |
90387-068L9-00 |
COLLAR Price: $3.05 |
| 33 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
| 34 |
1WD-F1621-01-00 |
FLAP This part replaces 1WD-F1621-00-00. Price: $4.90 |
| 35 |
90109-05003-00 |
BOLT Price: $8.49 |
| 36 |
1WD-F163A-00-00 |
COVER, REAR FENDER 1 Price: $4.45 |
