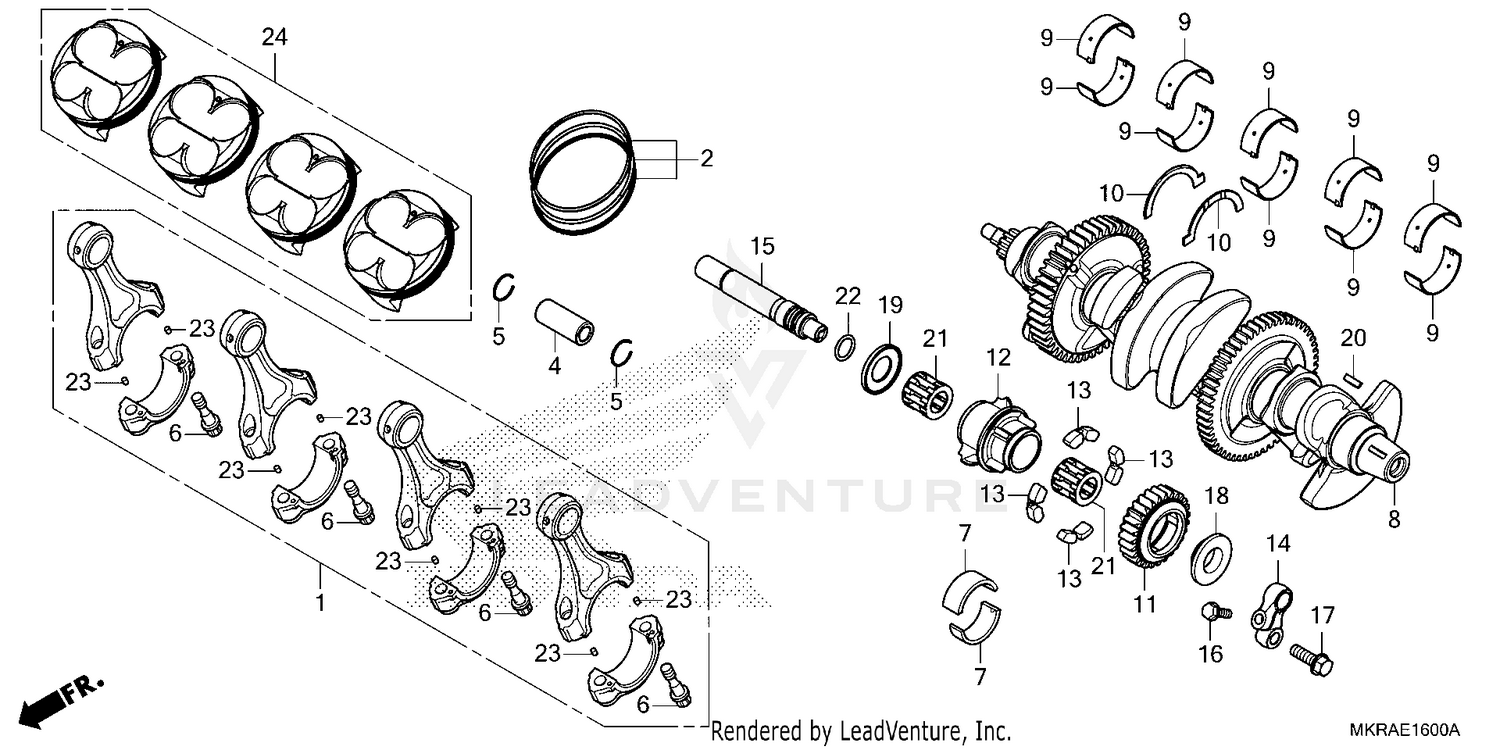

| Ref | Part Number | Description |
|---|
| 1 |
06130-MKR-DH0 |
ROD SET, CONNECTING Price: $2,775.27 |
| 2 |
13010-MKR-DH0 |
RING SET, PISTON Price: $49.49 |
| 4 |
13111-MKR-D10 |
PIN, PISTON Price: $88.56 |
| 5 |
13112-MKR-D10 |
CLIP, PISTON PIN (18MM) Price: $2.95 |
| 6 |
13213-MKR-D11 |
BOLT, CONNECTING ROD Price: $8.58 |
| 7 |
13224-MKR-DH1 |
BEARING A, CONN ROD Price: $14.73 |
| 7 |
13225-MKR-DH1 |
BEARING B, CONN ROD Price: $14.73 |
| 7 |
13226-MKR-DH1 |
BEARING C, CONN ROD Price: $14.73 |
| 7 |
13227-MKR-DH1 |
BEARING D, CONN ROD Price: $14.73 |
| 7 |
13228-MKR-DH1 |
BEARING E, CONN ROD Price: $14.73 |
| 8 |
13300-MKR-DH0 |
CRANKSHAFT Price: $1,191.11 |
| 9 |
13324-MKR-DH1 |
BRG B, CRANKSHAFT Price: $14.55 |
| 9 |
13325-MKR-DH1 |
BRG C, CRANKSHAFT Price: $14.55 |
| 9 |
13326-MKR-DH1 |
BRG D, CRANKSHAFT Price: $14.55 |
| 9 |
13327-MKR-DH1 |
BRG E, CRANKSHAFT Price: $14.55 |
| 9 |
13328-MKR-DH1 |
BEARING F Price: $14.55 |
| 10 |
13331-MKR-DH1 |
WASHER, THRUST Price: $6.22 |
| 11 |
13421-MKR-DH0 |
GEAR, BALANCER (27T) Price: $81.16 |
| 12 |
13430-MKR-DH0 |
WEIGHT, BALANCER Price: $108.18 |
| 13 |
13435-MKR-D10 |
RUBBER, DAMPER Price: $3.36 |
| 14 |
13436-MM5-000 |
HOLDER, BALANCER SHAFT Price: $63.35 |
| 15 |
13440-MKF-D40 |
SHAFT, BALANCER Price: $142.05 |
| 16 |
90031-GHB-650 |
BOLT, FLANGE (6X18) Price: $2.45 |
| 17 |
90037-GHB-680 |
BOLT, FLANGE (8X25) Price: $2.62 |
| 18 |
90457-MAT-000 |
WASHER A, BALANCER SIDE Price: $6.49 |
| 19 |
90458-MAT-000 |
WASHER B, BALANCER SIDE Price: $6.02 |
| 20 |
90701-HB6-010 |
KEY, WOODRUFF (25X14X4) Price: $4.76 |
| 21 |
91015-MEL-003 |
BEARING B, NEEDLE (18X27X23.8) (BLUE) Price: $23.91 |
| 21 |
91016-MEL-003 |
BEARING C, NEEDLE (18X27X23.8) (WHITE) Price: $23.91 |
| 21 |
91017-MEL-003 |
BEARING D, NEEDLE (18X27X23.8) (GREEN) Price: $22.87 |
| 22 |
91302-377-000 |
O-RING (15X2.5) (Honda Code 0386995) Price: $6.67 |
| 23 |
94303-03050 |
PIN, DOWEL (3X5) Price: $2.35 |
