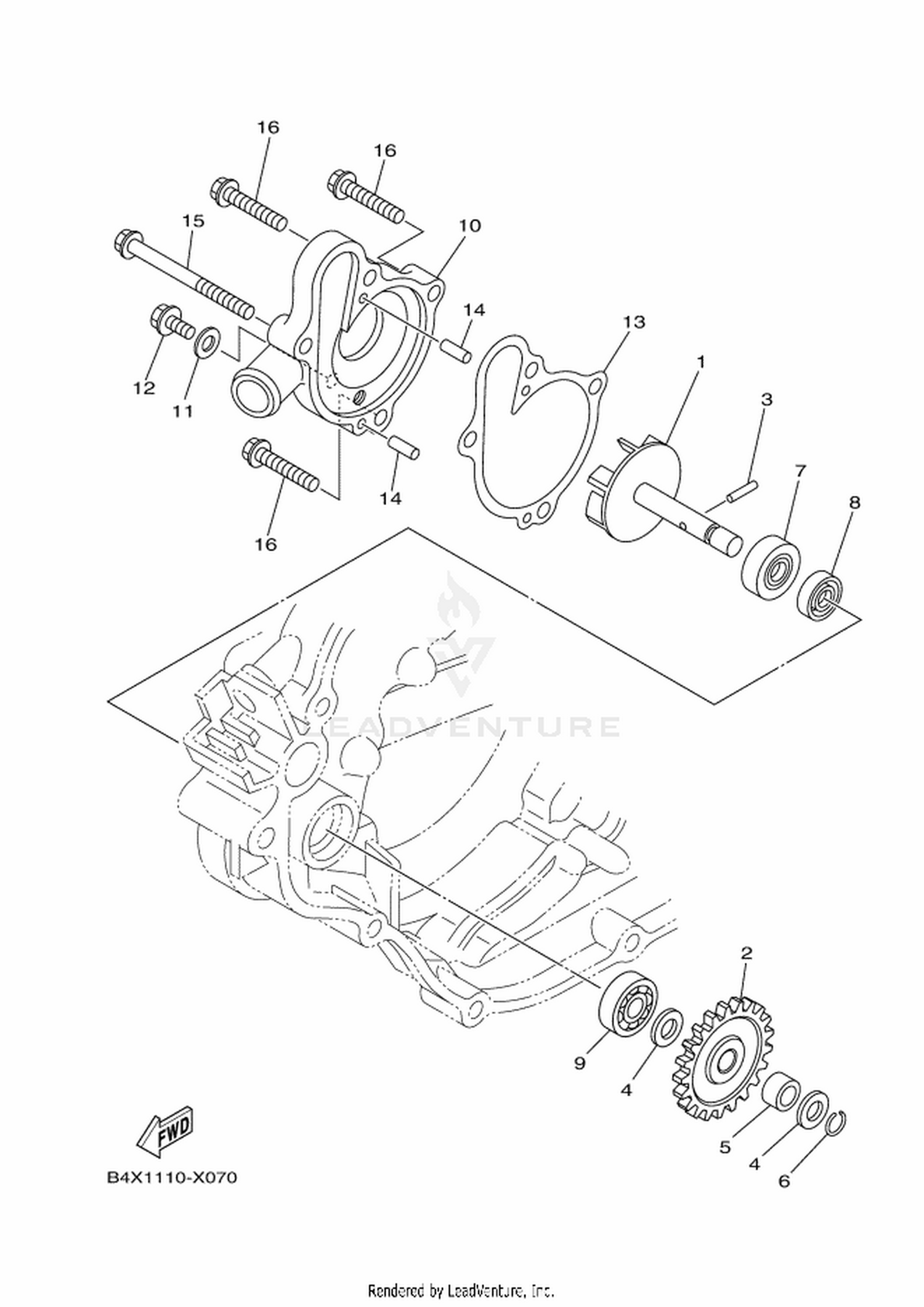

07 WATER PUMP
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1C3-12450-01 | IMPELLER SHAFT ASSY Price: Call Us |
| 2 | 1C3-12453-10 | GEAR Price: Call Us |
| 3 | 93603-12007 | PIN, DOWEL Price: Call Us |
| 4 | 90201-08512 | WASHER, PLATE Price: Call Us |
| 5 | 90387-08032 | COLLAR Price: Call Us |
| 6 | 93440-07182 | CIRCLIP Price: Call Us |
| 7 | 93102-08004 | OIL SEAL Price: Call Us |
| 8 | 93102-08307 | OIL SEAL Price: Call Us |
| 10 | 1C3-12422-00 | COVER, HOUSING Price: Call Us |
| 11 | 90430-06014 | GASKET Price: Call Us |
| 12 | 95022-06010 | BOLT, FLANGE Price: Call Us |
| 13 | 1C3-12428-00 | GASKET, HOUSING COVER 2 Price: Call Us |
| 14 | 93604-10011 | PIN, DOWEL Price: Call Us |
| 15 | 95E32-06065 | BOLT, FLANGE DEEP RECESS Price: Call Us |
