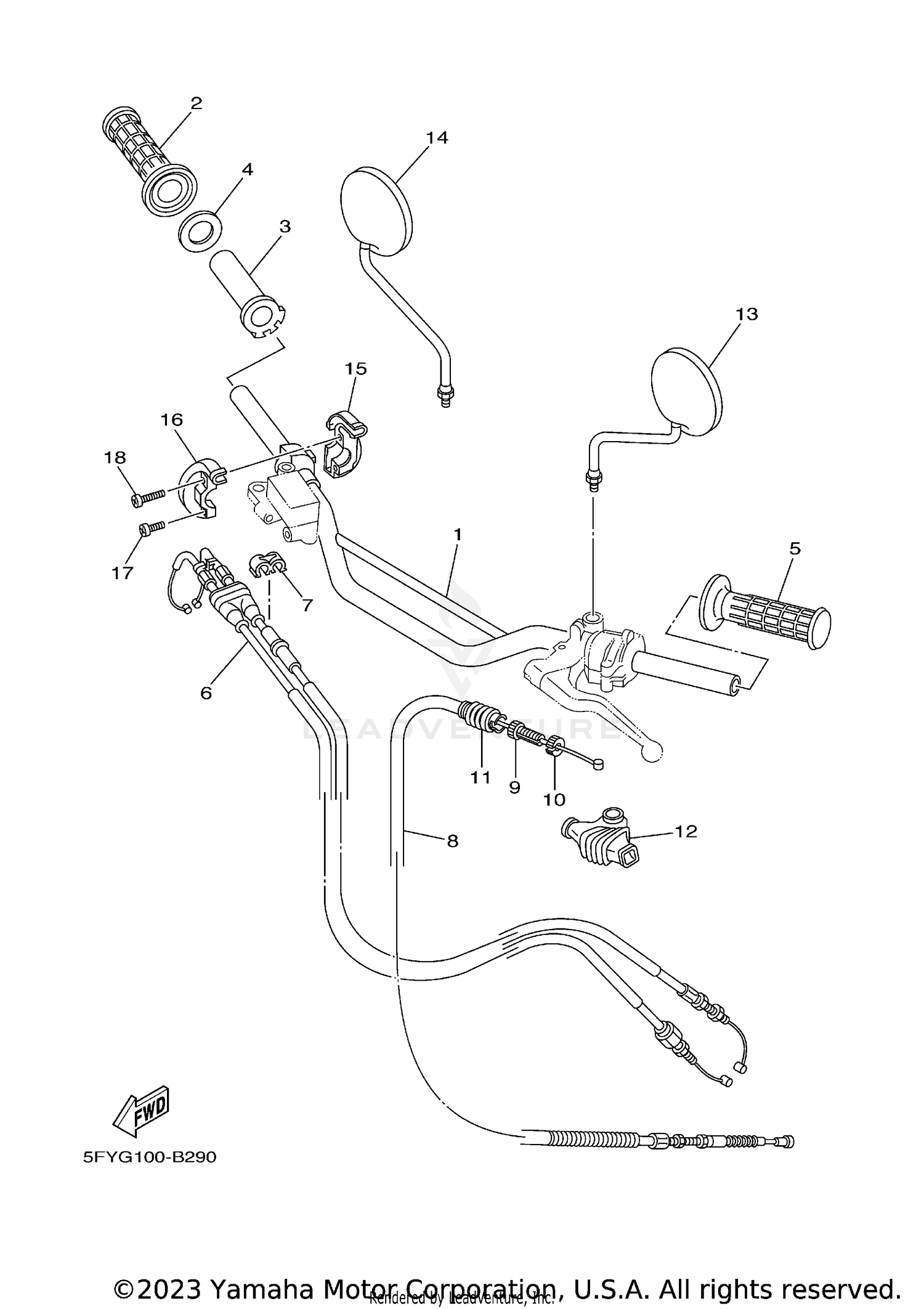

STEERING HANDLE & CABLE
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5LB-26111-00-00 | HANDLEBAR Price: $72.99 |
| 2 | 1LX-26242-01-00 | GRIP (RIGHT) Price: $37.99 |
| 3 | 5BE-26243-00-00 | TUBE, THROTTLE GUIDE Price: $18.99 |
| 4 | 3Y1-26249-00-00 | RING, LEAF Price: $10.99 |
| 5 | 1LX-26241-01-00 | GRIP (LEFT) Price: $36.99 |
| 6 | 5LB-26302-03-00 | THROTTLE CABLE ASSY Price: $56.99 |
| 7 | 90464-06214-00 | CLAMP Price: $3.90 |
| 8 | 5EK-26335-00-00 | CABLE, CLUTCH Price: $49.99 |
| 9 | 90123-08002-00 | BOLT Price: $10.49 |
| 10 | 90179-08030-00 | NUT Price: $5.99 |
| 11 | 1E6-26342-00-00 | BOOT, CABLE Price: $33.99 |
| 12 | 1E6-26372-00-00 | COVER, HANDLE LEVER 1 Price: $25.99 |
| 13 | 5Y1-26290-11-00 | MIRROR ASSY., 2 This part replaces 3Y1-26290-10-00. Price: $82.99 |
| 14 | 3Y1-26290-00-00 | BACK MIRROR ASSY (R.H) Price: $58.99 |
| 15 | 3LN-26281-01-00 | CAP, GRIP UPPER Price: $38.99 |
| 16 | 3LN-26282-01-00 | CAP, GRIP UNDER Price: $34.99 |
| 17 | 98517-05020-00 | SCREW, PAN HEAD This part replaces 98507-05020-00. Price: $1.75 |
