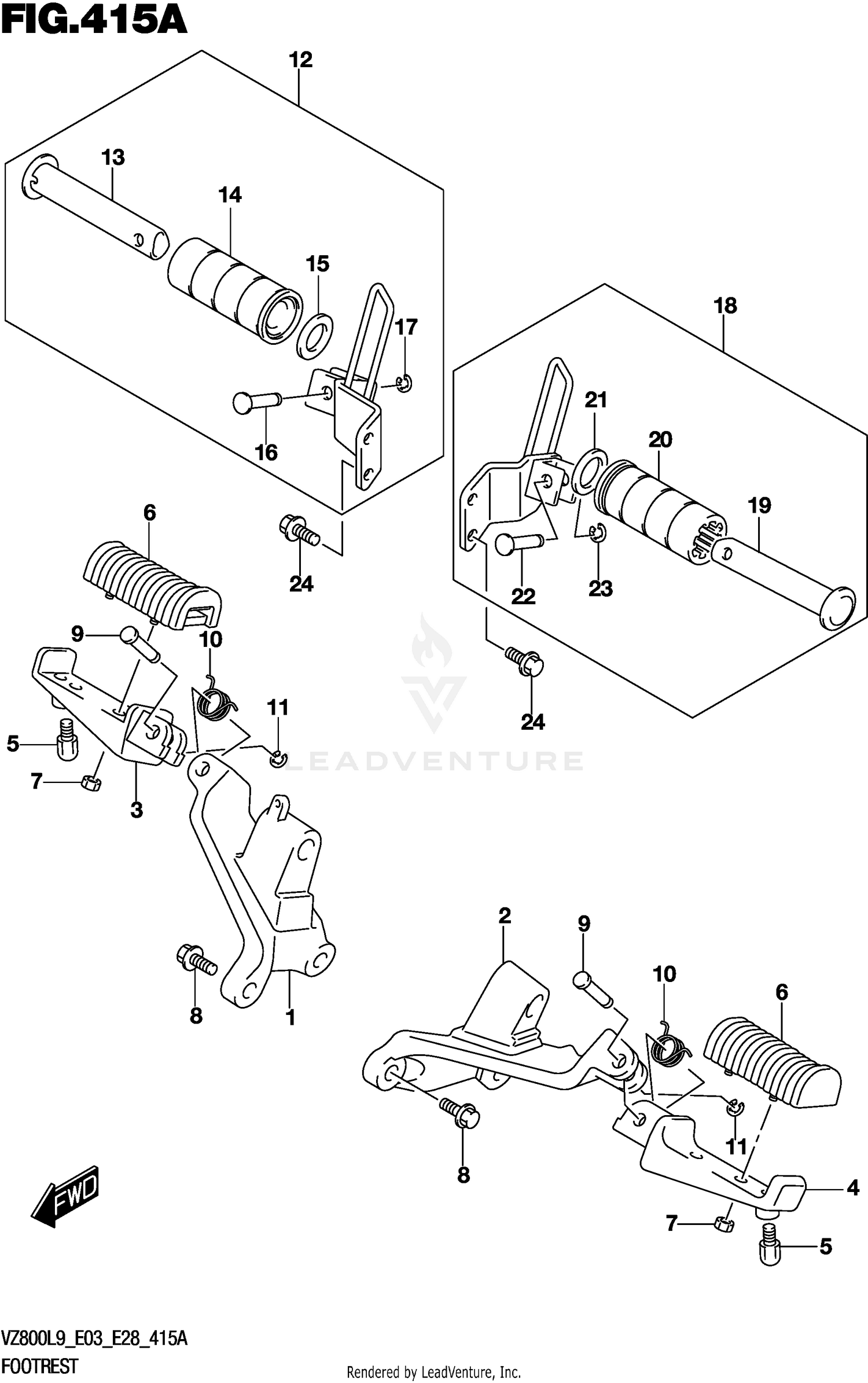

FOOTREST
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 43511-41F00 | BRACKET Price: $192.57 |
| 2 | 43521-41F10 | BRACKET Price: $235.44 |
| 3 | 43531-41F02 | BAR Price: $57.01 |
| 4 | 43541-41F02 | BAR Price: $55.26 |
| 6 | 43550-41F00 | RUBBER Price: $28.83 |
| 7 | 08319-2106B | NUT Price: $2.79 |
| 8 | 01580-1030B | BOLT Price: $5.45 |
| 9 | 09208-08010 | PIN (8X33.2) Price: $3.41 |
| 10 | 09448-18022 | SPRING Price: $4.61 |
| 11 | 08332-1106A | E RING Price: $1.73 |
| 12 | 43600-41F60 | FOOTREST ASSY,PILLION RH Price: $86.15 |
| 15 | 09160-19024 | WASHER (19.5X32X2) Price: $3.12 |
| 17 | 08332-1104B | E-RING Price: $2.18 |
| 18 | 43700-41F60 | FOOTREST ASSY,PILLION LH Price: $86.15 |
| 21 | 09160-19024 | WASHER (19.5X32X2) Price: $3.12 |
| 23 | 08332-1104B | E-RING Price: $2.18 |
