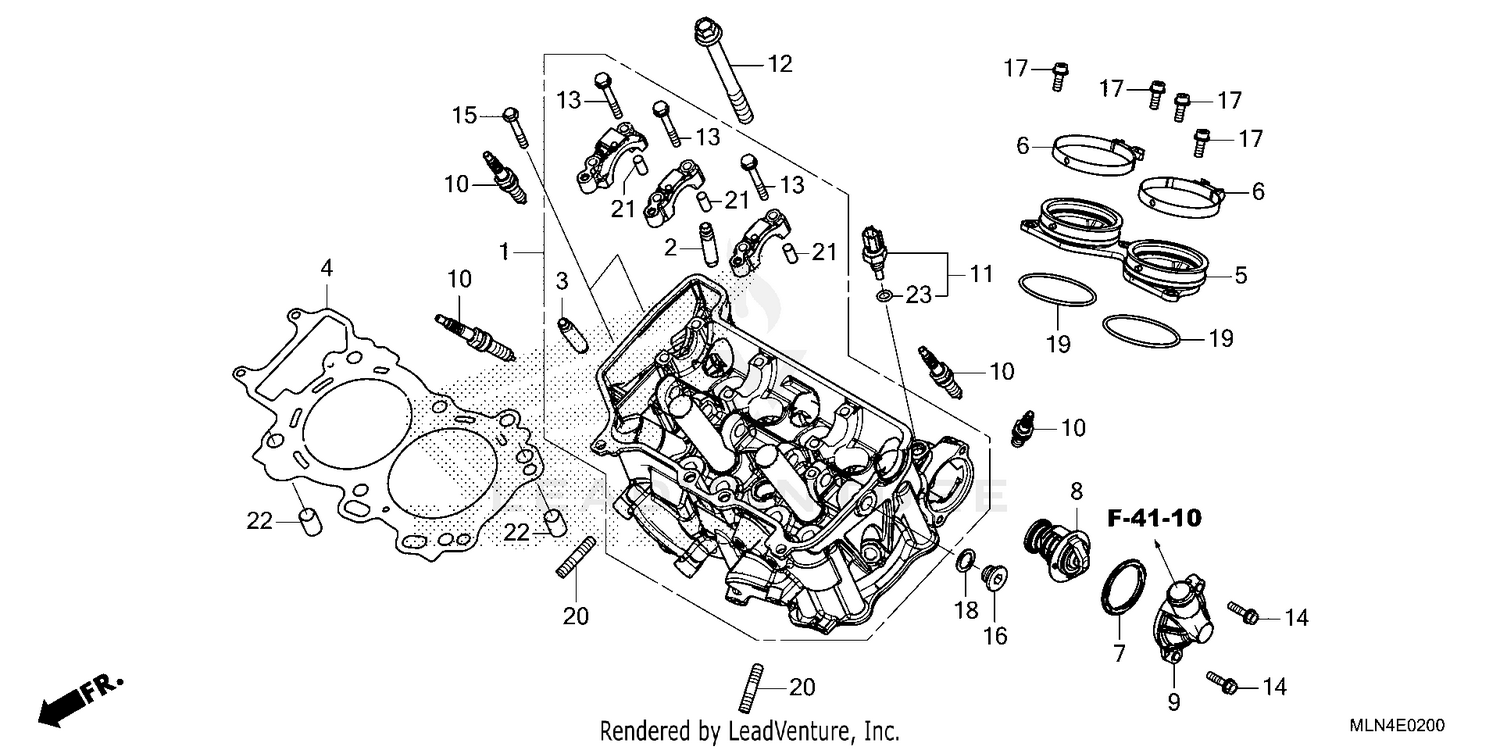

| Ref | Part Number | Description |
|---|
| 1 |
12010-MLN-E00 |
CYLINDER HEAD BARE Price: $1,491.61 |
| 2 |
12204-HL4-305 |
GUIDE, VALVE (OVER SIZE) Price: $19.31 |
| 3 |
12205-HL4-305 |
GUIDE, EX. VALVE (OVER SIZE) Price: $19.31 |
| 4 |
12251-MKS-E01 |
GASKET, CYLINDER HEAD Price: $54.40 |
| 5 |
16210-MKS-E00 |
INSULATOR, THROTTLE BODY Price: $89.18 |
| 6 |
16217-MKS-E00 |
BAND, INSULATOR Price: $12.27 |
| 7 |
19305-KV3-010 |
RUBBER, THERMOSTAT Price: $7.62 |
| 8 |
19320-MFJ-D01 |
THERMOSTAT Price: $41.76 |
| 9 |
19321-MLA-A00 |
COVER, THERMOSTAT Price: $41.25 |
| 10 |
31909-MJP-G51 |
SPARK PLUG (SILMAR8A9S) (NGK) Price: $35.42 |
| 11 |
37870-KZR-601 |
SENSOR ASSY., WATER TEMPERATURE Price: $10.75 |
| 12 |
90007-MKS-E00 |
BOLT-WASHER (12X123) Price: $11.16 |
| 13 |
90017-MA6-000 |
BOLT, FLANGE (6X45.5) Price: $4.20 |
| 14 |
90026-GHB-670 |
BOLT, FLANGE (6X22) Price: $2.76 |
| 15 |
90026-GHB-740 |
BOLT, FLANGE (6X40) Price: $2.73 |
| 16 |
90032-MJP-G50 |
BOLT, SEALING (14MM) Price: $7.71 |
| 17 |
90071-MEL-000 |
BOLT, FLANGE SOCKET (6X16) Price: $2.56 |
| 18 |
90544-KF0-000 |
WASHER, SEALING (14MM) Price: $4.09 |
| 19 |
91301-MKS-E00 |
O-RING (49.3X2.5) Price: $8.04 |
| 20 |
92900-08025-0B |
BOLT, STUD (8X25) Price: $2.30 |
| 21 |
94301-08200 |
PIN, DOWEL (8X20) (Honda Code 1417369) Price: $2.35 |
| 22 |
94301-14200 |
PIN A, DOWEL (14X20) Price: $2.58 |
