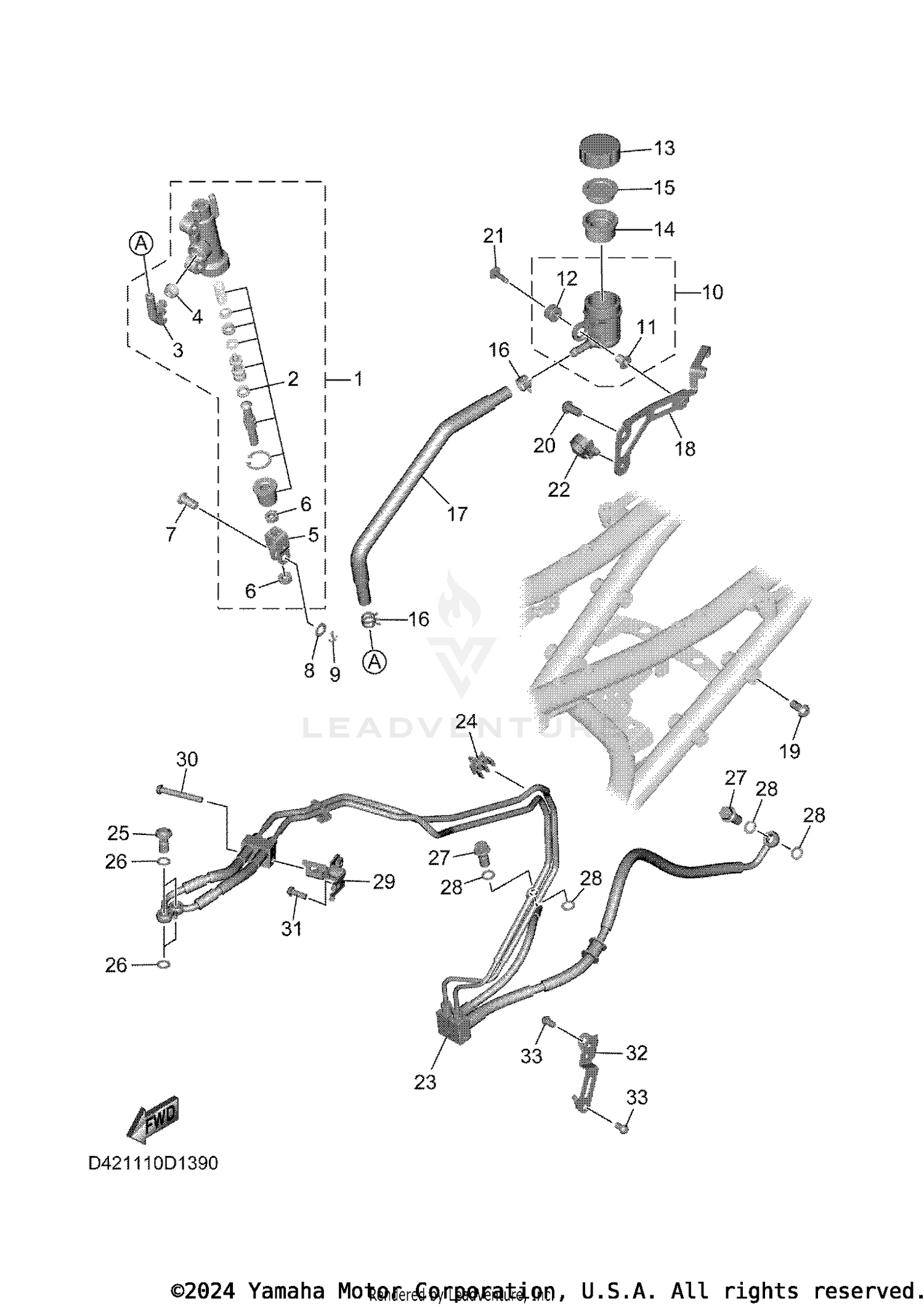

| Ref | Part Number | Description |
|---|
| 1 |
56P-2583V-01-00 |
RR. MASTER CYLINDE Price: $144.99 |
| 2 |
5VX-25808-51-00 |
CYLINDER KIT, MASTER This part replaces 56P-25808-50-00. Price: $103.99 |
| 4 |
4BP-2585F-01-00 |
O-RING Price: $11.99 |
| 5 |
4BP-27222-02-00 |
JOINT Price: $32.99 |
| 6 |
90170-08010-00 |
NUT Price: $9.49 |
| 7 |
90240-08005-00 |
PIN, CLEVIS Price: $9.49 |
| 8 |
90201-08070-00 |
WASHER, PLATE Price: $8.49 |
| 9 |
91490-20015-00 |
PIN. COTTER This part replaces 91401-20012-00. Price: $2.20 |
| 10 |
BAM-25894-50-00 |
TANK, RESERVOIR Price: $69.99 |
| 11 |
90387-05028-00 |
COLLAR Price: $6.49 |
| 12 |
2C0-26326-00-00 |
GROMMET Price: $7.49 |
| 13 |
2C0-25852-00-00 |
CAP, RESERVOIR Price: $8.49 |
| 14 |
2VN-25854-00-00 |
DIAPHRAGM, RESERVOIR Price: $26.99 |
| 15 |
2VN-25855-00-00 |
BUSH, DIAPHRAGM Price: $11.99 |
| 16 |
90467-11044-00 |
CLIP Price: $9.49 |
| 17 |
D42-25895-50-00 |
HOSE, RESERVOIR Price: $17.99 |
| 18 |
D42-27333-00-00 |
BRKT Price: $47.99 |
| 19 |
92017-08016-00 |
BOLT, BUTTON HEAD Price: $6.49 |
| 20 |
92017-08016-00 |
BOLT, BUTTON HEAD Price: $6.49 |
| 21 |
90111-05065-00 |
BOLT,HEX. SOCKET BUTTON Price: $1.75 |
| 22 |
90464-17008-00 |
CLAMP Price: $2.85 |
| 23 |
D42-2584C-00-00 |
HOSE, BRAKE Price: $237.99 |
| 24 |
90464-07009-00 |
CLAMP Price: $2.10 |
| 25 |
90401-10020-00 |
BOLT, UNION Price: $10.49 |
| 26 |
90430-10005-00 |
GASKET Price: $9.49 |
| 27 |
90401-10172-00 |
BOLT, UNION Price: $6.49 |
| 28 |
90430-10005-00 |
GASKET Price: $9.49 |
| 29 |
BLW-2175T-00-00 |
BRACKET 1 Price: $17.49 |
| 30 |
92012-06045-00 |
BOLT, BUTTON HEAD Price: $1.95 |
| 31 |
92012-06016-00 |
BOLT, BUTTON HEAD Price: $9.49 |
| 32 |
D42-2161J-00-00 |
BRACKET 8 Price: $13.49 |
