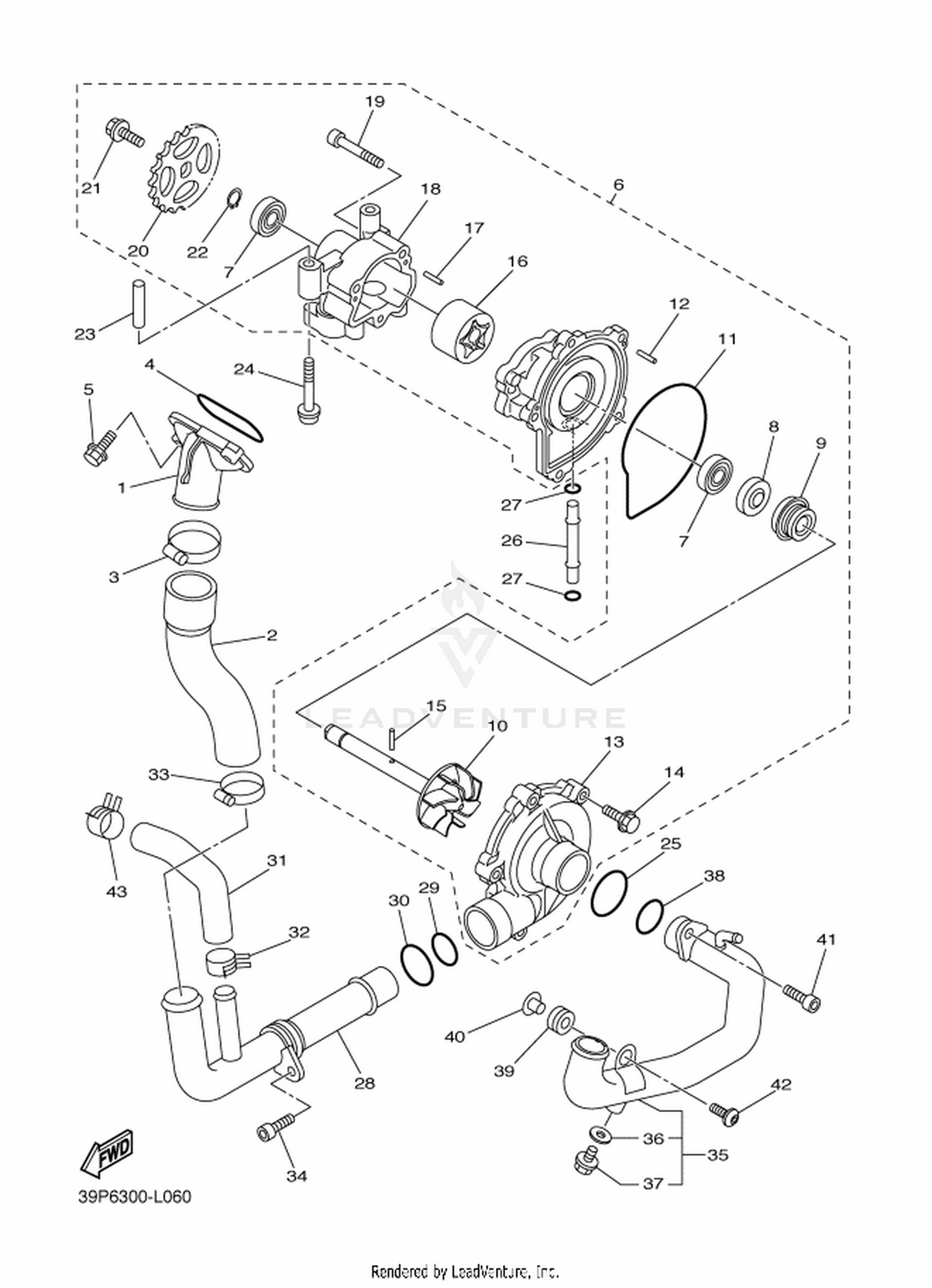

| Ref | Part Number | Description |
|---|
| 1 |
14B-12469-10 |
JOINT 1 Price: Call Us |
| 2 |
39P-12576-00 |
HOSE 1 Price: Call Us |
| 3 |
90450-38040 |
HOSE CLAMP ASSY Price: Call Us |
| 4 |
93210-46044 |
O-RING Price: Call Us |
| 5 |
95024-06025 |
BOLT, FLANGE Price: Call Us |
| 6 |
4C8-12420-21 |
WATER PUMP ASSY Price: Call Us |
| 7 |
93306-00106 |
BEARING Price: Call Us |
| 8 |
93102-12372 |
OIL SEAL Price: Call Us |
| 9 |
5VK-12438-00 |
SEAL, MECHANICAL Price: Call Us |
| 12 |
93603-12007 |
PIN, DOWEL Price: Call Us |
| 14 |
90105-06065 |
BOLT, FLANGE Price: Call Us |
| 15 |
93603-17070 |
PIN, DOWEL Price: Call Us |
| 17 |
93603-12007 |
PIN, DOWEL Price: Call Us |
| 19 |
91312-06040 |
BOLT Price: Call Us |
| 21 |
90105-06066 |
BOLT, FLANGE Price: Call Us |
| 22 |
99009-12400 |
CIRCLIP Price: Call Us |
| 23 |
91808-30031 |
PIN, DOWEL Price: Call Us |
| 24 |
90110-06167 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 25 |
93210-357A2 |
O-RING Price: Call Us |
| 26 |
4XV-12485-00 |
PIPE 5 Price: Call Us |
| 27 |
93210-06667 |
O-RING Price: Call Us |
| 28 |
39P-12481-00 |
PIPE 1 Price: Call Us |
| 29 |
93210-235A1 |
O-RING Price: Call Us |
| 30 |
93210-27370 |
O-RING Price: Call Us |
| 31 |
5VY-12588-00 |
HOSE 5 Price: Call Us |
| 32 |
90467-200A0 |
CLIP Price: Call Us |
| 33 |
90450-32006 |
HOSE CLAMP ASSY Price: Call Us |
| 34 |
90110-06161 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 35 |
2D1-12484-01 |
PIPE 4 Price: Call Us |
| 36 |
90430-06014 |
GASKET Price: Call Us |
| 38 |
93210-235A1 |
O-RING Price: Call Us |
| 39 |
90480-12010 |
GROMMET Price: Call Us |
| 41 |
90110-06161 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 42 |
90149-06022 |
SCREW Price: Call Us |
