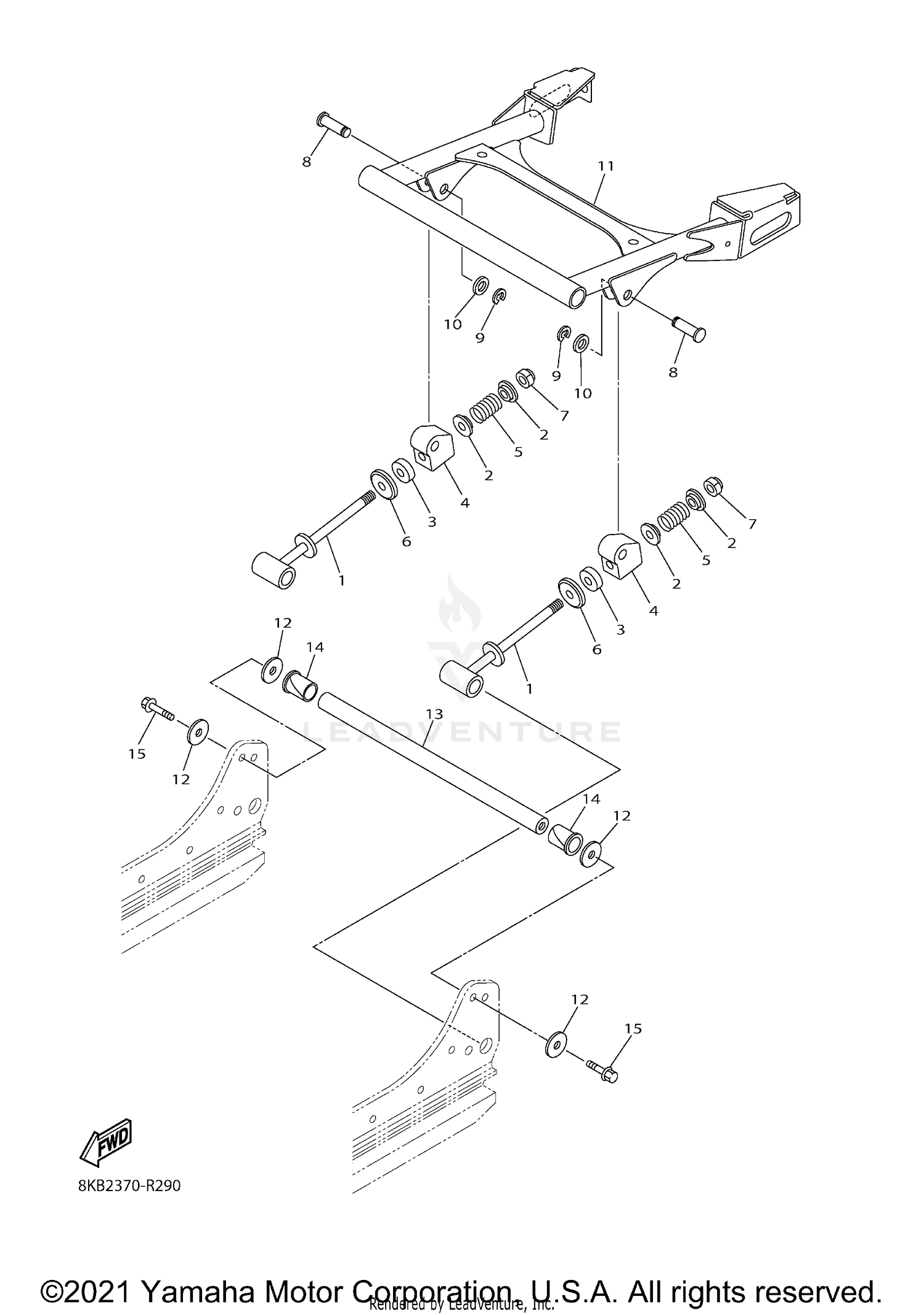

TRACK SUSPENSION 3
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 83R-47337-10-00 | SHAFT, PIVOT Price: $33.99 |
| 2 | 83R-23768-00-00 | SEAT, SPRING 1 Price: $6.49 |
| 3 | 83R-47335-00-00 | SPRING Price: $12.99 |
| 4 | 8KA-47446-00-00 | HOOK 1 Price: $19.49 |
| 5 | 90501-380A0-00 | SPRING, COMPRESSION Price: $8.49 |
| 6 | 8KW-23768-00-00 | SEAT, SPRING 1 Price: $5.49 |
| 7 | 90185-12058-00 | NUT, SELF-LOCKING Price: $22.99 |
| 8 | 90249-12006-00 | PIN Price: $8.49 |
| 9 | 99009-12400-00 | CIRCLIP Price: $3.59 |
| 10 | 90201-12055-00 | WASHER, PLATE Price: $9.49 |
| 11 | 8KA-47333-00-00 | ARM, PIVOT 3 Price: $296.99 |
| 12 | 90201-10742-00 | WASHER, PLATE Price: $9.49 |
| 13 | 83R-47485-02-00 | SHAFT 3 Price: $83.99 |
| 14 | 90381-19111-00 | BUSH, SOLID Price: $17.49 |
