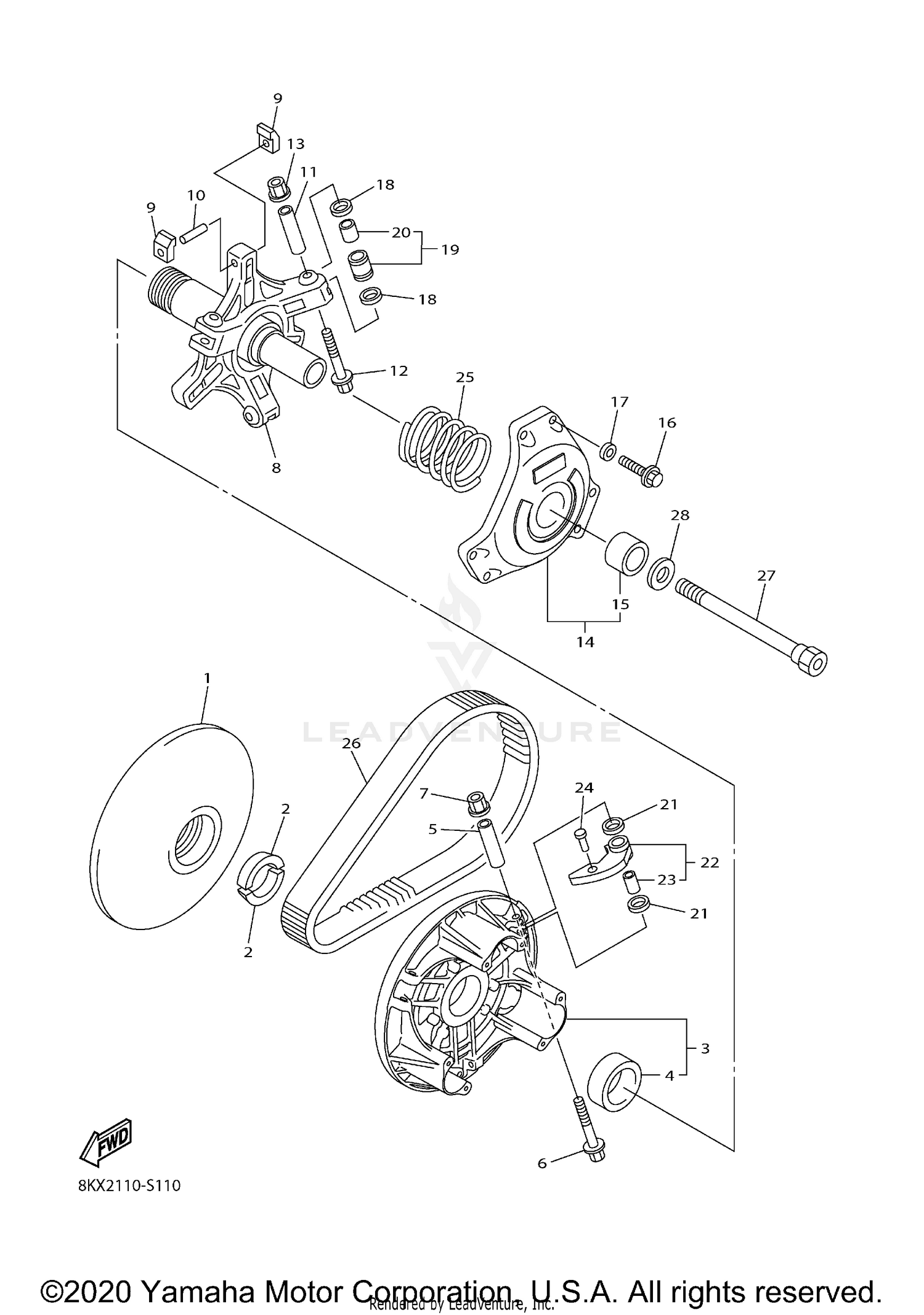

| Ref | Part Number | Description |
|---|
| 1 |
8FA-17611-01-00 |
SHEAVE, PRIMARY FIXED Price: $223.99 |
| 2 |
8V0-17639-00-00 |
STOPPER Price: $16.49 |
| 3 |
8BV-17620-03-00 |
PRIMARY SLIDING SHEAVE COMP. Price: $261.99 |
| 4 |
90384-41242-00 |
BUSH, BIMETAL FORMED Price: $65.99 |
| 5 |
90387-0514T-00 |
COLLAR Price: $18.49 |
| 6 |
90105-05644-00 |
BOLT, FLANGE Price: $2.55 |
| 7 |
95607-05200-00 |
NUT, U FLANGE This part replaces 95602-05200-00. Price: $10.49 |
| 8 |
8ES-17640-02-00 |
SPIDER COMPLETE Price: $492.99 |
| 9 |
8BW-17653-00-00 |
SLIDER Price: $17.99 |
| 10 |
91609-50032-00 |
PIN, SPRING Price: $4.50 |
| 11 |
90387-0514U-00 |
COLLAR Price: $22.99 |
| 12 |
90105-05644-00 |
BOLT, FLANGE Price: $2.55 |
| 13 |
95607-05200-00 |
NUT, U FLANGE This part replaces 95602-05200-00. Price: $10.49 |
| 14 |
8BV-17630-12-00 |
PRIMARY SHEAVE CAP COMP. Price: $102.99 |
| 15 |
90380-28237-00 |
BUSH, SOLID Price: $41.99 |
| 16 |
97017-06030-00 |
BOLT,HEXAGON Price: $3.90 |
| 17 |
92907-06600-00 |
WASHER, PLATE Price: $1.00 |
| 18 |
90202-09227-00 |
WASHER, PLATE Price: $11.49 |
| 19 |
8FG-17624-00-00 |
ROLLER, COMP Price: $113.99 |
| 20 |
90386-09001-00 |
BUSH Price: $69.99 |
| 21 |
90202-08204-00 |
WASHER, PLATE Price: $10.49 |
| 22 |
8AT-17605-10-00 |
WEIGHT COMP Price: $118.99 |
| 23 |
90386-08002-00 |
BUSH Price: $12.99 |
| 26 |
8DN-17641-01-00 |
V-BELT Price: $89.99 |
| 27 |
8V0-17647-10-00 |
BOLT (L=156.5MM) Price: $28.99 |
