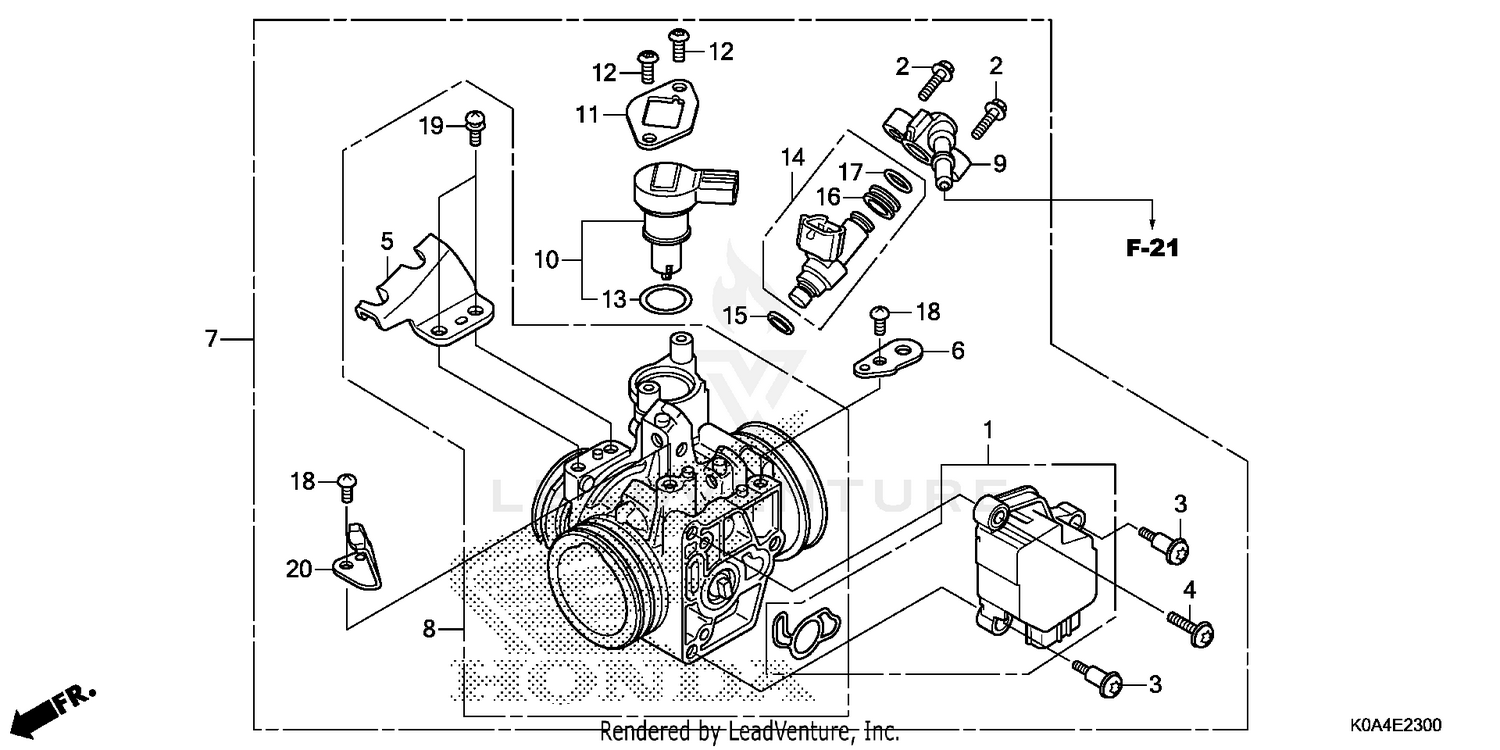

| Ref | Part Number | Description |
|---|
| 1 |
16060-K0A-E11 |
SENSOR SET Price: $108.82 |
| 2 |
16080-KPH-701 |
BOLT, FLANGE (5X20) Price: $5.65 |
| 3 |
16081-KYJ-901 |
SCREW, TORX (5X8.7) Price: $3.13 |
| 4 |
16082-KYJ-901 |
SCREW, TORX (5X17) Price: $2.47 |
| 5 |
16169-MFR-671 |
STAY, WIRE Price: $19.55 |
| 6 |
16196-HP6-A01 |
STAY, HARNESS CLAMP Price: $10.75 |
| 7 |
16400-K0A-E11 |
BODY ASSY., THROTTLE (9SA A) Price: $453.51 |
| 8 |
16410-K0A-E11 |
BODY SET Price: $107.49 |
| 9 |
16422-K0A-E11 |
JOINT, INJECTOR Price: $77.31 |
| 10 |
16430-KYJ-901 |
VALVE SET, IDLE AIR CONTROL Price: $189.13 |
| 11 |
16432-HP5-601 |
PLATE, IDLE AIR CONTROL VALVE Price: $4.42 |
| 12 |
16433-HN8-A61 |
SCREW, TORX Price: $0.42 |
| 13 |
16435-HN8-A61 |
O-RING (17.8X1.9) Price: $10.73 |
| 14 |
16450-MFE-641 |
INJECTOR ASSY., FUEL Price: $207.85 |
| 15 |
16472-MCW-000 |
SEAL RING, INJECTOR Price: $2.73 |
| 16 |
16473-P7A-004 |
CUSHION RING, INJECTOR Price: $8.65 |
| 17 |
91301-P7A-004 |
O-RING (7.8X1.9) Price: $4.22 |
| 18 |
93500-05010-0H |
SCREW, PAN (5X10) Price: $0.95 |
| 19 |
93892-05012-08 |
SCREW-WASHER (5X12) (Honda Code 0368621) Price: $1.20 |
