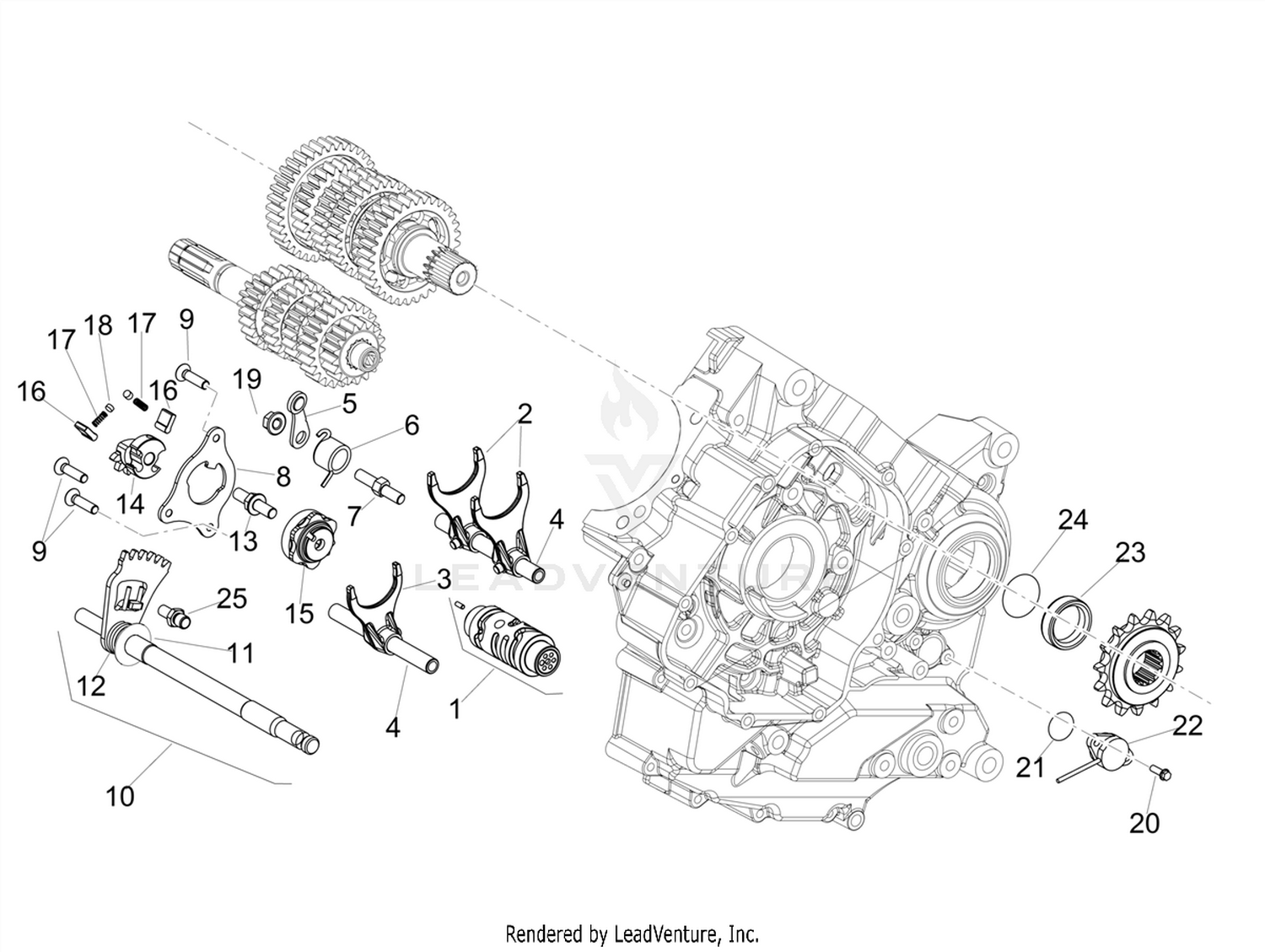

| Ref | Part Number | Description |
|---|
| 1 |
1A004527 |
Shift cam cpl. Price: $116.47 |
| 2 |
849360 |
Fork Price: $16.51 |
| 3 |
874599 |
Fork output Price: $31.65 |
| 4 |
873772 |
Fork shaft Price: $8.90 |
| 5 |
872154 |
Index assy. lever Price: $10.23 |
| 6 |
B013306 |
Gear stop lever spring Price: $3.98 |
| 7 |
B013928 |
Threaded pin Price: $4.89 |
| 8 |
871649 |
Selector lock plate Price: $7.40 |
| 10 |
B014437 |
Selector shaft Price: $45.43 |
| 11 |
971718 |
Flat washer Price: $2.70 |
| 12 |
B014440 |
Spring Price: $2.70 |
| 13 |
878870 |
Threaded pin Price: $24.48 |
| 14 |
872560 |
Shift cam plate Price: $54.65 |
| 15 |
B017809 |
Selector drum Price: $39.00 |
| 16 |
AP9150069 |
Lever Price: $5.35 |
| 17 |
AP9150064 |
Spring Price: $3.98 |
| 18 |
AP9150070 |
Spring pillar Price: $7.97 |
| 19 |
597565 |
Self locking nut Price: $0.37 |
| 20 |
B016796 |
Torx convex big end screw Price: $10.19 |
| 21 |
877441 |
Packing Price: $0.74 |
| 22 |
857265 |
Gear position sensor Price: $146.58 |
| 23 |
974558 |
Spacer Price: $9.15 |
| 24 |
871901 |
Gasket Price: $3.57 |
