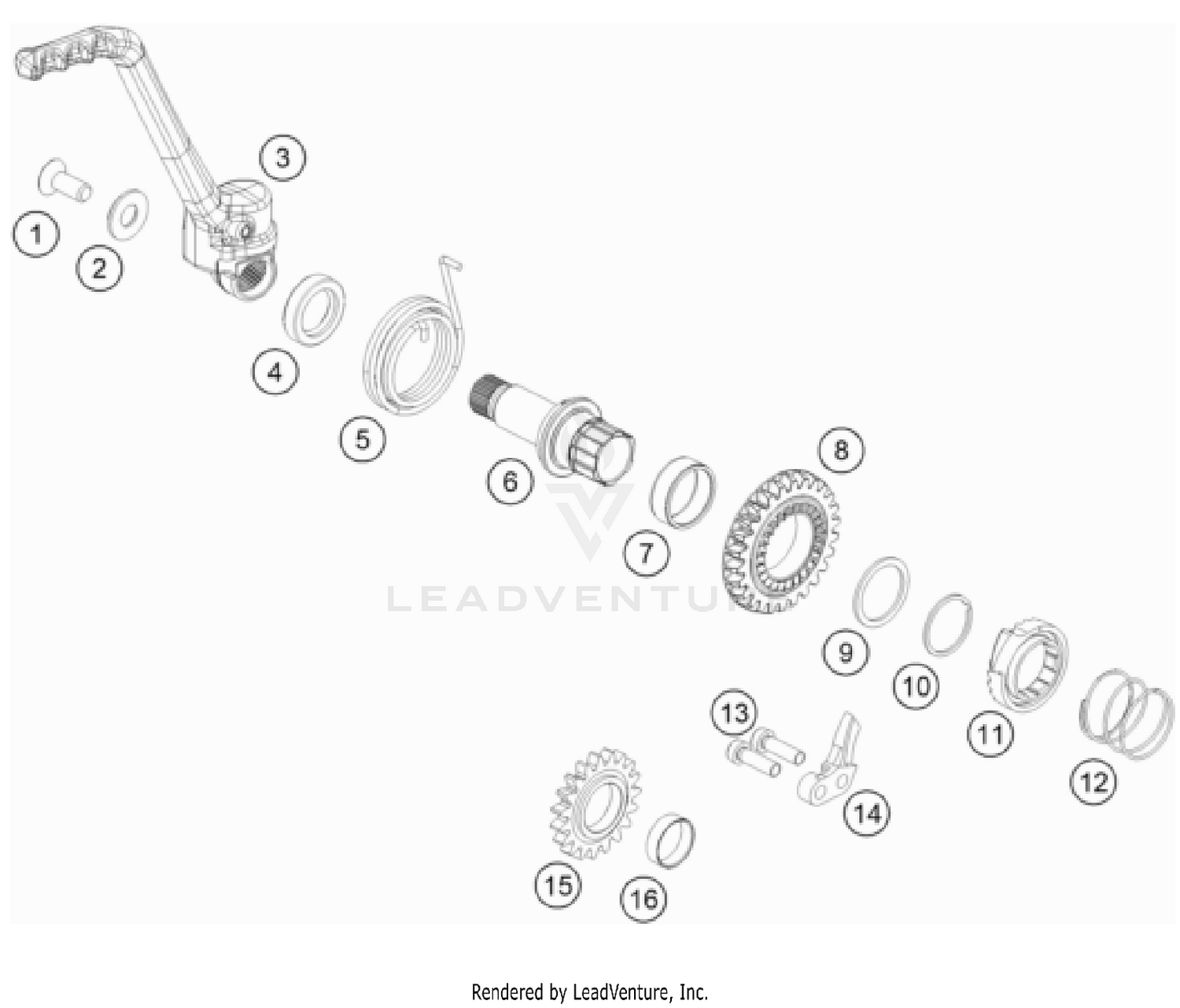

KICK STARTER
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0019080206S | FLAT HEAD SCREW M. ISA45 M8X20 Price: $2.99 |
| 2 | 54633037000 | WASHER 8MM GALVANIZED Price: $7.14 |
| 3 | 47233070044 | Kick starter cpl. Price: $123.96 |
| 4 | 0760193070 | SHAFT SEAL RING 19X30X7 B Price: $6.59 |
| 5 | 50433054200 | Kick-starter spring Price: $6.15 |
| 6 | 79233050000 | KICK STARTER SHAFT Price: $104.60 |
| 7 | 0405252910 | NEEDLE BEAR K 25X29X10 Price: $10.44 |
| 8 | 50533051026 | Kickstart gear t26 Price: $53.67 |
| 9 | 54833044000 | STOP DISC 25X31X1,5 Price: $6.15 |
| 10 | 0417025000 | CIRCLIP SW25 Price: $3.99 |
| 11 | 50433052000 | KICK STARTER RATCHET Price: $60.93 |
| 12 | 58033028000 | RATCHET GEAR SPRING 1,2 MM Price: $2.99 |
| 13 | 014580060206S | Cyl. screw ISO 14580 M6x20 SS Price: $1.99 |
| 14 | 59033069000 | BUMP PART Price: $15.61 |
| 15 | 50533053119 | Starter idler gear 19 Z Price: $51.91 |
