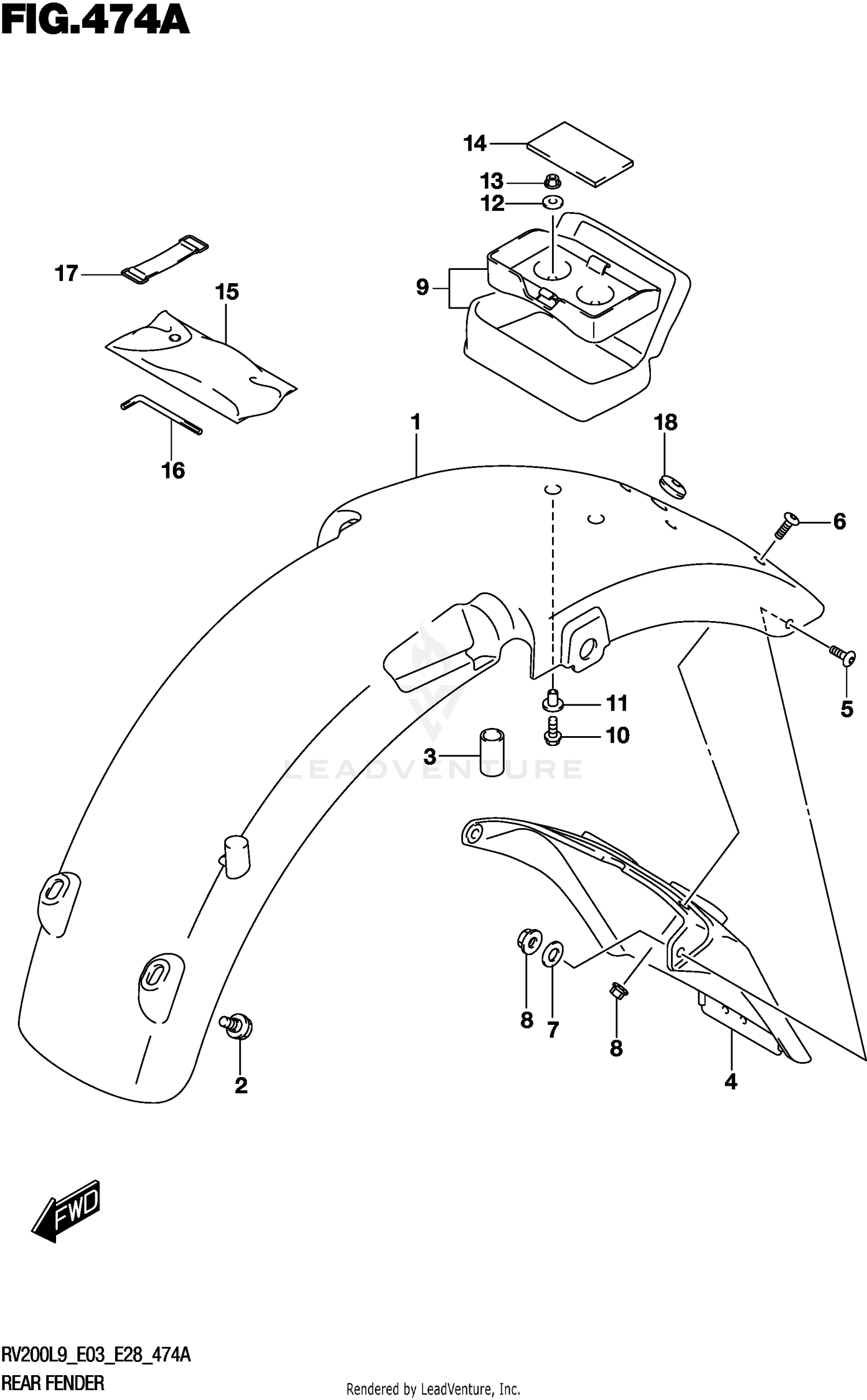

REAR FENDER
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 09111-06107 | BOLT (6X12) Price: $3.02 |
| 3 | 09251-09009 | PLUG This part replaces 09251-09005. Price: $4.14 |
| 4 | 63311-13G10-291 | EXTENSION, RR FENDER (BLACK) Price: $33.66 |
| 5 | 09139-06030 | SCREW (6X16) Price: $4.50 |
| 6 | 09139-06028 | SCREW (6X20) Price: $4.50 |
| 7 | 09160-06153 | WASHER, REAR RR BKT Price: $1.73 |
| 8 | 08319-3106B | NUT Price: $2.99 |
| 9 | 94900-13G10 | BAG ASSY, SEAT TAIL Price: $115.21 |
| 10 | 01550-0620A | BOLT (6X20) Price: $2.37 |
| 11 | 09169-06063 | WASHER (6.3X17X6) Price: $4.16 |
| 12 | 09160-06066 | WASHER (6.5X20X1.6) Price: $2.30 |
| 13 | 08319-3106A | NUT Price: $2.45 |
| 14 | 94915-44E00 | CUSHION RR BAG Price: $13.66 |
| 15 | 09800-21100 | TOOL ASSY This part replaces 09800-21056. Price: $42.85 |
| 16 | 09816-00102 | HEXAGON SPANNER, 3 Price: $3.47 |
| 17 | 09462-00008 | BAND Price: $5.89 |
