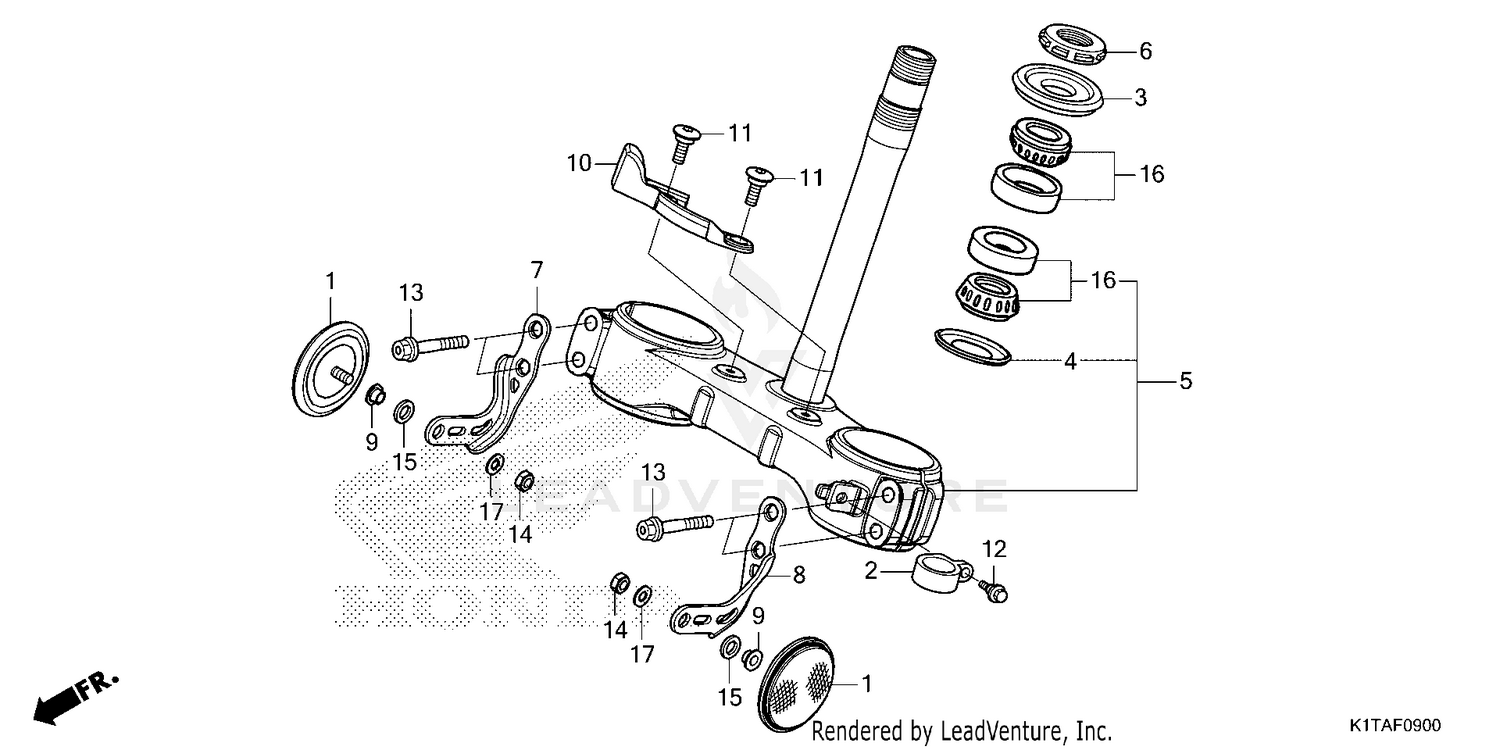

| Ref | Part Number | Description |
|---|
| 1 |
33741-KTG-U01 |
REFLECTOR, FR. REFLEX (AMBER) Price: $7.76 |
| 2 |
45468-KZZ-J80 |
GUIDE, FR. BRAKE HOSE Price: $3.67 |
| 3 |
53214-KZZ-901 |
DUST SEAL, STEERING (UPPER) Price: $7.38 |
| 4 |
53214-MCJ-751 |
DUST SEAL, STEERING HEAD (ARAI) Price: $5.44 |
| 5 |
53219-K1T-E10 |
STEM SUB-ASSY., STEERING Price: $444.91 |
| 6 |
53229-MN1-650 |
THREAD, STEERING HEAD TOP Price: $18.56 |
| 7 |
60114-K1T-A10 |
BRACKET, R. SIDE REFLECTOR Price: $15.15 |
| 8 |
60115-K1T-A10 |
BRACKET, L. SIDE REFLECTOR Price: $15.15 |
| 9 |
61101-K1T-A10 |
COLLAR, REFLECTOR Price: $1.25 |
| 12 |
90113-KZZ-900 |
BOLT, FLANGE (6MM) Price: $0.62 |
| 13 |
90155-KZZ-J00 |
BOLT, FLANGE (8X45) Price: $0.62 |
| 14 |
90301-VK9-A31 |
NUT, U (6MM) Price: $1.02 |
| 15 |
90514-K1T-E10 |
WASHER, RUBBER Price: $1.24 |
| 16 |
91015-425-832 |
BEARING, HEAD PIPE (UPPER) (NACHI) This part replaces 91015-425-831. Price: $37.56 |
| 17 |
94101-06800 |
WASHER, PLAIN (6MM) This part replaces 94101-06000. Price: $0.68 |
