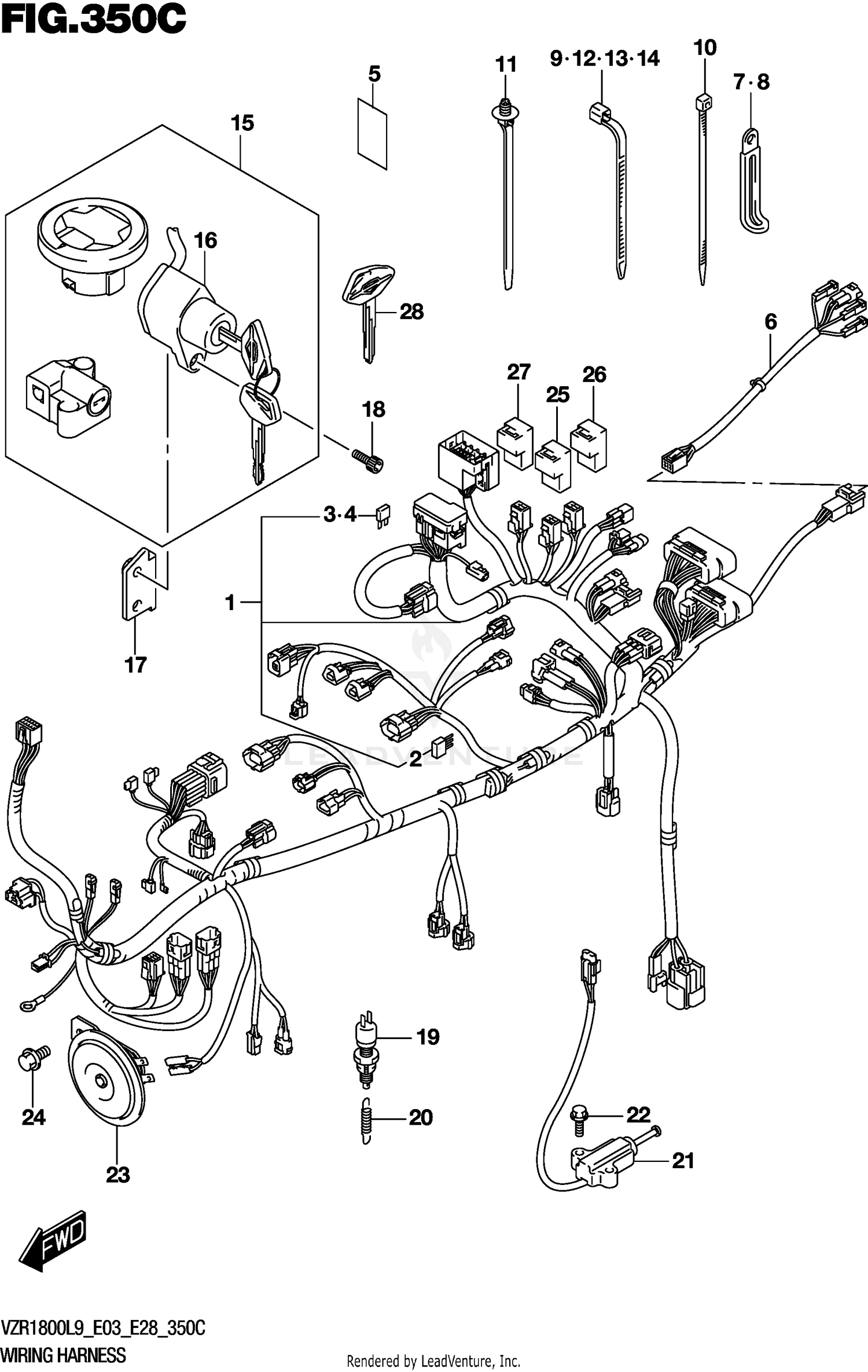

WIRING HARNESS (VZR1800BZL9 E28)
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 36610-48GE0 | HARNESS,WIRING Price: $1,234.88 |
| 5 | 36611-16G00 | TAPE,HARNESS (28X50X0.13) Price: $3.28 |
| 6 | 36858-48G01 | WIRE,RR COMB This part replaces 36858-48G00. Price: $78.13 |
| 7 | 09404-06429 | CLAMP (L:45) Price: $2.20 |
| 8 | 09404-06429 | CLAMP (L:45) Price: $2.20 |
| 9 | 09407-14403 | CLAMP (L:125) Price: $2.72 |
| 10 | 09407-14407 | CLAMP (L:145) Price: $3.70 |
| 11 | 09407-17403 | CLAMP (L:170) Price: $6.24 |
| 12 | 09407-18402 | CLAMP (L:165) Price: $2.68 |
| 13 | 09407-19401 | CLAMP (L:190) Price: $3.22 |
| 14 | 09407-25401 | CLAMP (L:235) Price: $5.68 |
| 15 | 37000-49893 | LOCK SET This part replaces 37000-49890. Price: $315.50 |
| 17 | 37119-48G00 | BRACKET,IGNITION SWITCH Price: $9.66 |
| 18 | 07130-0616B | BOLT This part replaces 07130-0616A. Price: $2.87 |
| 19 | 37740-24A00 | SWITCH ASSY,STOP LAMP Price: $22.49 |
| 20 | 09443-06077 | SPRING Price: $5.89 |
| 21 | 37840-25D02 | SWITCH ASSY,SIDE STAND This part replaces 37840-25D00. Price: $65.20 |
| 22 | 01550-0625A | BOLT (6X25) Price: $2.37 |
| 23 | 38500-48G01 | HORN ASSY Price: $94.73 |
| 24 | 01550-0812A | BOLT Price: $2.79 |
| 25 | 38740-24X50 | RELAY ASSY Price: $55.84 |
| 26 | 38740-24X50 | RELAY ASSY Price: $55.84 |
| 27 | 38740-24A00 | RELAY ASSY Price: $68.37 |
