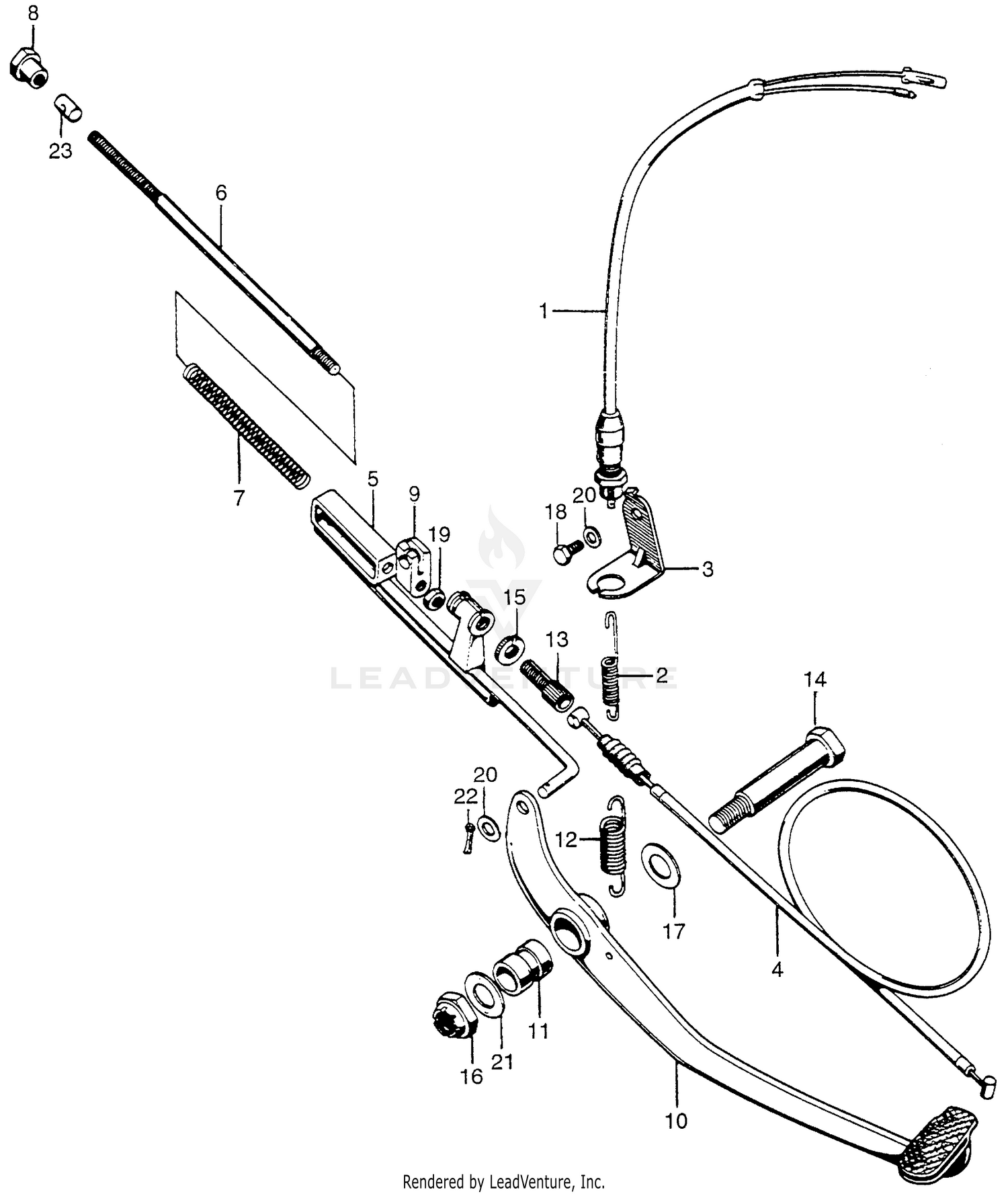

| Ref | Part Number | Description |
|---|
| 1 |
35350-MA1-405 |
SWITCH ASSY., RR. STOP Price: $22.02 |
| 2 |
35357-045-720 |
SPRING, STOP SWITCH (NOT AVAILABLE) Price: $2.52 |
| 3 |
35358-045-720 |
BRACKET, STOP SWITCH (NOT AVAILABLE) Price: $10.26 |
| 4 |
43450-045-010 |
CABLE, RR. BRAKE (NOT AVAILABLE) Price: $65.55 |
| 5 |
43451-045-671 |
ROD A, RR. BRAKE (NOT AVAILABLE) Price: $32.20 |
| 6 |
43452-045-671 |
ROD B, RR. BRAKE (NOT AVAILABLE) Price: $11.32 |
| 7 |
95014-73100 |
SPRING A, BRAKE ROD Price: $1.47 |
| 9 |
43473-045-670 |
JOINT, RR. BRAKE ROD (NOT AVAILABLE) Price: $20.92 |
| 10 |
46500-045-671 |
PEDAL, BRAKE (NOT AVAILABLE) Price: $115.31 |
| 11 |
46506-045-720 |
COLLAR, BRAKE PEDAL PIVOT (NOT AVAILABLE) Price: $3.71 |
| 12 |
46514-045-720 |
SPRING, BRAKE PEDAL (NOT AVAILABLE) Price: $11.81 |
| 13 |
53192-268-000 |
BOLT, CABLE ADJUSTING Price: $8.20 |
| 14 |
90128-045-720 |
BOLT, RR. BRAKE PIVOT (NOT AVAILABLE) Price: $23.12 |
| 15 |
90321-315-670 |
NUT, FIXING This part replaces 90321-268-000. Price: $9.18 |
| 16 |
90353-045-000 |
NUT, SELF-LOCK (12MM) Price: $7.53 |
| 17 |
90526-268-000 |
WASHER, RR. SWINGARM PIVOT BOLT Price: $3.89 |
| 18 |
92101-06012-0A |
BOLT, HEX. (6X12) This part replaces 92000-06012. Price: $1.48 |
| 19 |
94001-06200-0S |
NUT, HEX. (6MM) This part replaces 90310-KA3-711. Price: $1.37 |
| 20 |
94101-06800 |
WASHER, PLAIN (6MM) This part replaces 94101-06000. Price: $0.68 |
| 21 |
94101-12000 |
WASHER, PLAIN (12MM) Price: $1.28 |
| 22 |
94201-20150 |
PIN, COTTER (2.0X15) Price: $1.08 |
| 23 |
95015-31001 |
JOINT A, BRAKE ARM This part replaces 95015-31000. Price: $1.68 |
