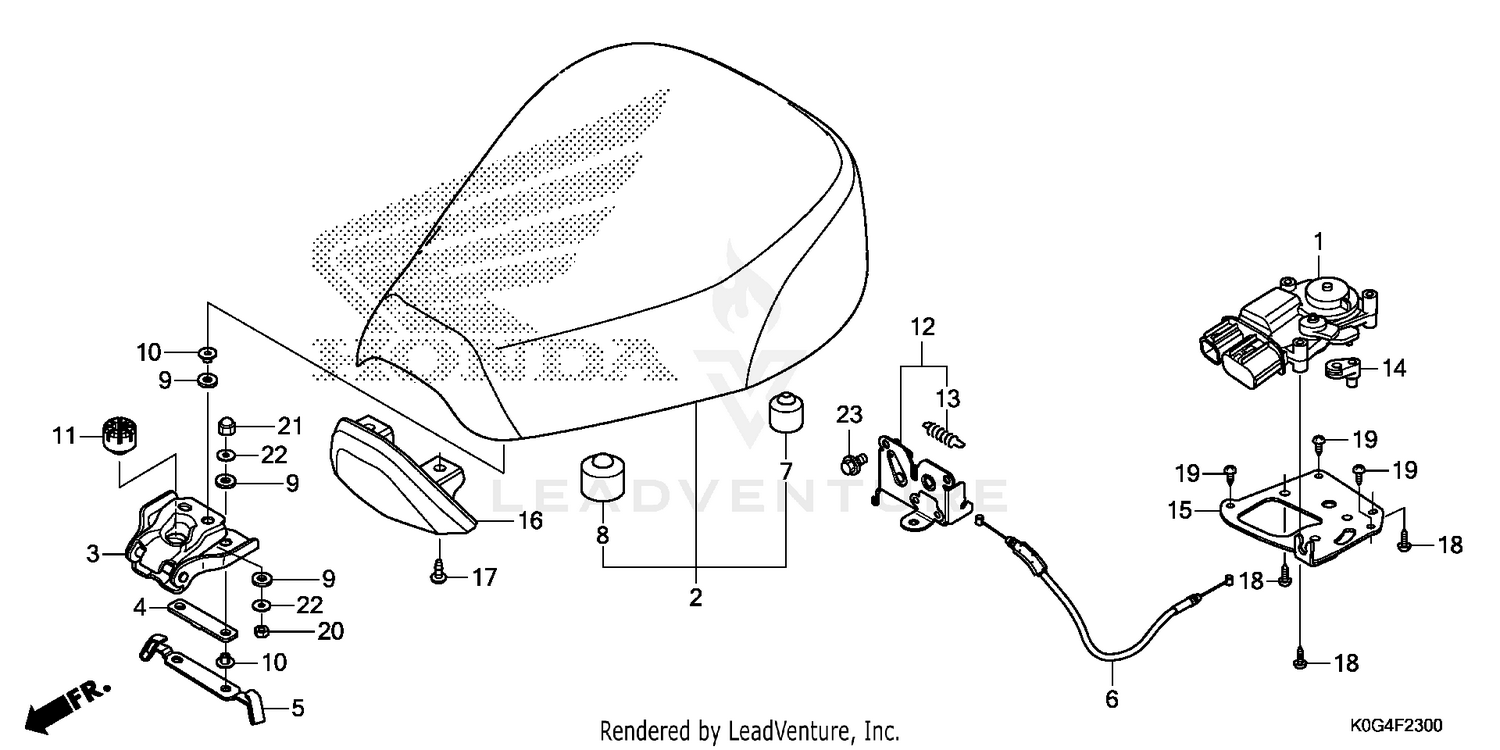

| Ref | Part Number | Description |
|---|
| 1 |
36520-KSV-J03 |
ACTUATOR ASSY. Price: $106.02 |
| 2 |
77100-K0G-902ZA |
SEAT COMP (TYPE2) This part replaces 77100-K0G-901ZA. Price: $189.51 |
| 3 |
77110-K0G-900 |
HINGE, SEAT Price: $14.80 |
| 4 |
77116-K0G-900 |
RUBBER, CUSHION Price: $3.22 |
| 5 |
77117-K0G-900 |
HOOK, HELMET Price: $7.96 |
| 6 |
77156-K0G-901 |
CABLE, SEAT LOCK Price: $6.38 |
| 7 |
77206-KPK-900 |
RUBBER, SEAT CUSHION Price: $1.60 |
| 8 |
77206-KPP-T00 |
RUBBER, SEAT CUSHION Price: $4.20 |
| 9 |
77207-GN5-910 |
RUBBER B, SEAT MOUNTING Price: $2.84 |
| 10 |
77208-KPW-900 |
COLLAR, SEAT MOUNTING Price: $1.47 |
| 11 |
77215-KW7-900 |
RUBBER C, SEAT SETTING Price: $6.64 |
| 12 |
77230-K0G-900 |
CATCH, SEAT Price: $15.49 |
| 13 |
77234-GGZ-J00 |
SPRING, SEAT LOCK Price: $0.35 |
| 14 |
77242-KSV-J00 |
JOINT, CABLE Price: $6.67 |
| 15 |
77250-K0G-900 |
STAY, ACTUATOR Price: $9.29 |
| 16 |
83405-K0G-900 |
COVER, SEAT HINGE Price: $21.27 |
| 17 |
93903-24310 |
SCREW, TAPPING (4X12) Price: $0.95 |
| 18 |
93903-34510 |
SCREW, TAPPING (4X20) (NOT AVAILABLE) Price: $0.63 |
| 19 |
93913-14220 |
SCREW, TAPPING (4X12) Price: $0.95 |
| 20 |
94001-06200-0S |
NUT, HEX. (6MM) This part replaces 94001-06000-0S. Price: $1.37 |
| 21 |
94021-06020 |
NUT, CAP (6MM) This part replaces 94021-06000-0S. Price: $1.90 |
| 22 |
94103-06000 |
WASHER, PLAIN (6MM) Price: $1.03 |
