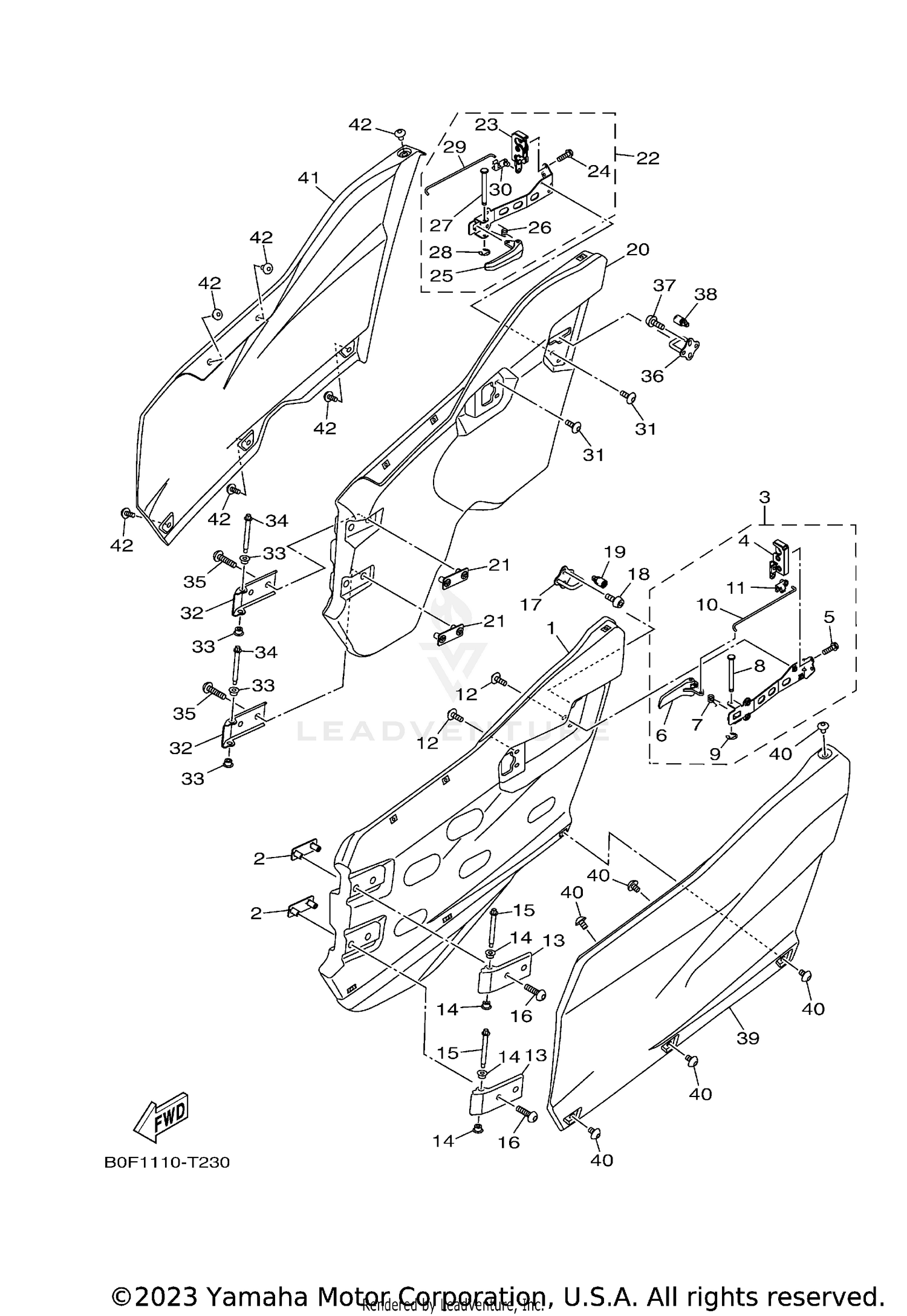

| Ref | Part Number | Description |
|---|
| 1 |
2HC-K8557-01-00 |
PNL., DOOR FR. LH Price: $155.99 |
| 2 |
2HC-F1736-00-00 |
NUT,PLATE Price: $10.49 |
| 3 |
2HC-K7171-00-00 |
BODY, LATCH 1 Price: $56.99 |
| 4 |
2HC-F16A0-00-00 |
LOCK ASSY Price: $32.99 |
| 5 |
95817-06020-00 |
BOLT, FLANGE This part replaces 95812-06020-00. Price: $3.50 |
| 6 |
2HC-F17N1-00-00 |
LEVER, LATCH 1 Price: $8.49 |
| 7 |
2HC-F1742-00-00 |
SPRING Price: $3.20 |
| 8 |
90249-05801-00 |
PIN Price: $2.55 |
| 9 |
99080-04600-00 |
CLIP This part replaces 99002-04600-00. Price: $1.99 |
| 10 |
2HC-F7247-00-00 |
ROD 1 Price: $2.40 |
| 11 |
2HC-F2805-00-00 |
CLIP, CABLE Price: $0.80 |
| 12 |
90111-06086-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 13 |
2HC-K8554-00-00 |
STAY, FR. DOOR 1 Price: $7.49 |
| 14 |
2HC-F1748-00-00 |
COLLAR Price: $2.70 |
| 15 |
90109-068A8-00 |
BOLT Price: $2.95 |
| 16 |
90109-08856-00 |
BOLT Price: $3.00 |
| 17 |
2HC-F178J-00-00 |
LOCK Price: $9.49 |
| 18 |
92012-08012-00 |
BOLT, BUTTON HEAD Price: $9.49 |
| 19 |
2MB-F8378-00-00 |
PAD Price: $2.70 |
| 20 |
2HC-K8558-01-00 |
PNL., DOOR FR. RH Price: $152.99 |
| 21 |
2HC-F1736-00-00 |
NUT,PLATE Price: $10.49 |
| 22 |
2HC-K7172-00-00 |
BODY, LATCH 2 Price: $56.99 |
| 23 |
2HC-F16B0-00-00 |
LOCK ASSY 2 Price: $33.99 |
| 24 |
95817-06020-00 |
BOLT, FLANGE This part replaces 95812-06020-00. Price: $3.50 |
| 25 |
2HC-F17N1-00-00 |
LEVER, LATCH 1 Price: $8.49 |
| 26 |
2HC-F1742-00-00 |
SPRING Price: $3.20 |
| 27 |
90249-05801-00 |
PIN Price: $2.55 |
| 28 |
99080-04600-00 |
CLIP This part replaces 99002-04600-00. Price: $1.99 |
| 29 |
2HC-F7248-00-00 |
ROD 2 Price: $2.40 |
| 30 |
2HC-F2805-00-00 |
CLIP, CABLE Price: $0.80 |
| 31 |
90111-06086-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 32 |
2HC-K8554-00-00 |
STAY, FR. DOOR 1 Price: $7.49 |
| 33 |
2HC-F1748-00-00 |
COLLAR Price: $2.70 |
| 34 |
90109-068A8-00 |
BOLT Price: $2.95 |
| 35 |
90109-08856-00 |
BOLT Price: $3.00 |
| 36 |
2HC-F178J-00-00 |
LOCK Price: $9.49 |
| 37 |
92012-08012-00 |
BOLT, BUTTON HEAD Price: $9.49 |
| 38 |
2MB-F8378-00-00 |
PAD Price: $2.70 |
| 39 |
2HC-F1711-50-00 |
COVER, SIDE 1 Price: $191.99 |
| 40 |
90111-06181-00 |
BOLT,HEX. SOCKET BUT Price: $1.50 |
| 41 |
2HC-F1721-50-00 |
COVER, SIDE 2 Price: $280.99 |
