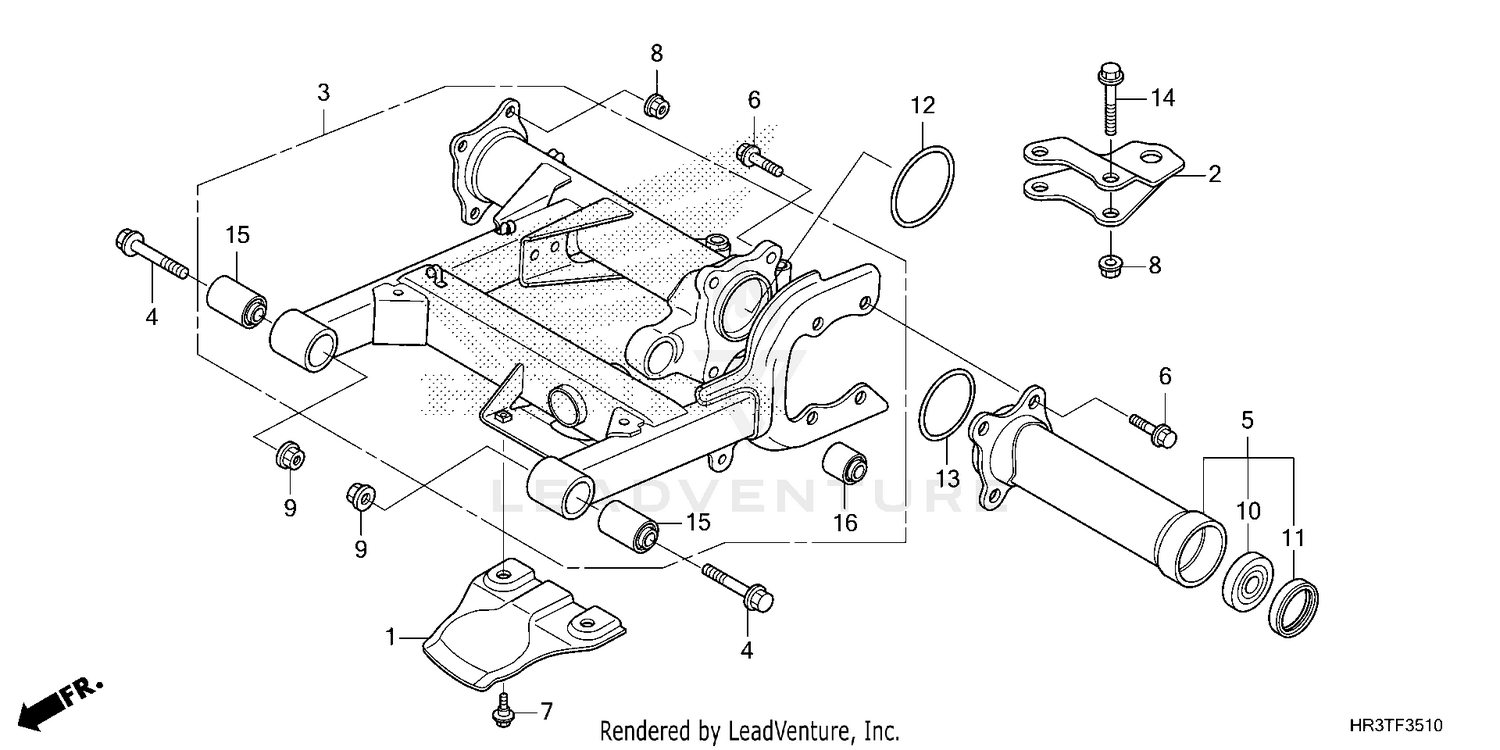

| Ref | Part Number | Description |
|---|
| 1 |
50359-HR0-F00 |
GUARD, YOKE JOINT Price: $6.51 |
| 2 |
50810-HN5-670 |
HITCH, TRAILER Price: $87.71 |
| 3 |
52100-HR3-A20 |
SWINGARM ASSY., RR. Price: $232.78 |
| 4 |
52101-HR3-A20 |
BOLT, SWINGARM PIVOT (12X70) Price: $2.13 |
| 5 |
52300-HR3-W50 |
PIPE ASSY., L. HOUSING Price: $133.07 |
| 6 |
90101-HR3-A20 |
BOLT, FLANGE (10X44) Price: $1.35 |
| 7 |
90111-KT1-780 |
BOLT, FLANGE (6MM) Price: $17.62 |
| 8 |
90305-HC0-770 |
NUT, SELF-LOCK (10MM) Price: $3.76 |
| 9 |
90305-HC4-000 |
NUT, SELF-LOCK (12MM) Price: $5.27 |
| 10 |
91051-HR3-W51 |
BEARING, RADIAL BALL (32X58X13UU) (ZHEJIANG) Price: $6.38 |
| 11 |
91255-HR0-F01 |
OIL SEAL (42X58X10) Price: $21.05 |
| 12 |
91320-HM7-702 |
O-RING (75X3.2) (NOK) Price: $3.38 |
| 13 |
91351-881-000 |
O-RING (66MM) Price: $5.78 |
| 14 |
90151-HC5-000 |
BOLT, FLANGE (10X62) This part replaces 95801-10065-00. Price: $9.74 |
| 15 |
52107-HR3-A21 |
BUSH, SWINGARM Price: $14.40 |
