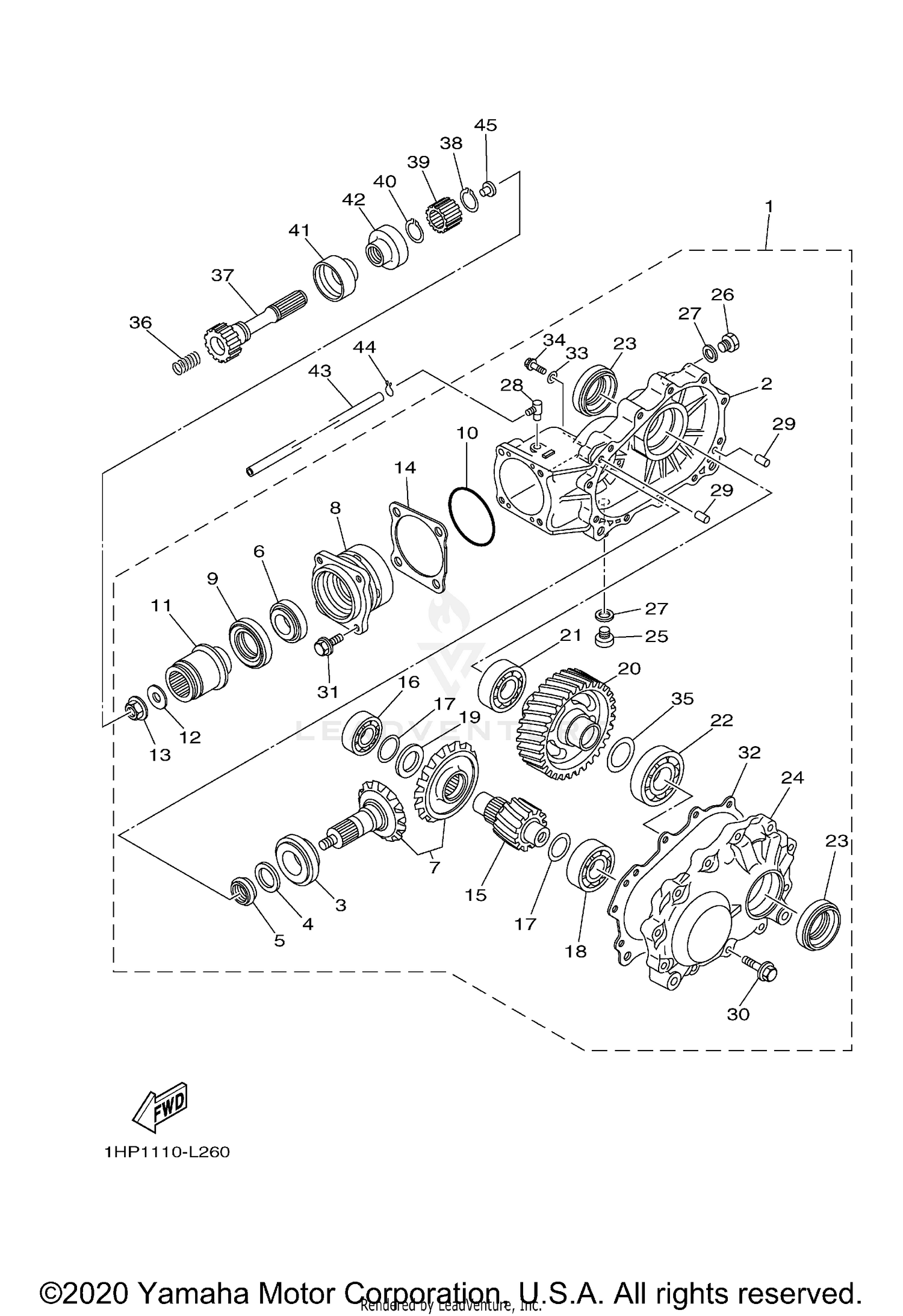

| Ref | Part Number | Description |
|---|
| 1 |
1HP-46101-00-00 |
REAR AXLE GEAR CASE ASSY Price: $1,461.99 |
| 2 |
3B4-46151-00-00 |
HOUSING, DRIVE SHAFT Price: $249.99 |
| 3 |
93332-00046-00 |
BEARING Price: $58.99 |
| 4 |
90201-25634-00 |
WASHER, PLATE Price: $12.49 |
| 5 |
3B4-46129-00-00 |
SPACER, EXPANSION Price: $8.49 |
| 6 |
93332-00053-00 |
BEARING Price: $69.99 |
| 7 |
3B4-461A0-00-00 |
RING GEAR SET Price: $473.99 |
| 8 |
3B4-46144-00-00 |
HOUSING, PINION BEARING Price: $122.99 |
| 9 |
93102-35380-00 |
OIL SEAL Price: $24.99 |
| 10 |
93210-626A7-00 |
O-RING Price: $16.49 |
| 11 |
3B4-46126-10-00 |
COUPLING Price: $104.99 |
| 12 |
90201-12029-00 |
WASHER, PLATE Price: $8.49 |
| 13 |
90179-12325-00 |
NUT This part replaces 90179-12005-00. Price: $6.49 |
| 15 |
3B4-46316-00-00 |
GEAR, PINION 1 Price: $142.99 |
| 16 |
93306-205U1-00 |
BEARING This part replaces 93306-205U0-00. Price: $24.99 |
| 18 |
93306-30560-00 |
BEARING This part replaces 93306-30534-00. Price: $85.99 |
| 20 |
3B4-46326-01-00 |
GEAR, WHEEL 1 Price: $214.99 |
| 21 |
93306-00702-00 |
BEARING This part replaces 93306-00704-00. Price: $66.99 |
| 22 |
93306-207U0-00 |
BEARING Price: $37.99 |
| 23 |
93102-35380-00 |
OIL SEAL Price: $24.99 |
| 24 |
3B4-46152-00-00 |
HOUSING, BEARING Price: $103.99 |
| 25 |
90340-14002-00 |
PLUG, STRAIGHT SCREW Price: $22.99 |
| 26 |
90340-14029-00 |
PLUG, STRAIGHT SCREW Price: $4.60 |
| 27 |
214-11198-01-00 |
GASKET Price: $3.17 |
| 28 |
5UG-15371-00-00 |
BREATHER Price: $44.99 |
| 29 |
99530-10114-00 |
PIN, DOWEL This part replaces 99530-10014-00. Price: $2.65 |
| 30 |
95822-08035-00 |
BOLT, FLANGE Price: $4.50 |
| 31 |
95817-08025-00 |
BOLT, FLANGE This part replaces 95822-08025-00. Price: $9.49 |
| 32 |
3B4-4631A-01-00 |
GSKT., CASE Price: $15.49 |
| 33 |
90201-08087-00 |
WASHER, PLATE Price: $3.95 |
| 34 |
95022-08012-00 |
BOLT, FLANGE Price: $13.49 |
| 36 |
90501-20361-00 |
SPRING, COMPRESSION Price: $14.49 |
| 37 |
1HP-G6172-00-00 |
SHAFT, DRIVE Price: $63.99 |
| 38 |
99009-19400-00 |
CIRCLIP Price: $9.49 |
| 39 |
5KM-46126-00-00 |
COUPLING Price: $71.99 |
| 40 |
93410-22039-00 |
CIRCLIP Price: $9.49 |
| 41 |
5KM-46137-00-00 |
SEAL 2 Price: $17.99 |
| 42 |
5KM-46136-00-00 |
SEAL 1 Price: $9.49 |
| 43 |
90445-070G6-00 |
HOSE (L1700) This part replaces 90445-074F6-00. Price: $44.99 |
| 44 |
90467-07029-00 |
CLIP Price: $2.60 |
