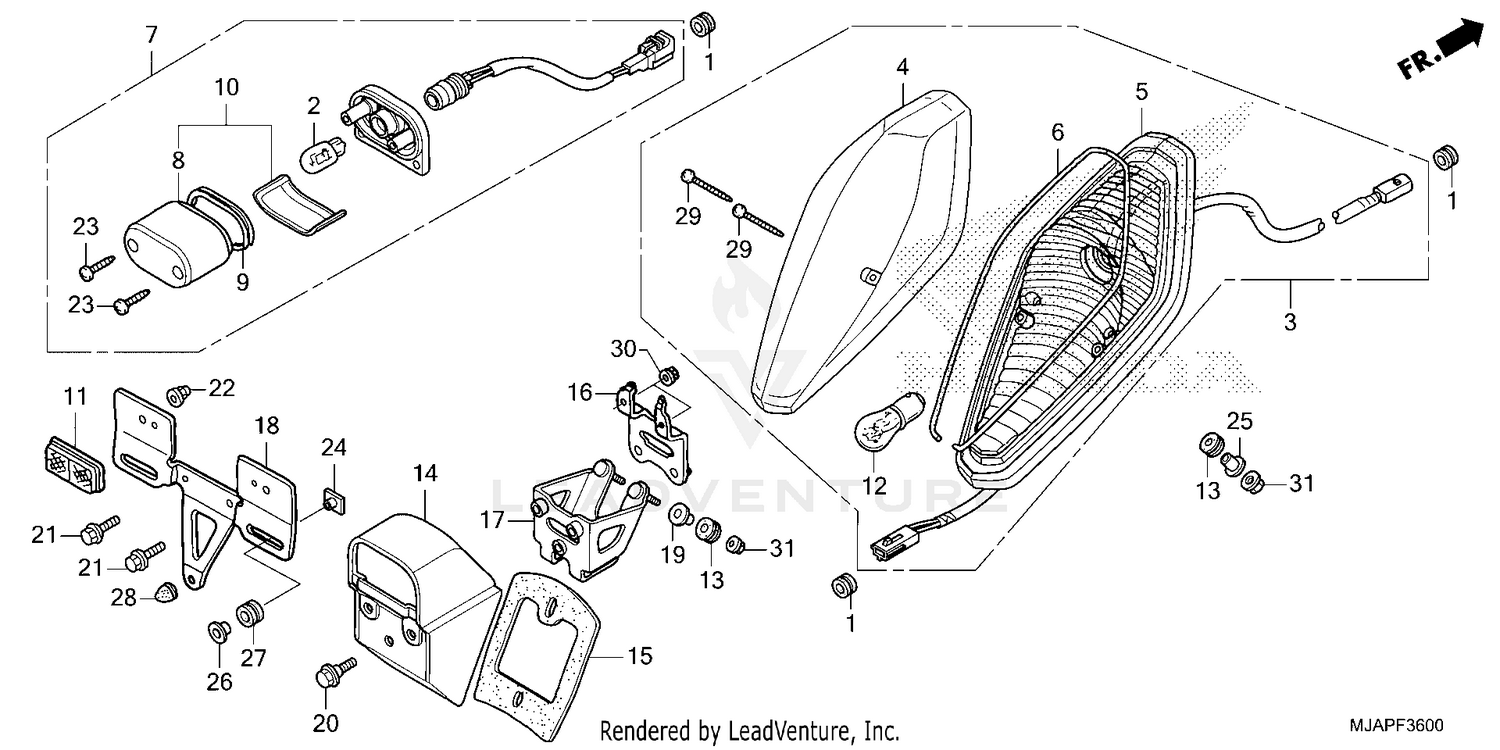

| Ref | Part Number | Description |
|---|
| 1 |
11344-MB0-000 |
GROMMET A, RR. COVER (8X16X6.6) (FR.) Price: $3.29 |
| 2 |
33301-SA0-741 |
BULB (12V 5W) (STANLEY) Price: $4.78 |
| 3 |
33701-MEG-671 |
TAILLIGHT UNIT (12V 21/5W) Price: $128.40 |
| 4 |
33702-MEG-305 |
LENS, TAILLIGHT (COO) This part replaces 33702-MEG-671. Price: $38.20 |
| 5 |
33705-MEG-671 |
BASE, TAILLIGHT Price: $58.40 |
| 6 |
33709-MEG-671 |
GASKET, TAILLIGHT Price: $7.24 |
| 7 |
33720-MEG-671 |
LIGHT ASSY., LICENSE (12V 5W) Price: $101.65 |
| 8 |
33727-MEG-671 |
COVER, LICENSE Price: $22.93 |
| 9 |
33729-MEG-003 |
GASKET, LENS Price: $7.44 |
| 10 |
33731-MEG-671 |
BASE, LICENSE LIGHT Price: $18.89 |
| 11 |
33742-MCV-N11 |
REFLECTOR, REFLEX Price: $30.04 |
| 12 |
34906-447-711 |
BULB, TAIL/STOP LIGHT (12V 21/5W) (STANLEY) (FR.) Price: $11.36 |
| 13 |
80101-310-000 |
RUBBER, RR. FENDER CUSHION Price: $2.33 |
| 14 |
80120-MEG-000 |
BRACKET, LICENSE LIGHT Price: $55.44 |
| 15 |
80126-MEG-000 |
RUBBER, LICENSE LIGHT CUSHION Price: $6.09 |
| 16 |
80127-MEG-000 |
STAY, LICENSE LIGHT Price: $7.31 |
| 17 |
80128-MEG-000 |
STAY, LICENSE LIGHT BASE Price: $24.85 |
| 18 |
84701-MEG-670 |
BRACKET, NUMBER PLATE Price: $38.64 |
| 19 |
84706-163-670 |
COLLAR, TAILLIGHT MOUNTING Price: $5.13 |
| 20 |
90005-GHB-610 |
BOLT, FLANGE (6X12) Price: $3.02 |
| 21 |
90005-GHB-660 |
BOLT, FLANGE (6X22) (NSHF) Price: $2.33 |
| 22 |
90167-SA0-980 |
NUT, FLANGE CAP (5MM) Price: $7.02 |
| 23 |
90301-MEG-003 |
SCREW, SPECIAL (4X25) Price: $1.76 |
| 24 |
90303-HA0-680 |
NUT, SPECIAL (6X7) Price: $4.82 |
| 25 |
90501-MJ6-000 |
COLLAR, HEADLIGHT BRACKET Price: $5.62 |
| 26 |
90505-MA6-000 |
WASHER (6.5X5.5) Price: $3.53 |
| 27 |
90852-898-000 |
RUBBER, CONTROL BOX Price: $5.06 |
| 28 |
90899-422-610 |
PLUG, CONE TYPE Price: $2.27 |
| 29 |
93901-347G0 |
SCREW, TAPPING (4X30) Price: $2.53 |
| 30 |
94050-04000 |
NUT, FLANGE (4MM) Price: $1.28 |
