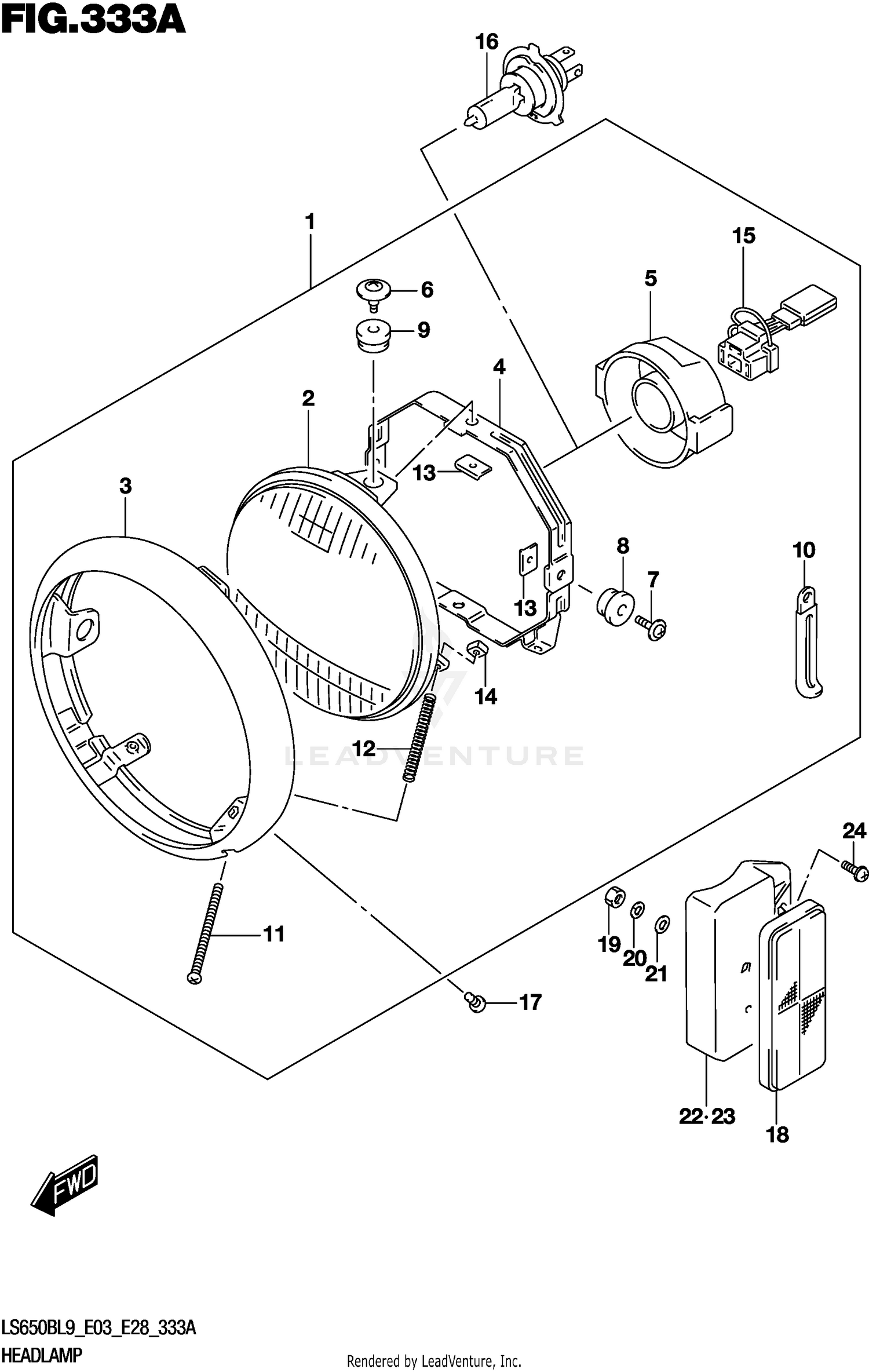

HEADLAMP
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 35100-38A62-999 | HEADLAMP ASSY This part replaces 35100-38A61-999. Price: $296.72 |
| 10 | 09404-06039 | CLAMP This part replaces 09404-06432. Price: $2.09 |
| 12 | 35154-31300 | SPRING Price: $4.70 |
| 18 | 35950-43431 | REFLEX REFLECTOR ASSY Price: $19.27 |
| 19 | 08310-0005A | NUT This part replaces 08310-0005B. Price: $2.22 |
| 20 | 08321-0105B | WASHER,LOCK Price: $2.99 |
| 21 | 09160-05037 | WASHER (5.5X16X1.2) Price: $1.81 |
| 22 | 35956-24B00 | BRACKET Price: $6.03 |
| 23 | 35957-24B00 | BRACKET Price: $5.88 |
