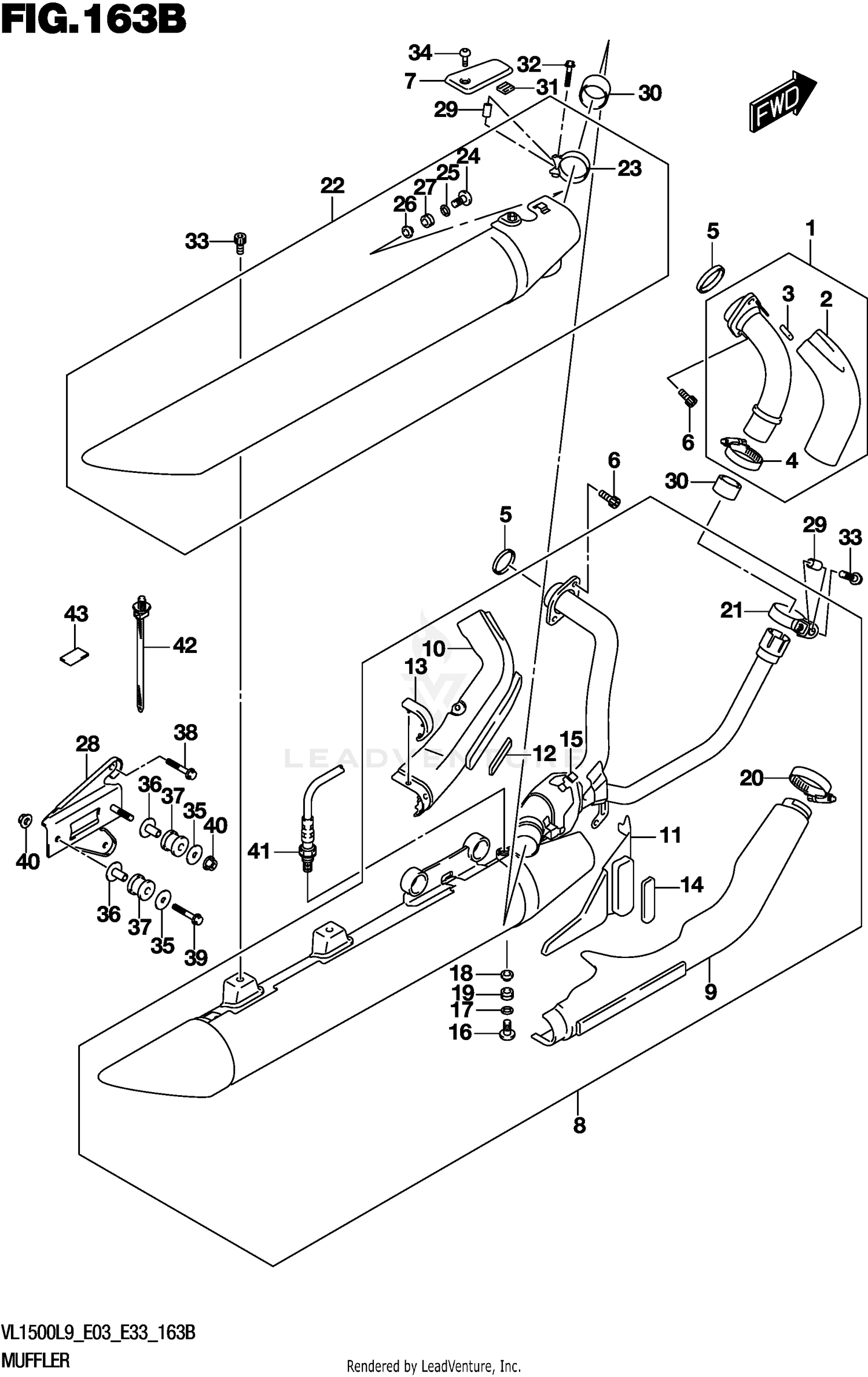

MUFFLER (VL1500BL9 E33)
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 14150-40H11 | PIPE Price: $246.75 |
| 3 | 14795-10FA0 | GROMMET Price: $7.10 |
| 6 | 09106-08175 | BOLT (8X30) Price: $4.31 |
| 7 | 14260-06J10 | COVER Price: $120.47 |
| 8 | 14305-06J21 | MUFFLER Price: $2,822.78 |
| 12 | 14780-48G10 | PROTECTOR,UPR Price: $45.37 |
| 14 | 14790-48G20 | PROTECTOR,LOW Price: $42.59 |
| 15 | 14795-10FA0 | GROMMET Price: $7.10 |
| 16 | 09139-06028 | SCREW (6X20) Price: $4.50 |
| 18 | 09180-06331 | SPACER (6.2X8.4X10.9) Price: $5.01 |
| 19 | 09320-08070 | CUSHION Price: $12.50 |
| 22 | 14340-06J21 | BODY Price: $1,457.87 |
| 24 | 09139-06028 | SCREW (6X20) Price: $4.50 |
| 26 | 09180-06331 | SPACER (6.2X8.4X10.9) Price: $5.01 |
| 27 | 09320-08070 | CUSHION Price: $12.50 |
| 28 | 14410-40H00 | BRACKET Price: $79.91 |
| 29 | 14458-45G10 | SPACER Price: $8.86 |
| 30 | 14771-40H00 | CONNECTOR Price: $39.48 |
| 31 | 14795-10FA0 | GROMMET Price: $7.10 |
| 33 | 09106-08107 | BOLT (8X20) Price: $3.31 |
| 34 | 09139-06172 | SCREW (6X10) Price: $3.70 |
| 35 | 09160-08146 | WASHER (8.5X33X1.5) Price: $3.02 |
| 36 | 09180-08156 | SPACER (8.6X12X25.5) Price: $8.28 |
| 37 | 09320-12049 | CUSHION Price: $13.00 |
| 38 | 01550-0816A | BOLT Price: $2.79 |
| 39 | 01550-0845A | BOLT Price: $3.89 |
| 40 | 08361-2508A | NUT Price: $2.37 |
| 41 | 18213-48G00 | SENSOR Price: $380.53 |
| 42 | 09407-17403 | CLAMP (L:170) Price: $6.24 |
